TOSEVEN E-Bike Motors Catalog 2026

TOSEVEN Powering Every Ride – From Conversion to Mid-Drive Excellence E-BIKE DISPLAY (Handlebar Mount) Clear Readout Rugged & Waterproof HUB MOTORS MID-DRIVE SYSTEMS (T-SERIES & PRO) High Torque Integrated Design GLOBAL CATALOG | OEM SOLUTIONS | CONVERSION KITS & TECH GUIDE 2026–2027 TOSEVEN

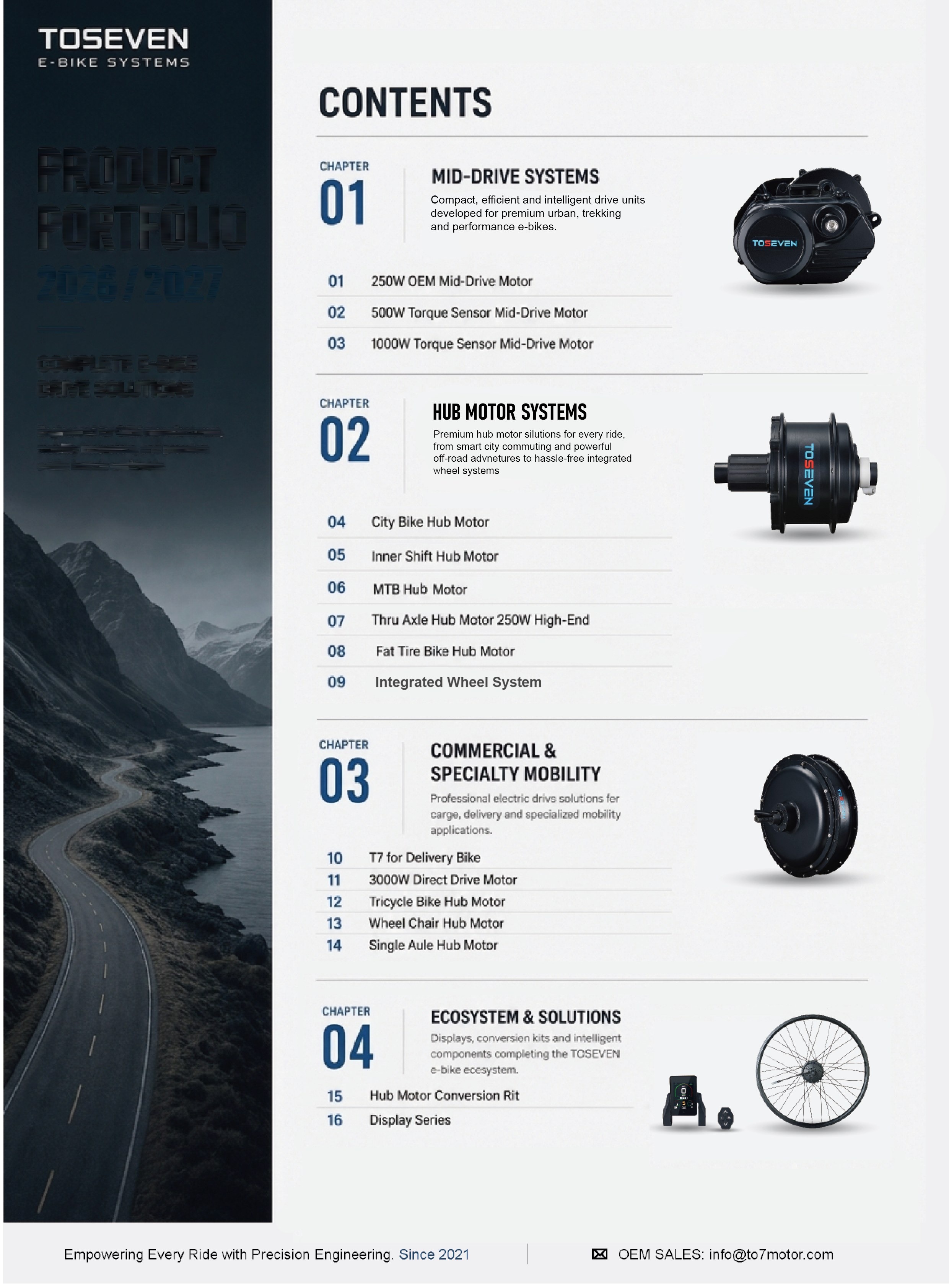

TOSEVEN E-BIKE SYSTEMS CONTENTS

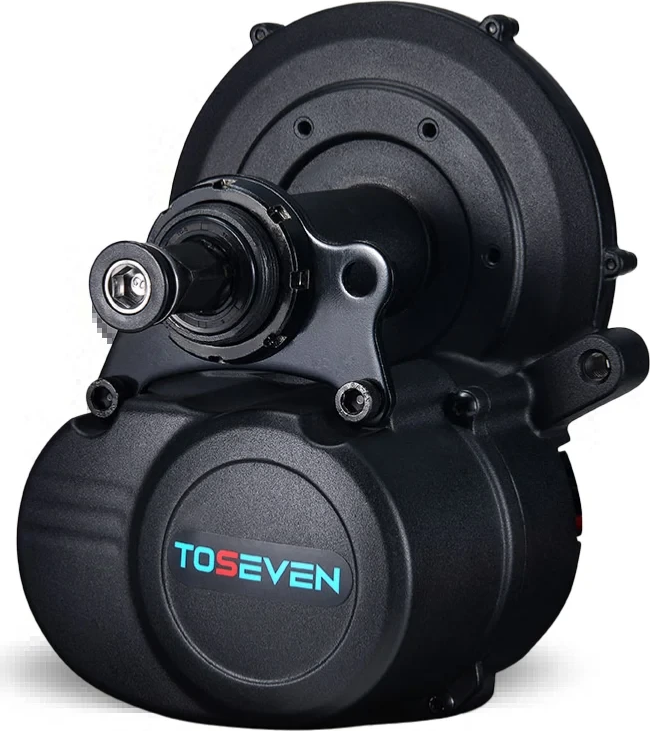

Chapter 01 Mid-Drive Systems Compact, efficient and intelligent drive units developed for premium urban, trekking and performance e-bikes. 01 250W OEM Mid-Drive Motor 02 500W Torque Sensor Mid-Drive Motor 03 1000W Torque Sensor Mid-Drive Motor Chapter 02 Hub Motor Systems Premium hub motor solutions for every ride, from smart city commuting and powerful off-road adventures to hassle-free integrated wheel systems 04 City Bike Hub Motor 05 Inner Shift Hub Motor 06 MTB Hub Motor 07 Thru Axle Hub Motor 250W High-End 08 Fat Tire Bike Hub Motor 09 Integrated Wheel System Chapter 03 Commercial & Specialty Mobility Professional electric drive solutions for cargo, delivery and specialized mobility applications. 10 T7 for Delivery Bike 11 3000W Direct Drive Motor 12 Tricycle Bike Hub Motor 13 Wheel Chair Hub Motor 14 Single Axle Hub Motor Chapter 04 Ecosystem & Solutions Displays, conversion kits and intelligent components completing the TOSEVEN e-bike ecosystem. 15 Hub Motor Conversion Kit 16 Display Series Product Portfolio 2026 / 2027

Complete E-Bike Drive Solutions Engineered for OEM manufacturers, mobility innovators, and premium e-bike brands worldwide.

ABOUT US WHERE ENGINEERING MEETS ELECTRIC FREEDOM Founded in 2021 and headquartered in Suzhou, China, Toseven Motor operates a 15,000+ m² manufacturing facility staffed by 200+ dedicated professionals, including 35+ R&D engineers, precision technicians, and quality specialists. Trusted by 300+ brands across 60+ countries, we turn visionary mobility concepts into reliable, road-ready reality. Our MissionTo engineer high-performanceelectric drive systems thatempower a cleaner, smarter,and more connected world.15,000+m2ManufacturingFacility200+DedicatedProfessionals35+R&DEngineers60+CountriesServed Engineered To Empower The Future We design and manufacture high-performance e-bike motors and drive systems with a relentless focus on innovation, precision, and real-world performance. Global Presence Supporting OEM partners worldwide through international exhibitions. Our International Quality Certifications ISO 9001 CE EMC UK CA UL CQC FCC RoHS WEEE TÜV SÜD EMC Test Safety Test Global

Rated Power	250-350W	Max. Torque	90 Nm
Max. Speed	140RPM	Voltage Options	36V / 48V
Reduction Ratio	42.7	Weight	3.5 kg
Protection	IP65	Sensor	Torque Sensor
Chainring Support	38T-54T	Operating Range	-20°C to 50°C
Humidity	≤ 95%	Pressure	86 KPa - 106 KPa
Axle Type	Square (DM03) / Spline (DM03H)

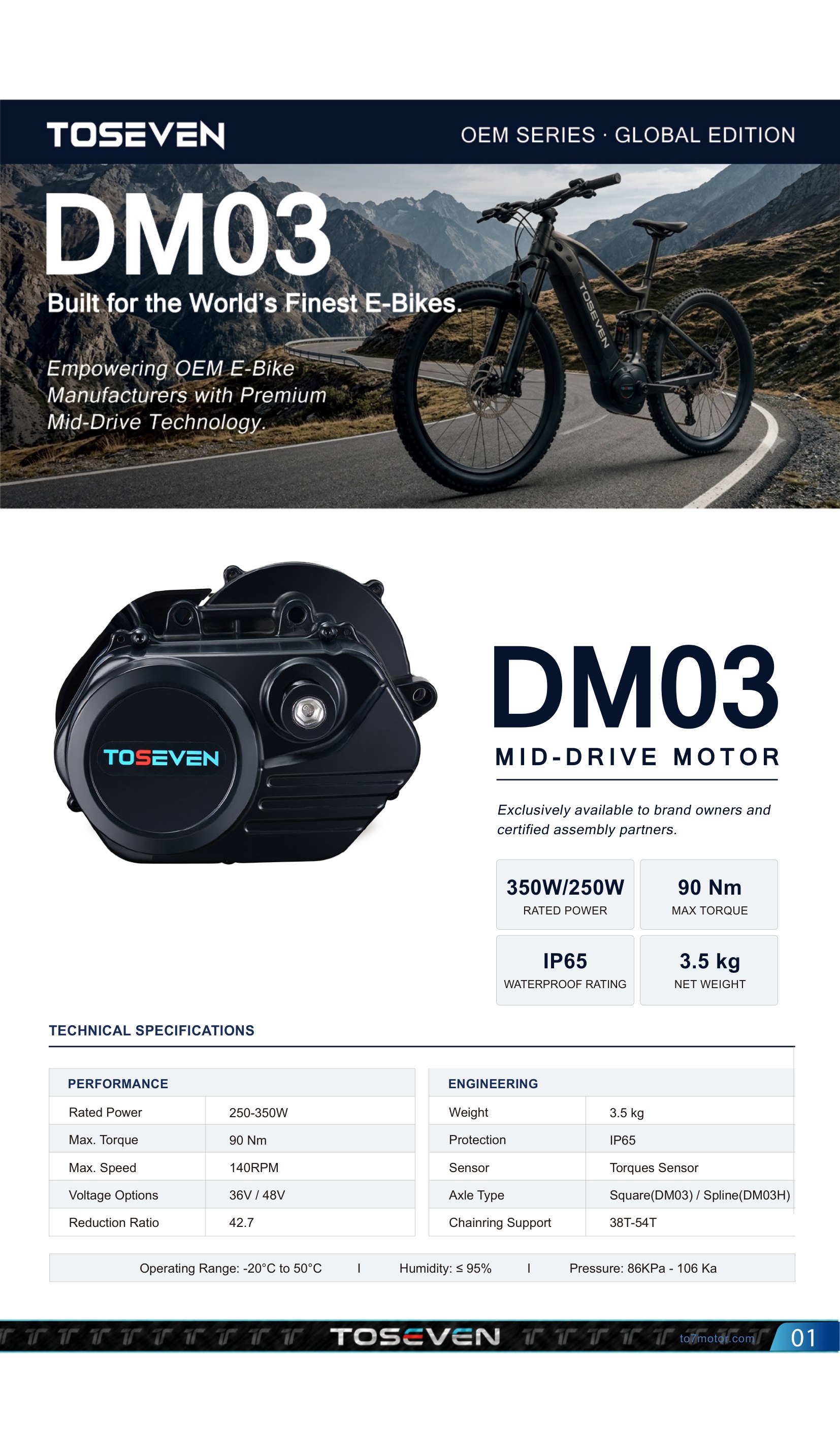

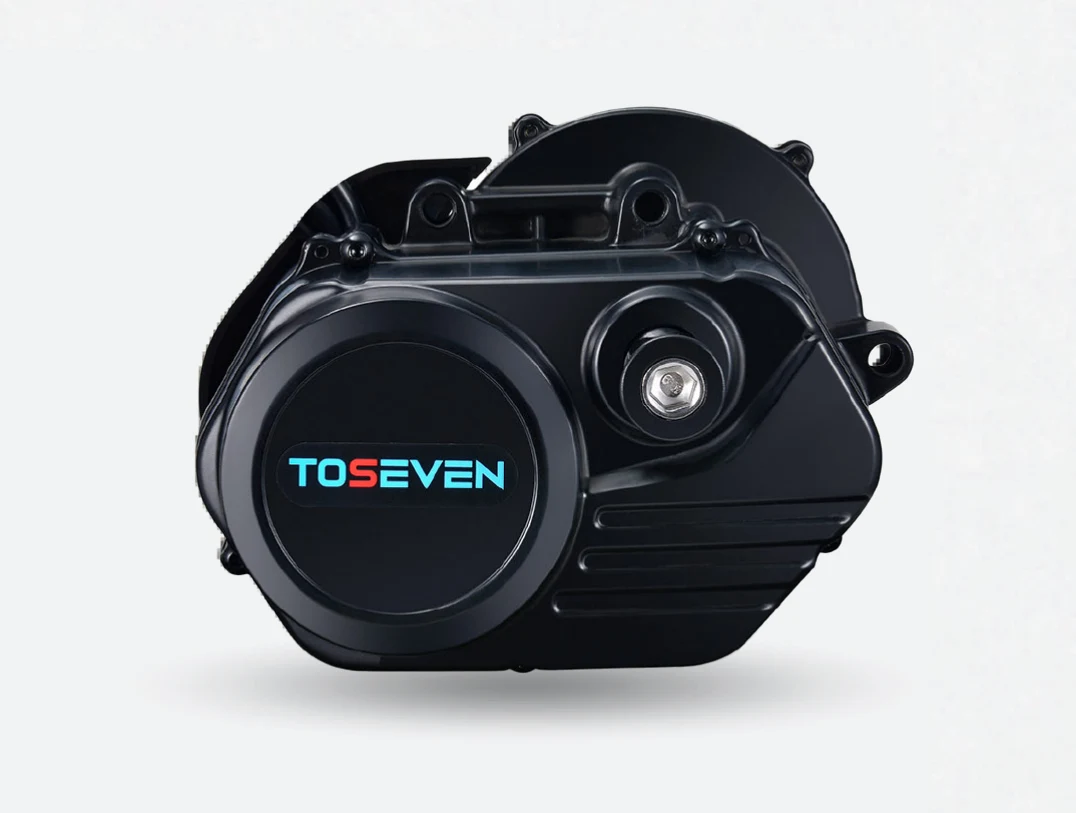

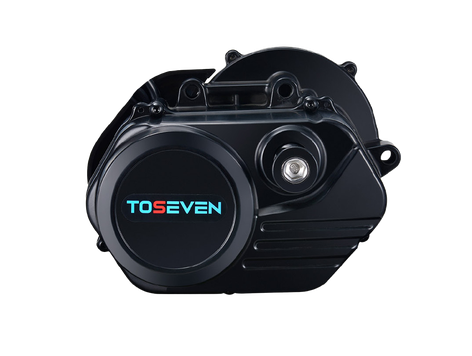

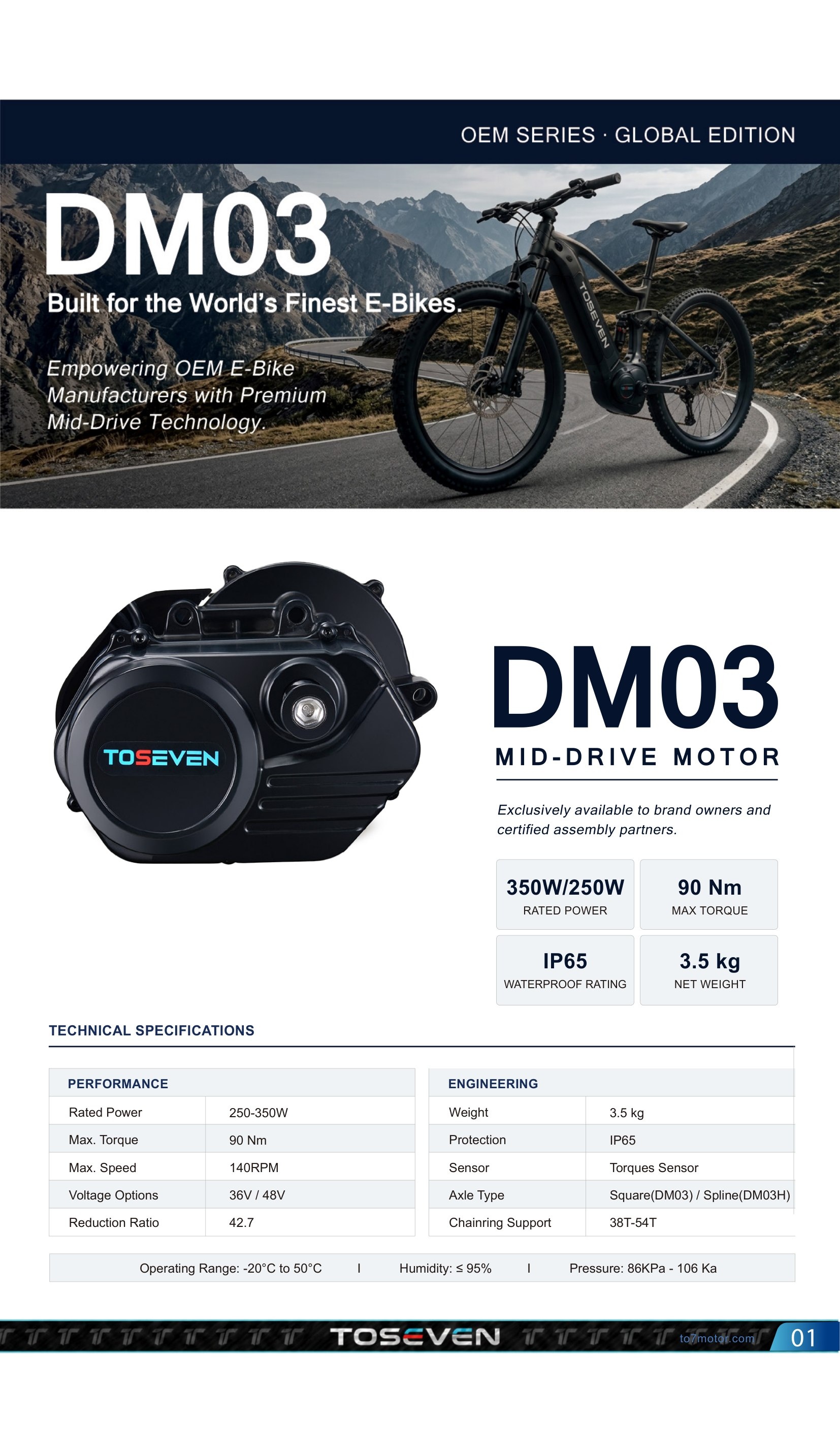

DM03 M I D - D R I V E M O T O R Exclusively available to brand owners and certified assembly partners. 350W/250W Rated Power IP65 Waterproof Rating 90 Nm Max Torque 3.5 kg Net Weight

Technical Specifications: 01 OEM SERIES · GLOBAL EDITION DM03 Built for the World’s Finest E-Bikes. Empowering OEM E-Bike Manufacturers with Premium Mid-Drive Technology. TOSEVEN

DM02

Rated Voltage	36V-48V	36V-48V	36V-48V
Rated Power	250W	350W	500W
Maximum Supported Cadence	100 rpm	100 rpm	100 rpm
Peak Output Torque	90 N·m	90 N·m	90 N·m
Reduction Ratio	53:1	53:1	53:1
Net Weight	Approx. 3.7-3.9Kg	Approx. 3.6-3.8Kg	Approx. 3.6-3.8Kg
Protection Rating	IP65	IP65	IP65
Chainring Compatibility	Standard 42T/46T (Optional 38T–52T)	Standard 42T/46T (Optional 38T–52T)	Standard 42T/46T (Optional 38T–52T)
Operating Ambient Temperature	-20°C to 50°C	-20°C to 50°C	-20°C to 50°C

alt=""> alt=""> alt="">

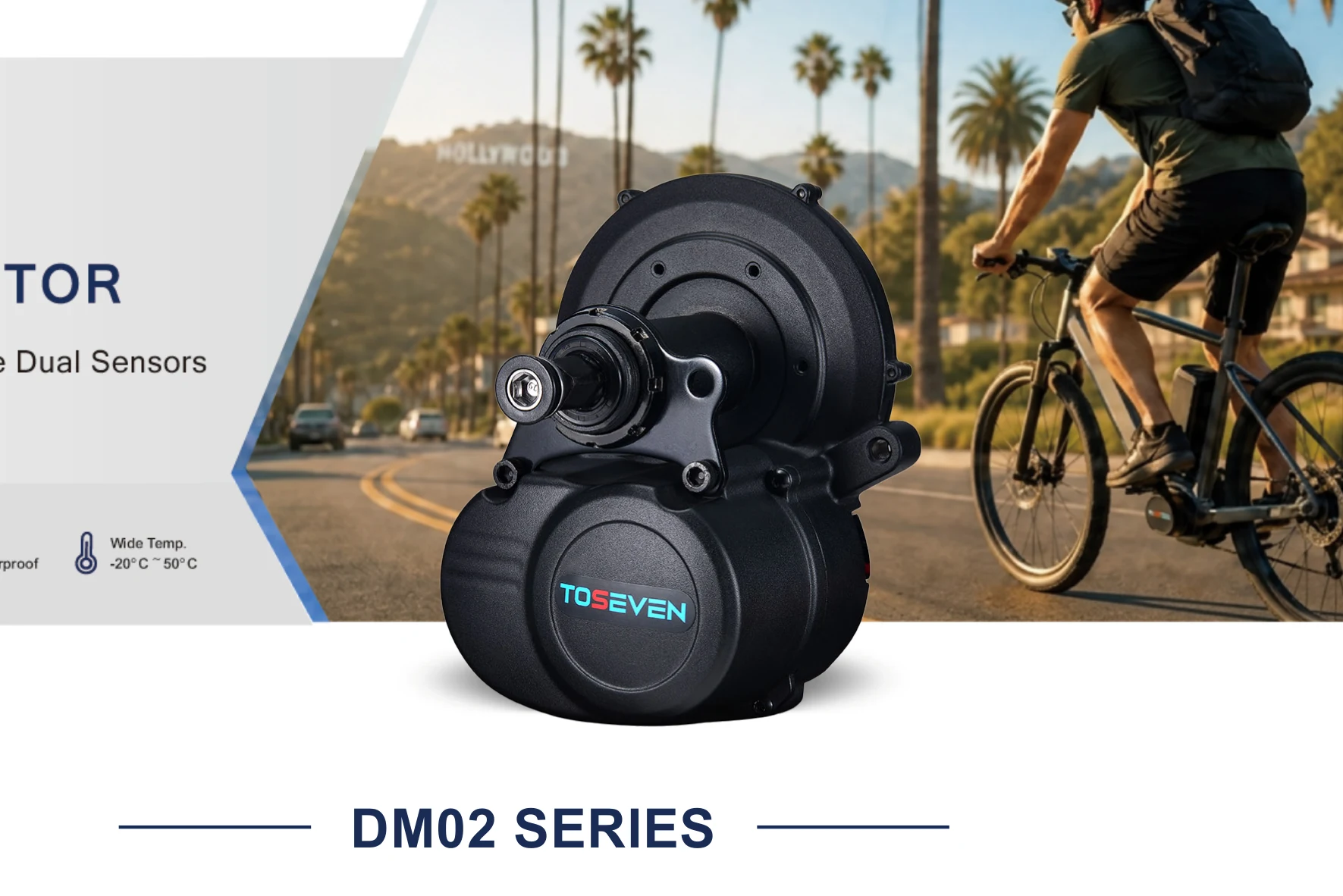

DM02 Series 250W DM02-250 350W DM02-350 500W DM02-500 02 02 DM02 Mid Drive Motor Advanced Torque & Cadence Dual Sensors High Torque Up to 90Nm High Power Up to 500W IP65 Waterproof Wide Temp. -20°C ~ 50°C TOSEVEN

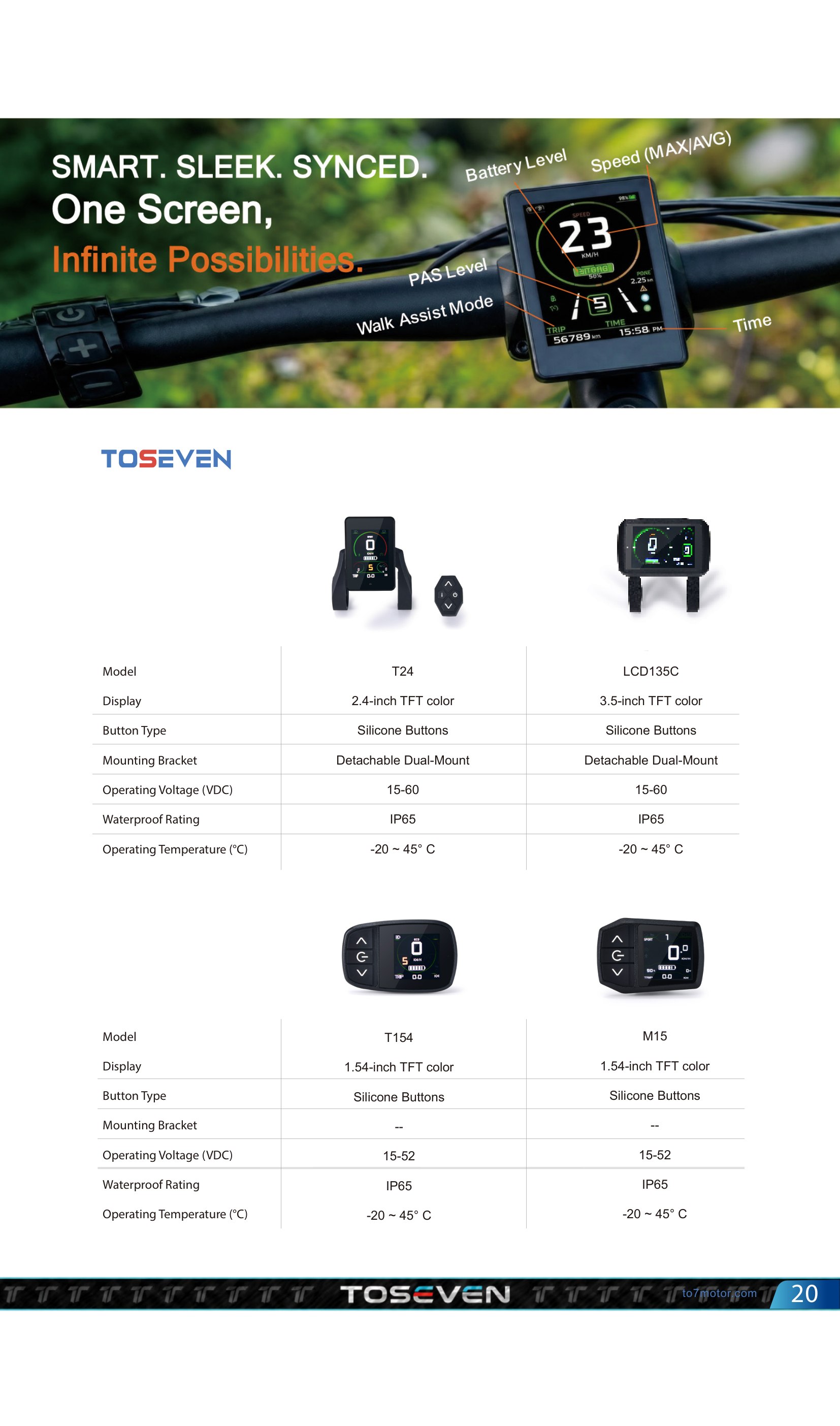

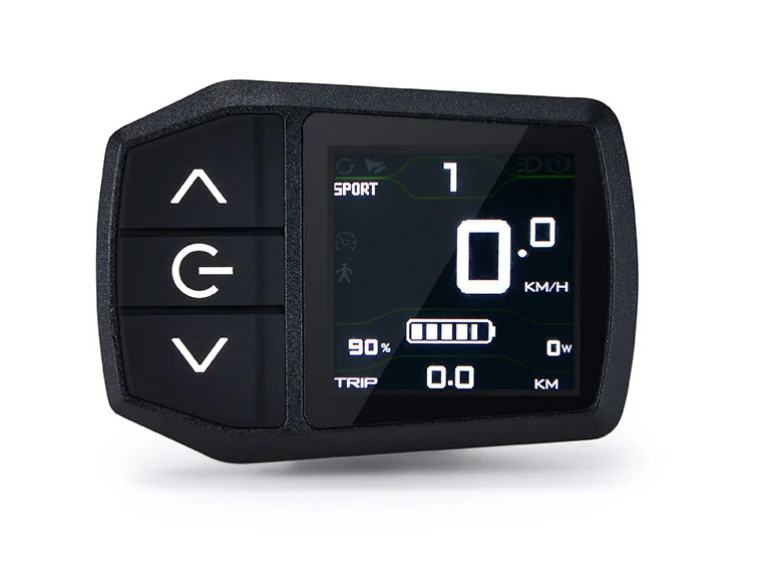

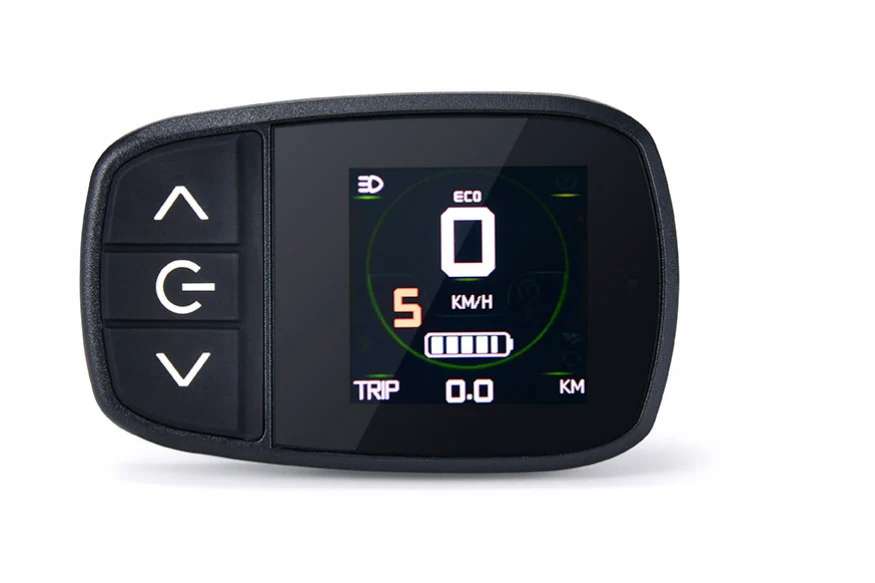

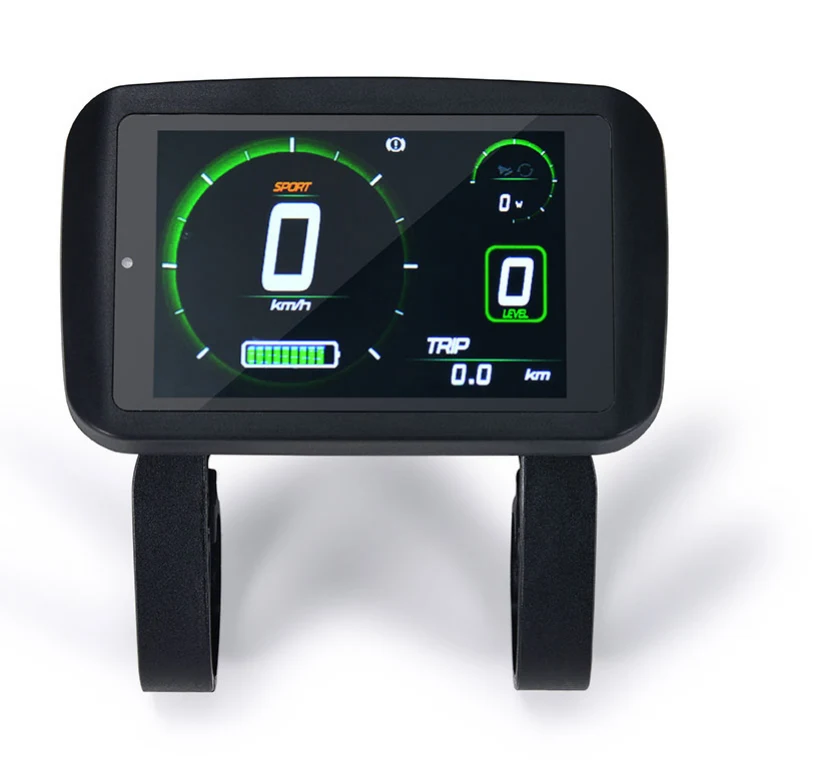

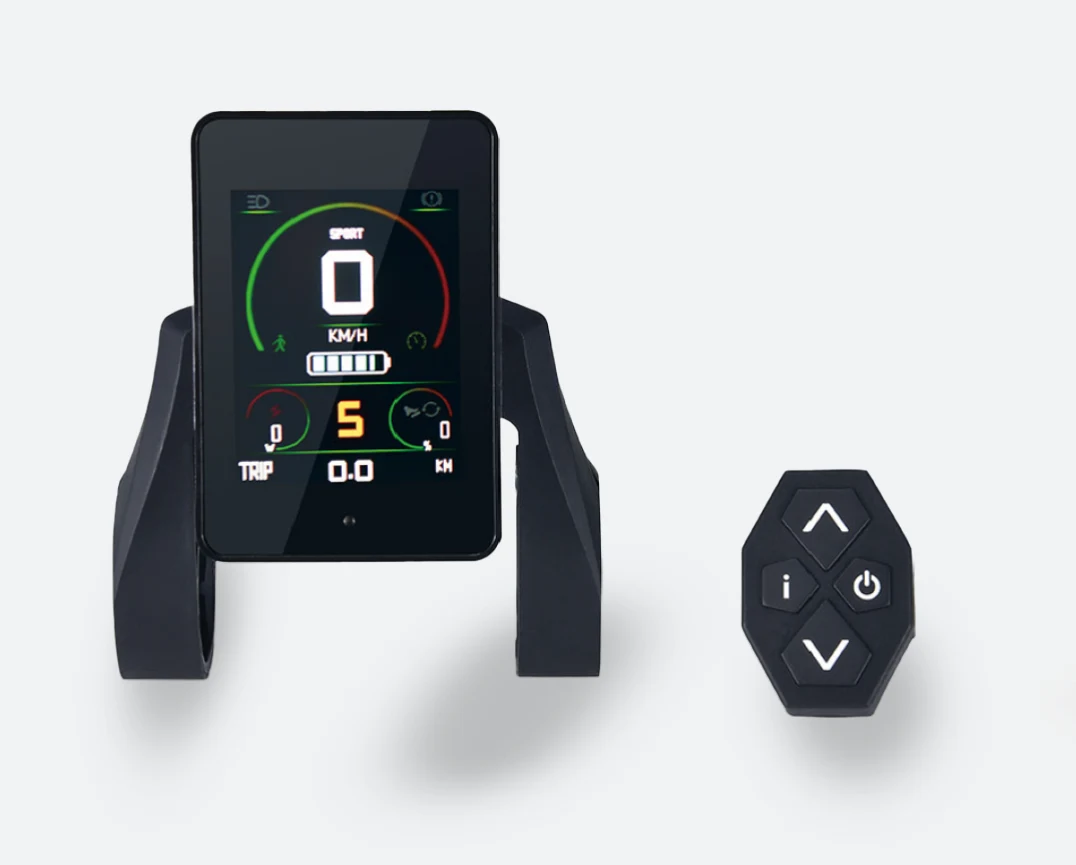

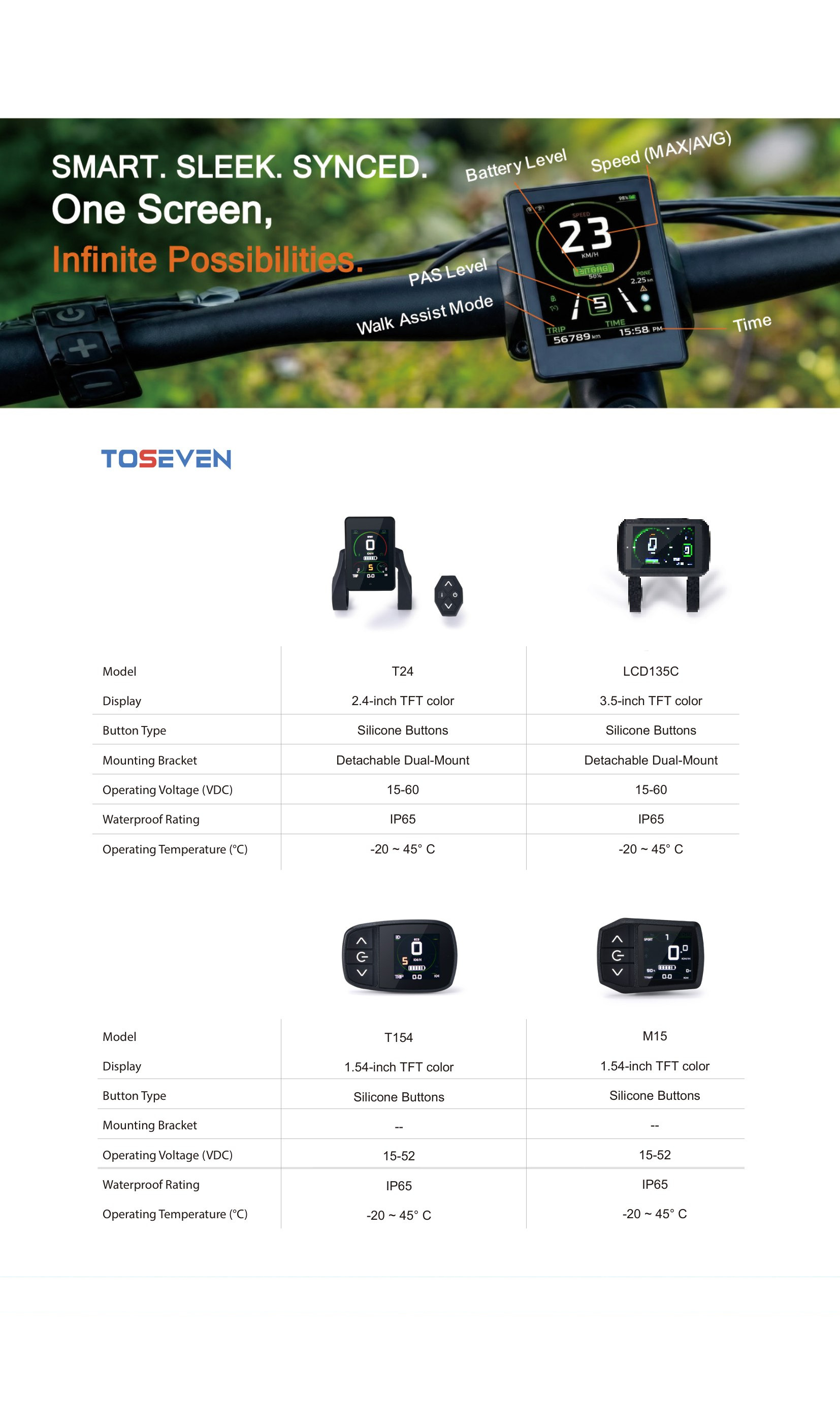

T24 Color Display

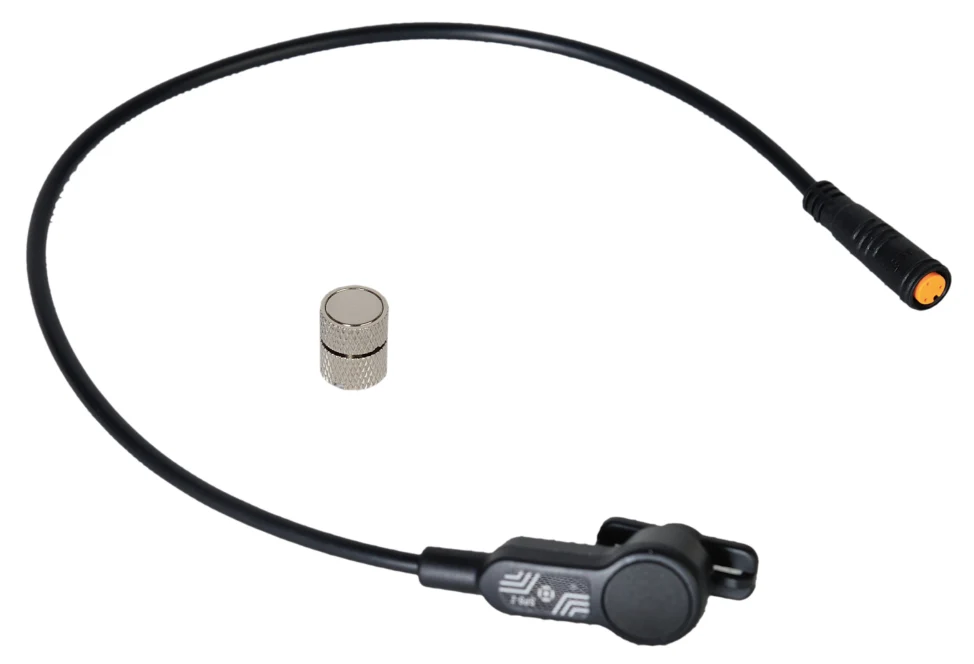

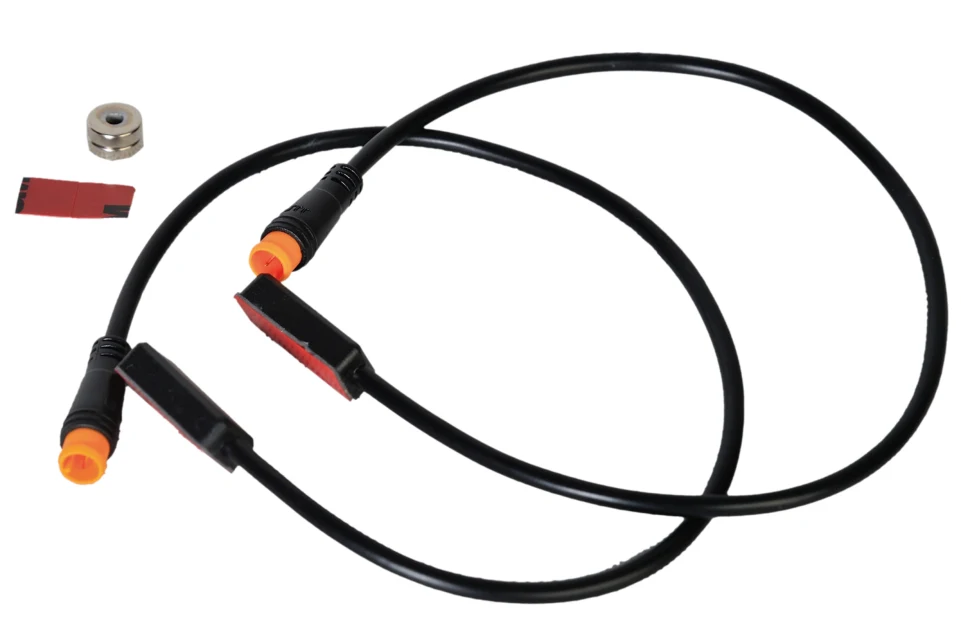

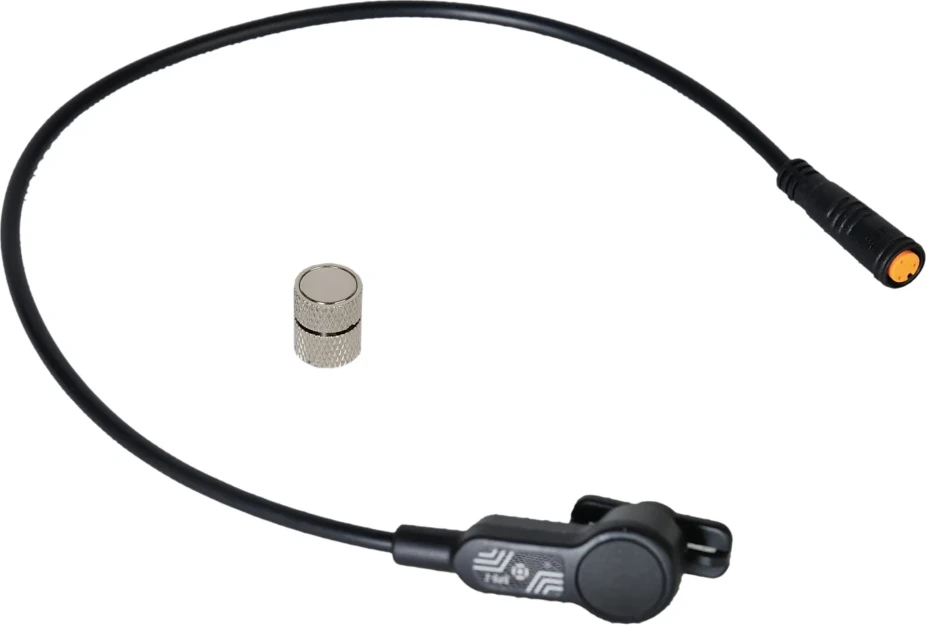

Speed Sensor

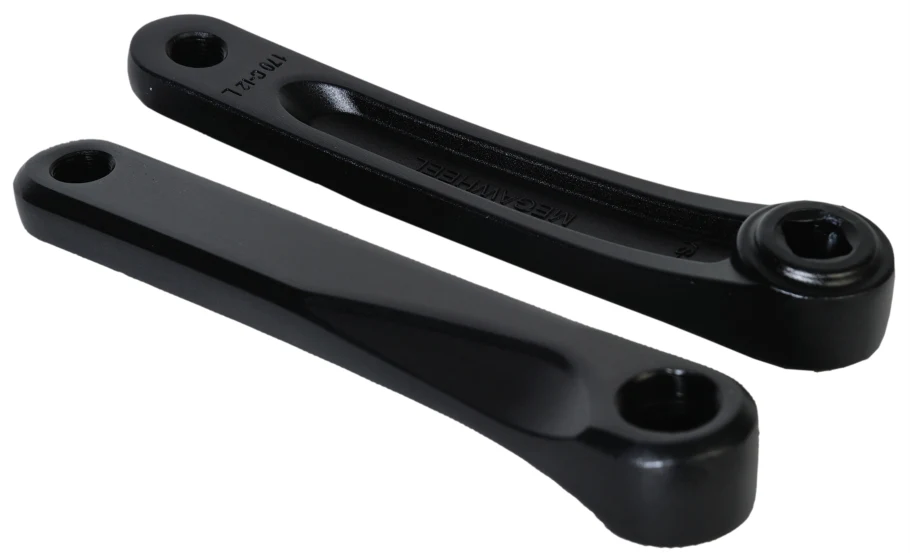

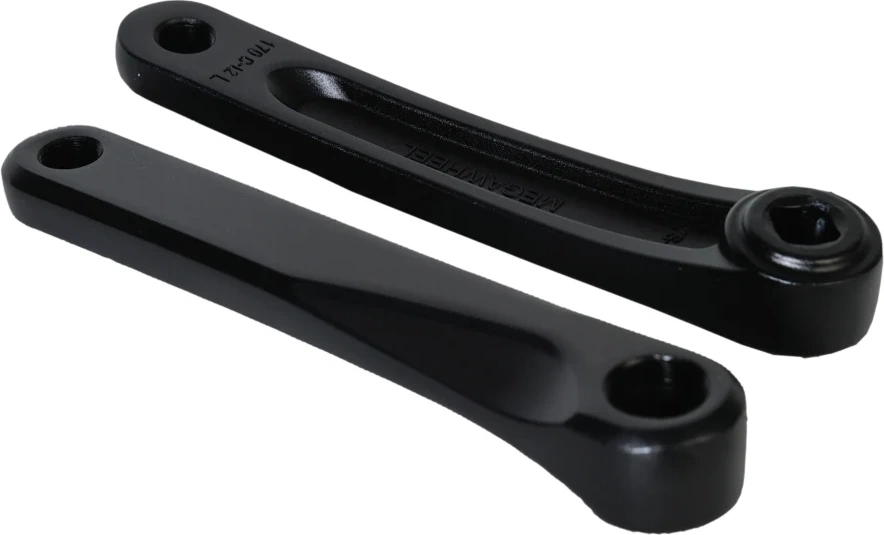

Crank Arms (Pair)

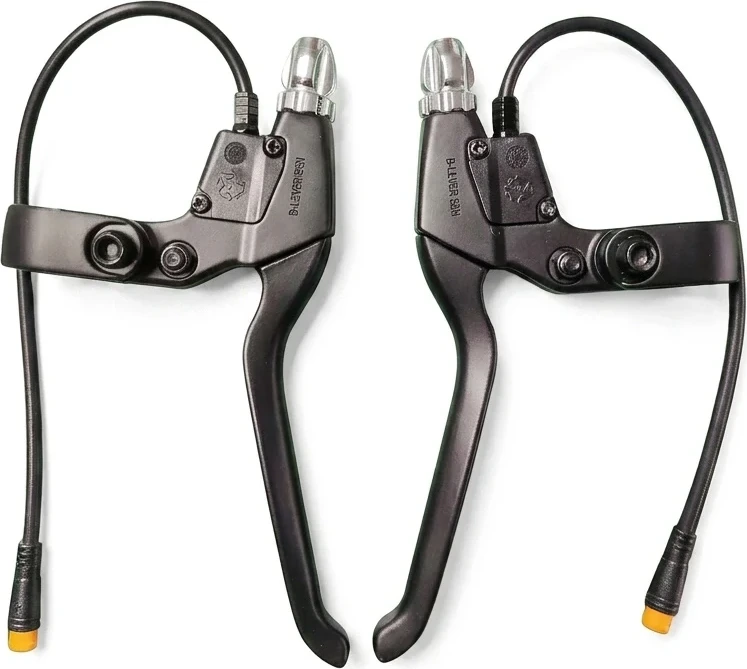

Brake Levers or
Brake Sensors

Speed Sensor

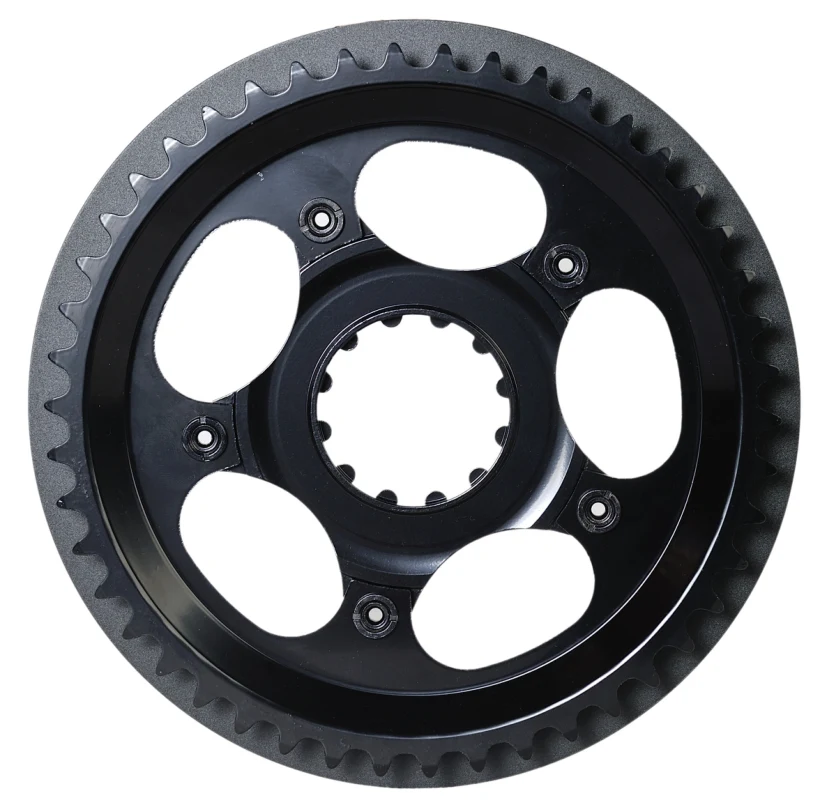

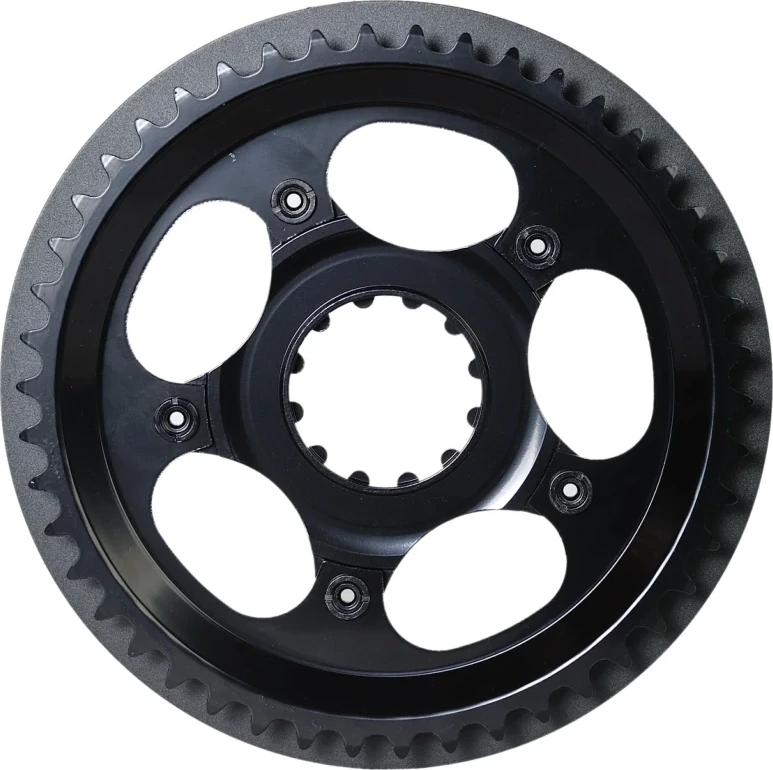

42T Offset
Chainring

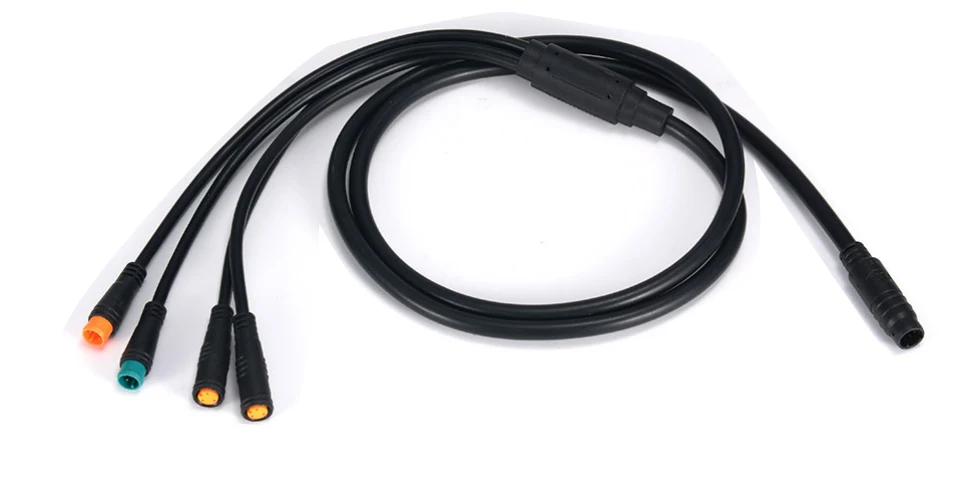

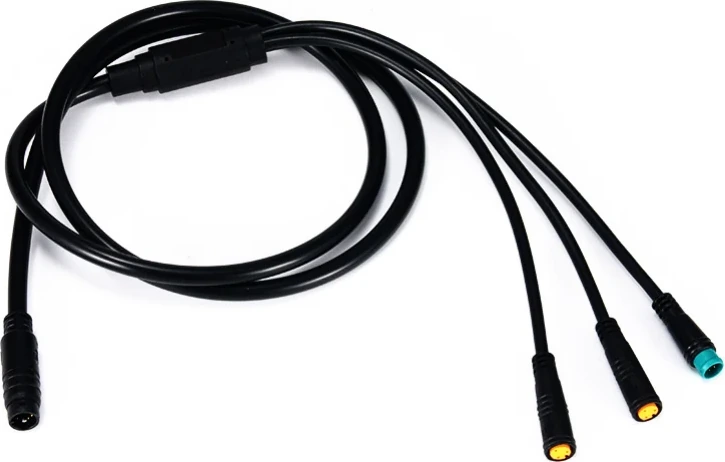

1T3 E-Bus Wire

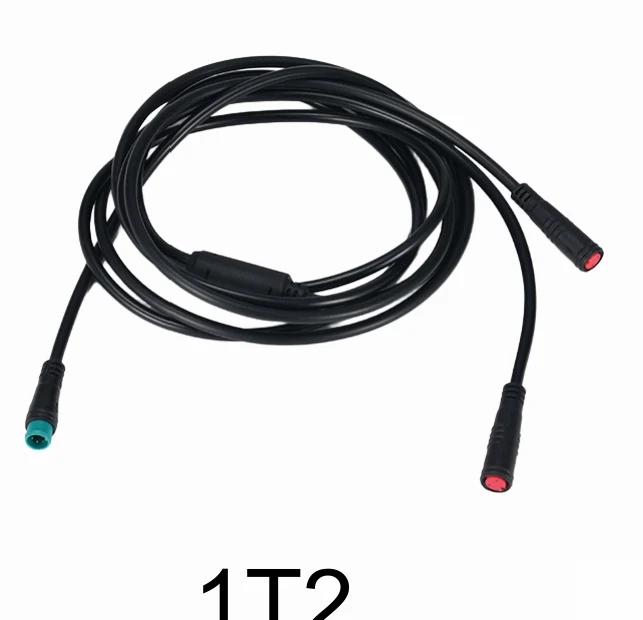

1T2 Light Wire

Installation Tool
(Wrench)

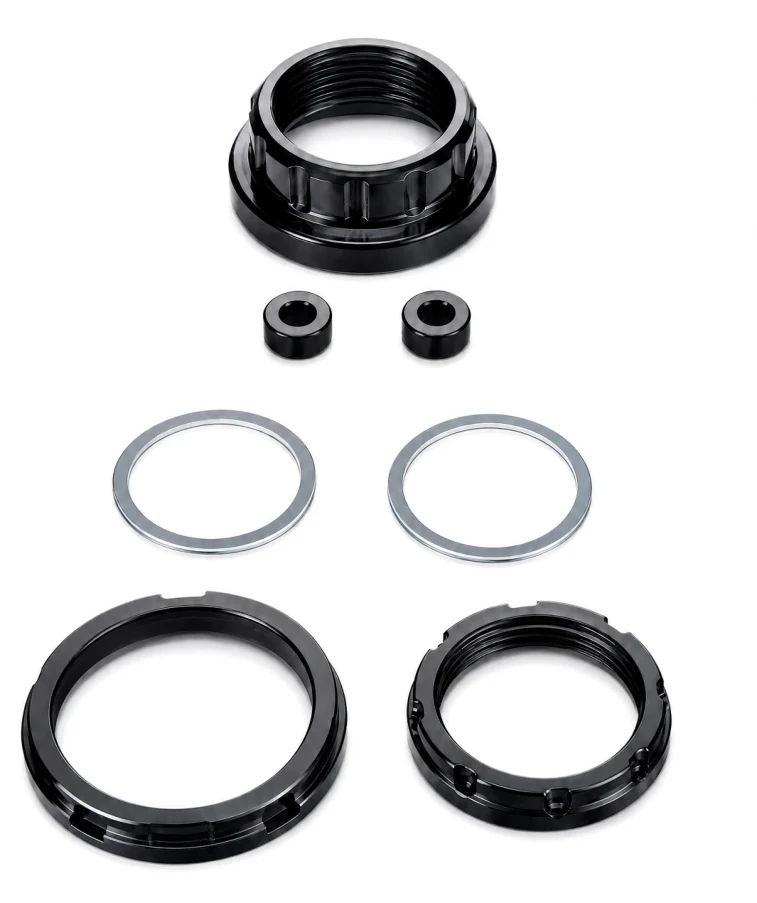

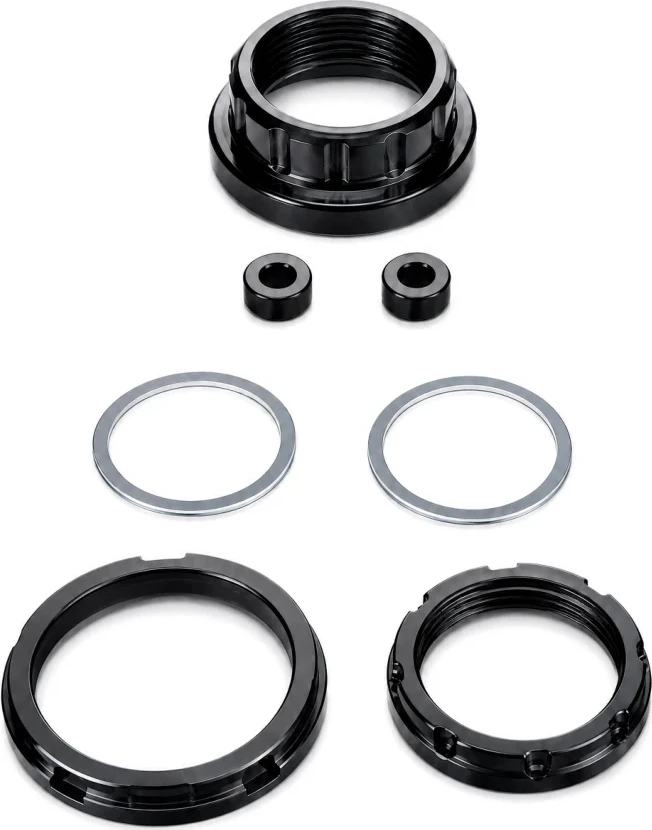

Locking Rings

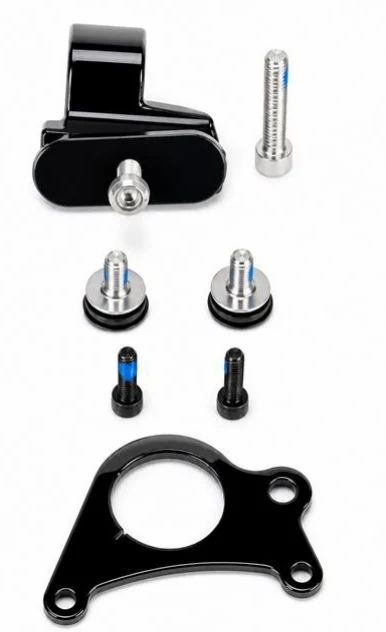

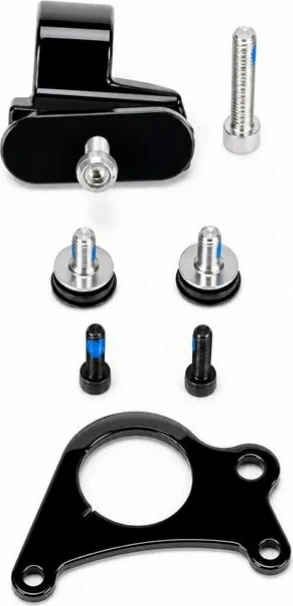

Anti-Rotation Bracket

Cable Wraps & Ties

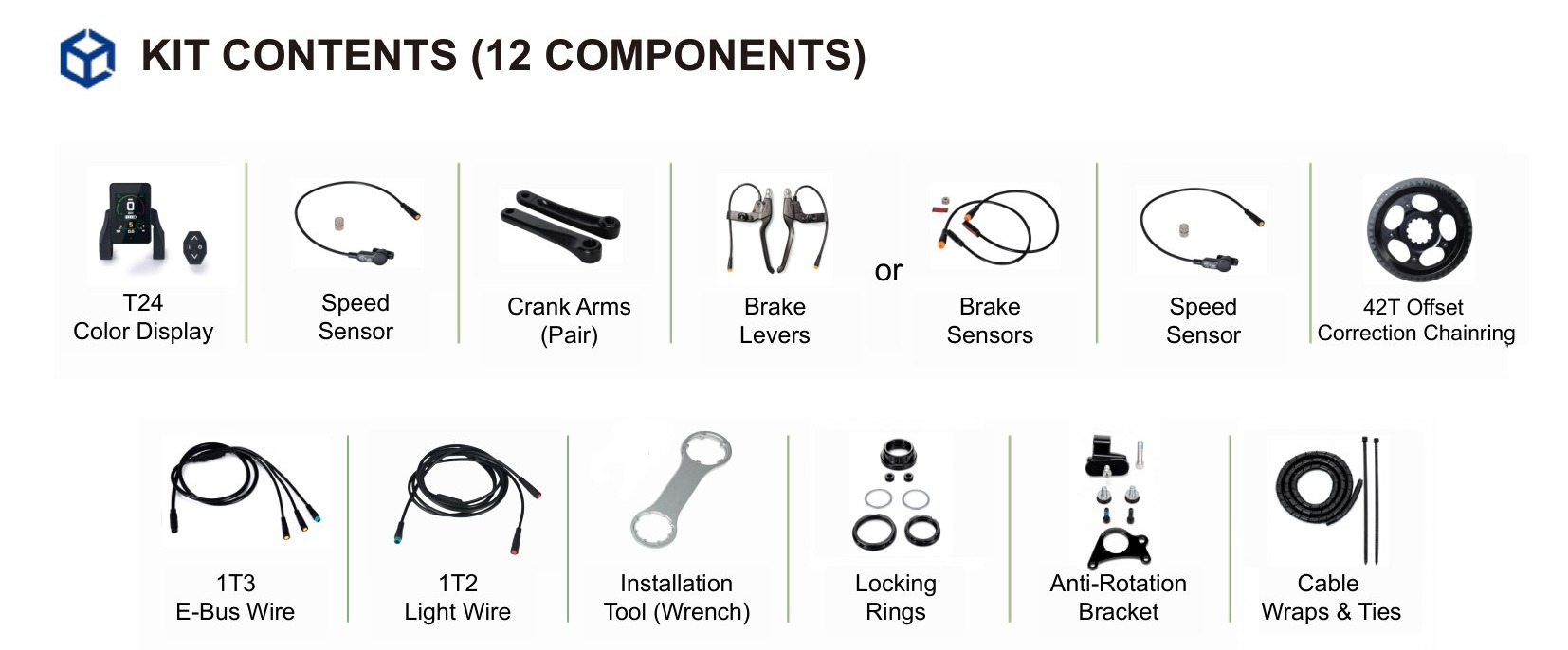

Kit Contents (12 Components):

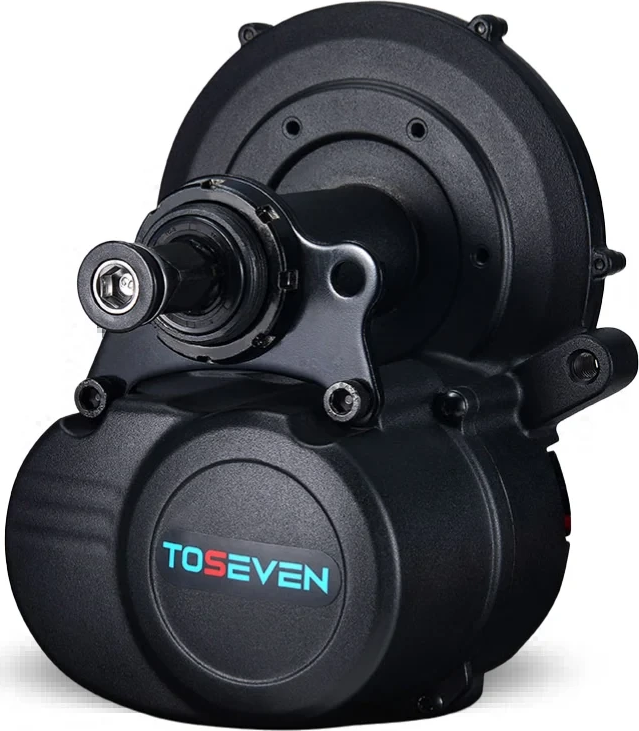

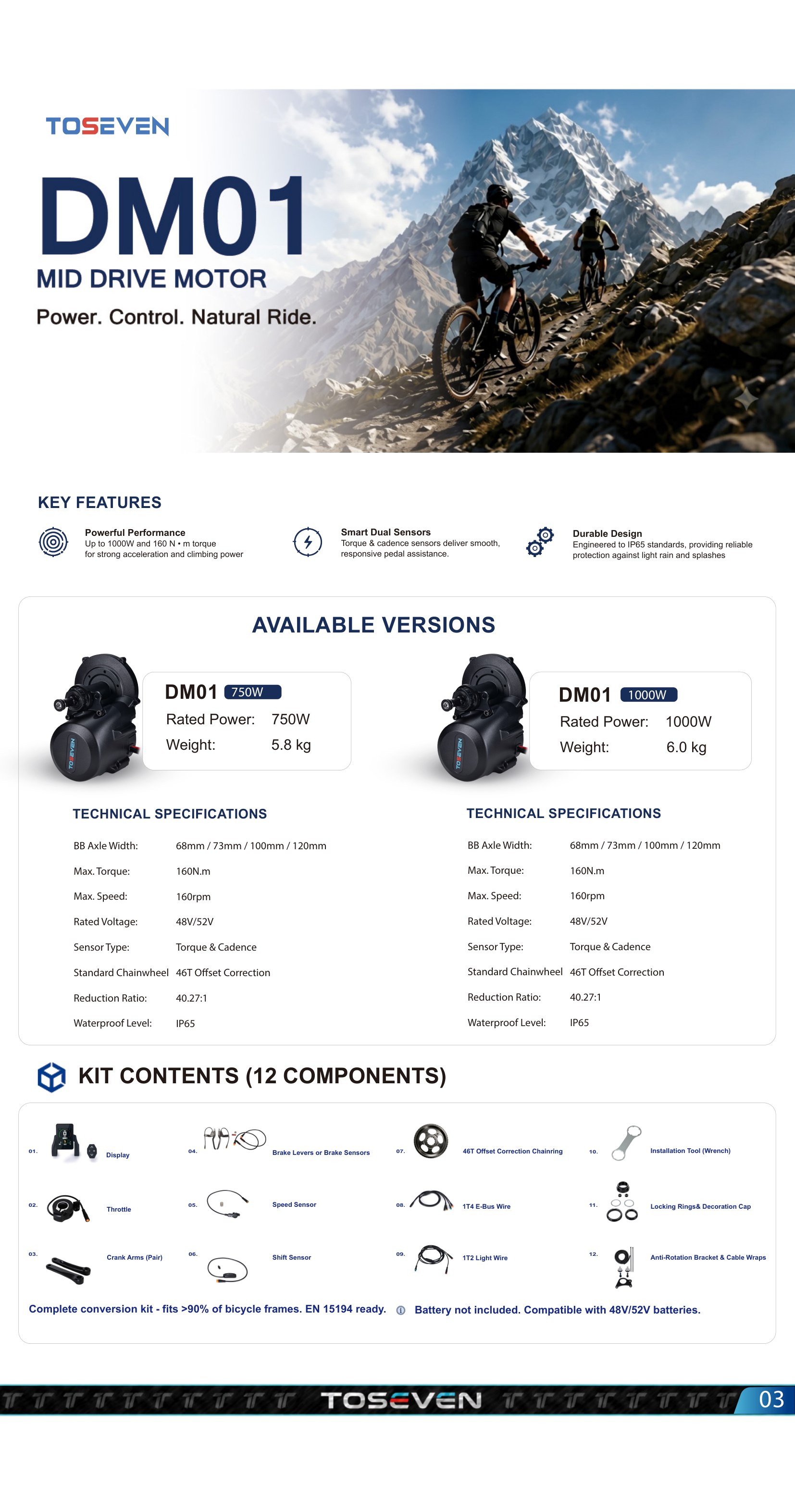

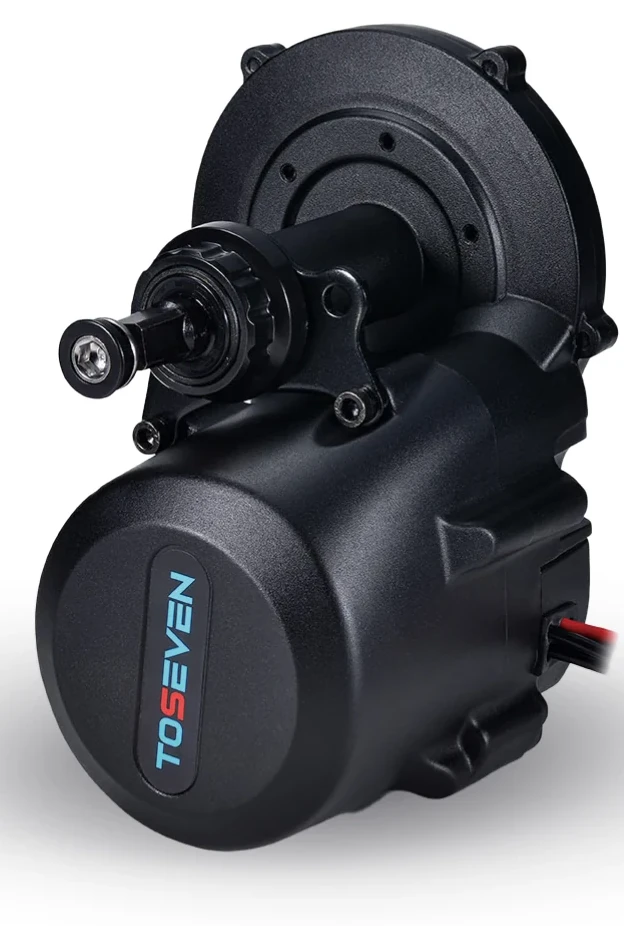

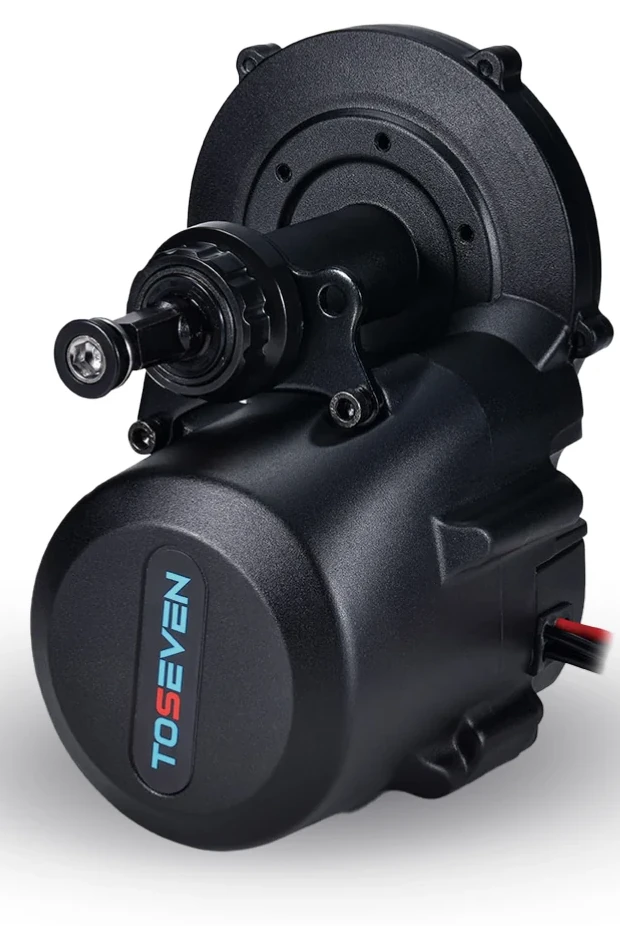

03 DM01 Mid Drive Motor Power. Control. Natural Ride. TOSEVEN Page 03 footer badge

BB Axle Width:	68mm / 73mm / 100mm / 120mm
Max. Torque:	160N.m
Max. Speed:	160rpm
Rated Voltage:	48V/52V
Sensor Type:	Torque & Cadence
Standard Chainwheel	46T Offset Correction
Reduction Ratio:	40.27:1
Waterproof Level:	IP65

BB Axle Width:	68mm / 73mm / 100mm / 120mm
Max. Torque:	160N.m
Max. Speed:	160rpm
Rated Voltage:	48V/52V
Sensor Type:	Torque & Cadence
Standard Chainwheel	46T Offset Correction
Reduction Ratio:	40.27:1
Waterproof Level:	IP65

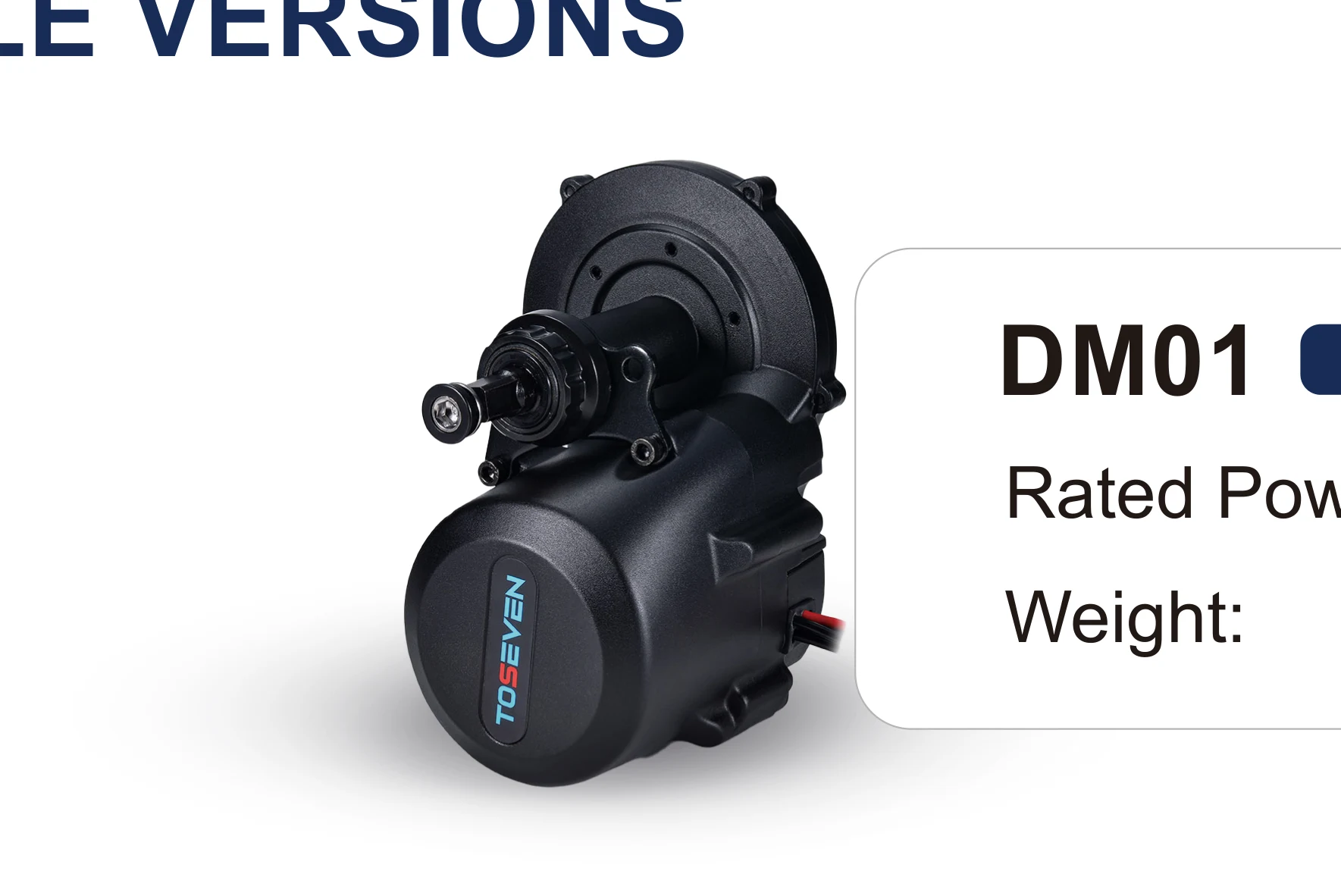

DM01

750W

Rated Power:750WWeight:5.8 kg

DM01

1000W

Rated Power:1000WWeight:6.0 kg

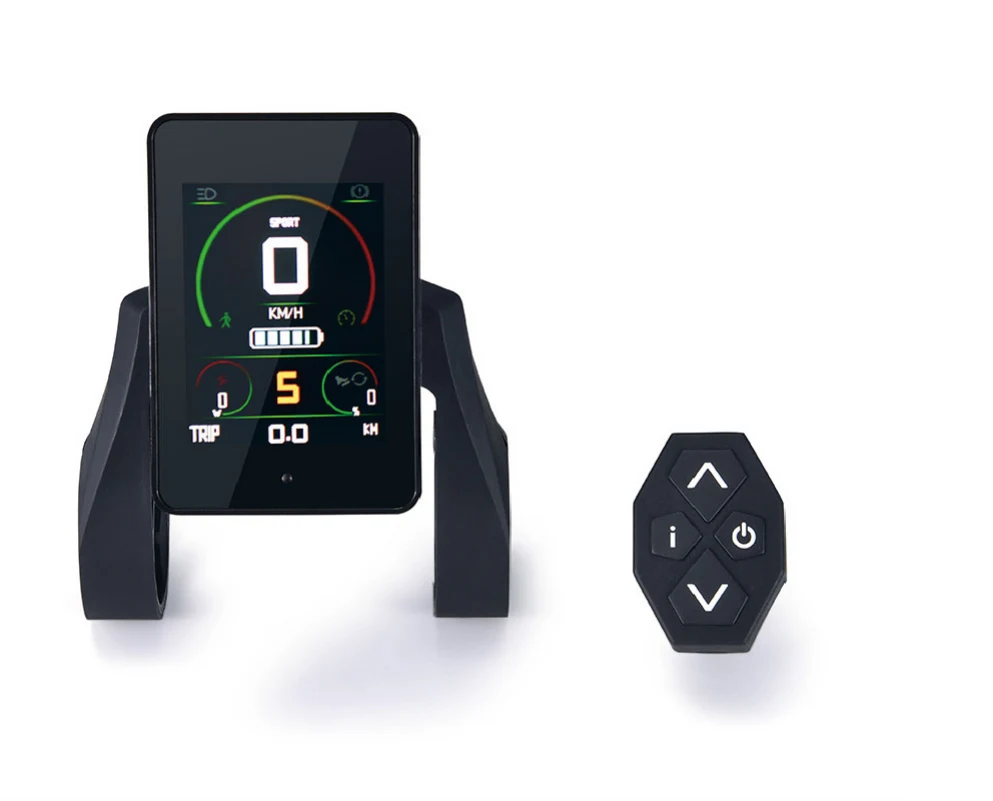

Display

Throttle

Crank Arms
(Pair)

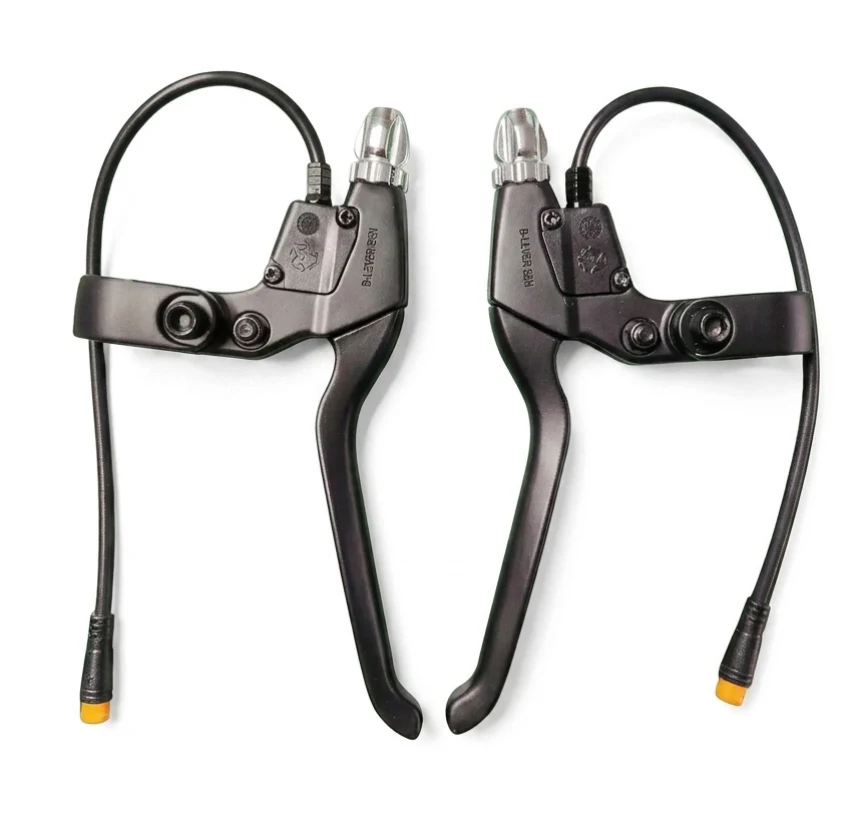

Brake Levers or
Brake Sensors

Speed Sensor

Shift Sensor

46T Offset
Chainring

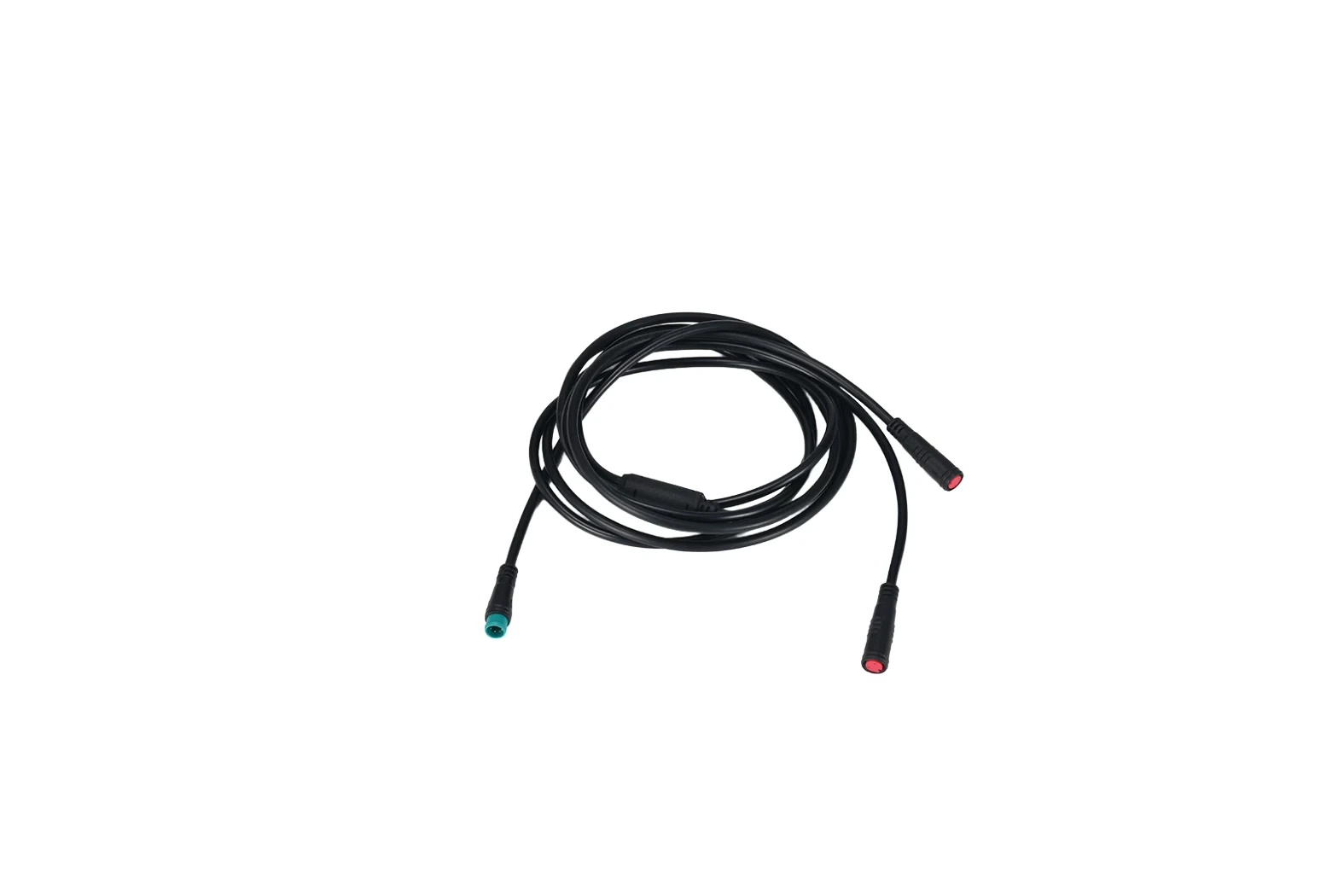

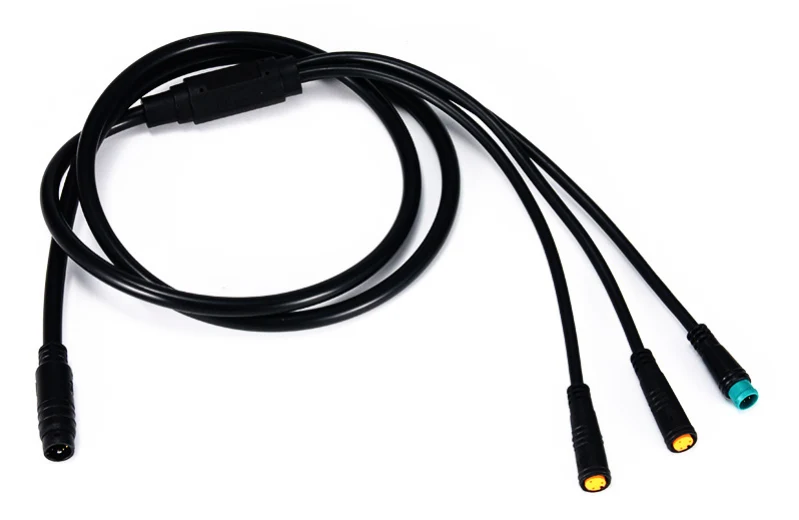

1T4 E-Bus Wire

1T2 Light Wire

Installation Tool
(Wrench)

Locking Rings &
Decoration Cap

Anti-Rotation
Bracket &
Cable Wraps

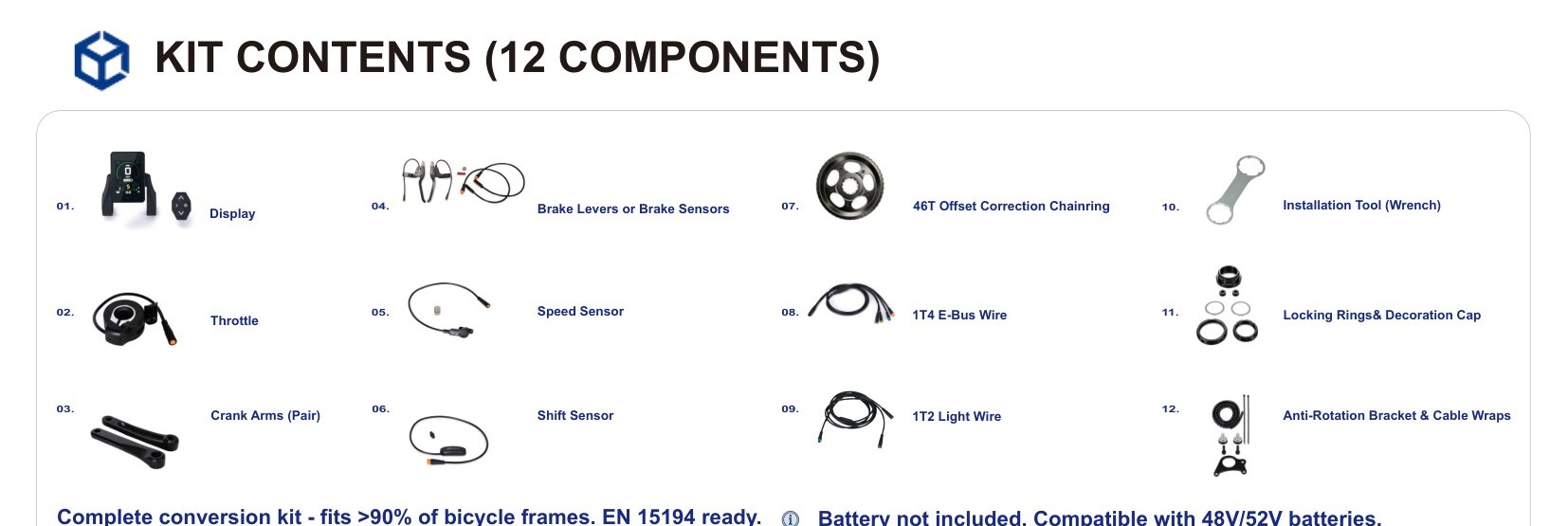

Kit Contents (12 Components):

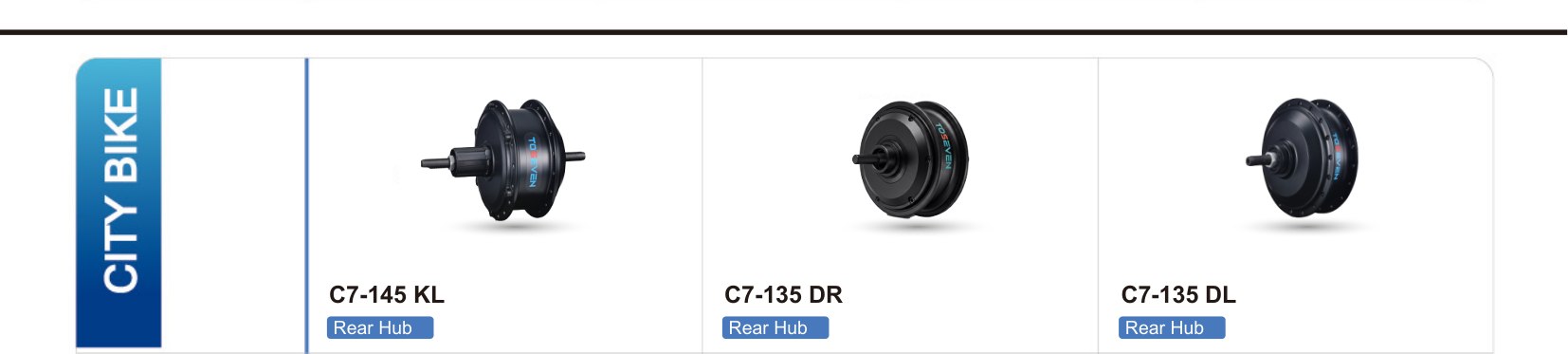

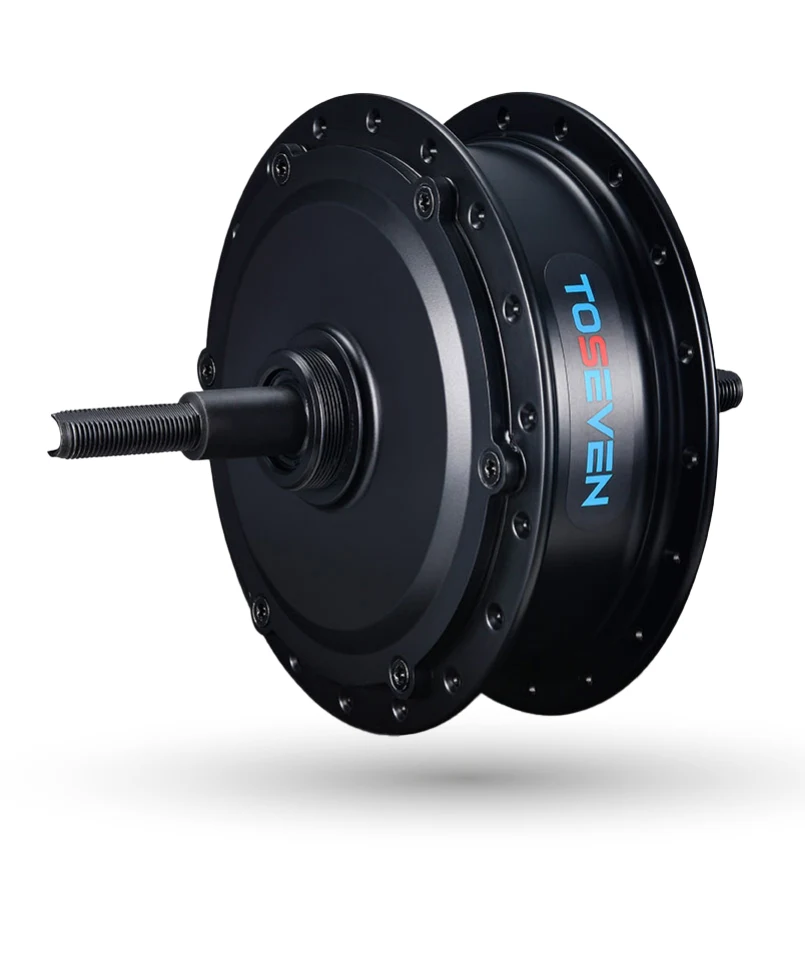

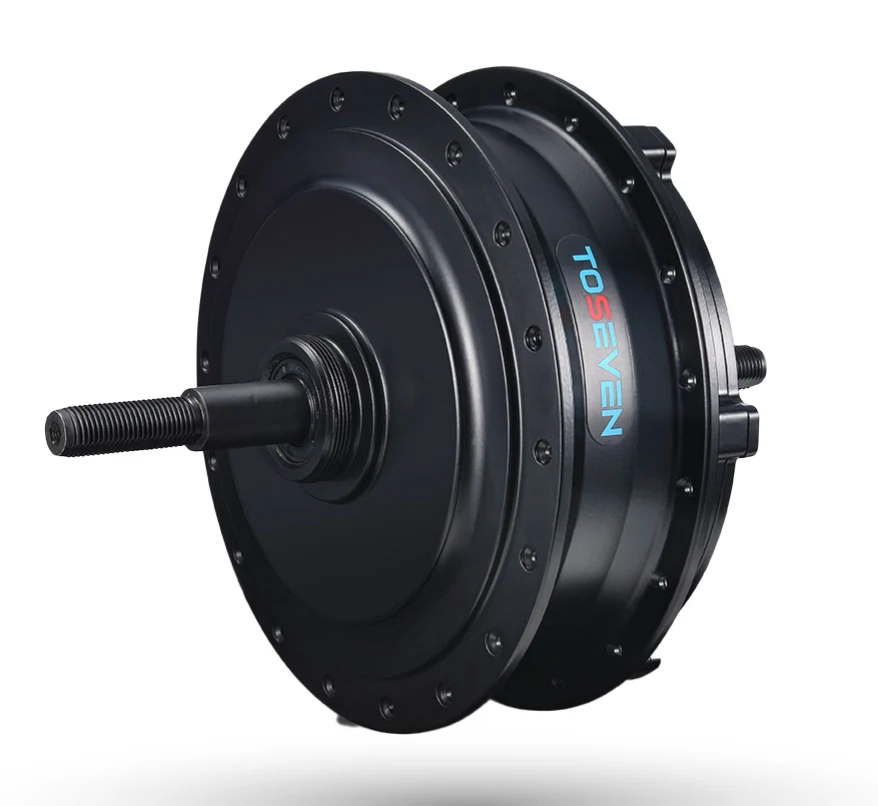

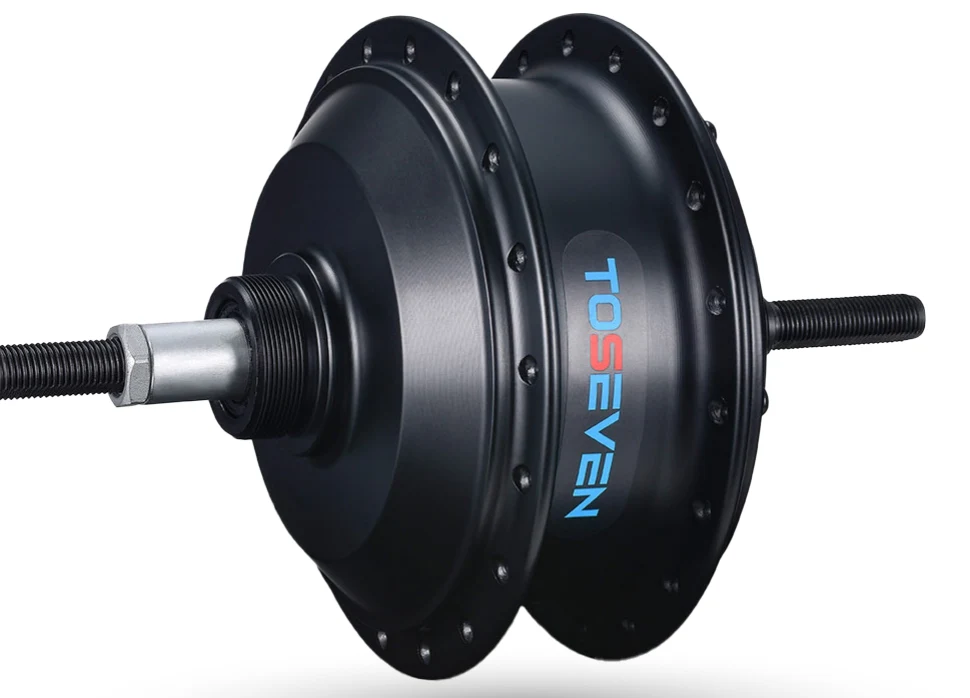

City Bike Hub Motors — C7 Series (Page 7)

O.L.D (mm)

Rated Power (W)

Peak Torque (N.m)

Rated Voltage (V)

Housing Architecture

Wheel Size

Sprocket Interface

Max Speed (km/h)

Reduction Ratio

Weight (kg)

145

250 - 350

47

24 / 36 / 48

Universal Compatibility

16 / 20 / 24 /
26 / 28 / 700C

8 - 10 speed

35

4.43 : 1 / 5.16 : 1

2.8

135

250 - 350

47

24 / 36 / 48

Universal Compatibility

16 / 20 / 24 /
26 / 28 / 700C

Single

35

4.43 : 1 / 5.16 : 1

2.8

135

250 - 350

47

24 / 36 / 48

Universal Compatibility

16 / 20 / 24 /
26 / 28 / 700C

Single

35

4.43 : 1 / 5.16 : 1

2.8

C7-100 QR Front Hub C7-138/160 XL Rear Hub C7-135/142 XR Rear Hub Rear Hub C7-138XL-D C7-145 KL Rear Hub C7-135 DR Rear Hub C7-135 DL Rear Hub Flexible | Compatible | OEM Ready Designed for maximum frame compatibility and seamless city e-bike integration. City Bike Hub Motor Overview 04 CITY BIKE Move Freely. Ride Effortless. Every Day. High Speed Performance Smooth Torque Delivery Lightweight Construction Cassette Compatibility Quiet & Reliable

O.L.D (mm)	100	138 / 160	135 / 142	138
Rated Power (W)	250 - 350	250 - 350	250 - 350	250 - 350
Peak Torque (N.m)	47	47	47	47
Rated Voltage (V)	24 / 36 / 48	24 / 36 / 48	24 / 36 / 48	24 / 36 / 48
Housing Architecture	Universal Compatibility	Universal Compatibility	Universal Compatibility	Universal Compatibility
Wheel Size	16 / 20 / 24 / 26 / 28 / 700C	16 / 20 / 24 / 26 / 28 / 700C	16 / 20 / 24 / 26 / 28 / 700C	16 / 20 / 24 / 26 / 28 / 700C
Sprocket Interface	-	6 - 7 speed	6 - 7 speed	6 - 7 speed
Max Speed (km/h)	35	35	35	35
Reduction Ratio	4.43 : 1 / 5.16 : 1	4.43 : 1 / 5.16 : 1	4.43 : 1 / 5.16 : 1	4.43 : 1 / 5.16 : 1
Weight (kg)	2.8	2.8	2.8	2.8

City BikeCity Bike

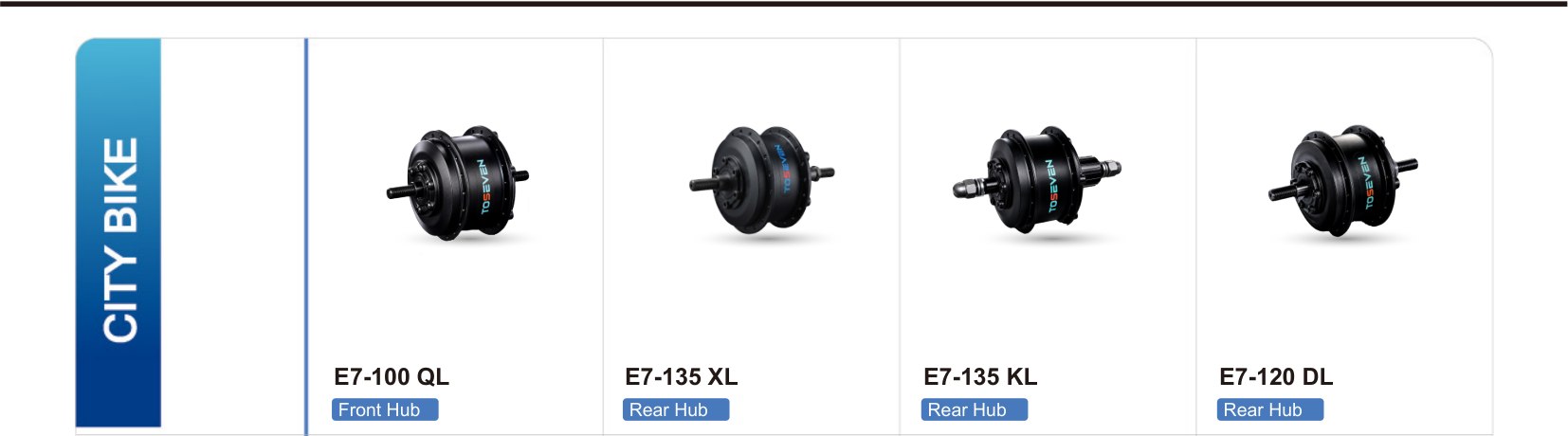

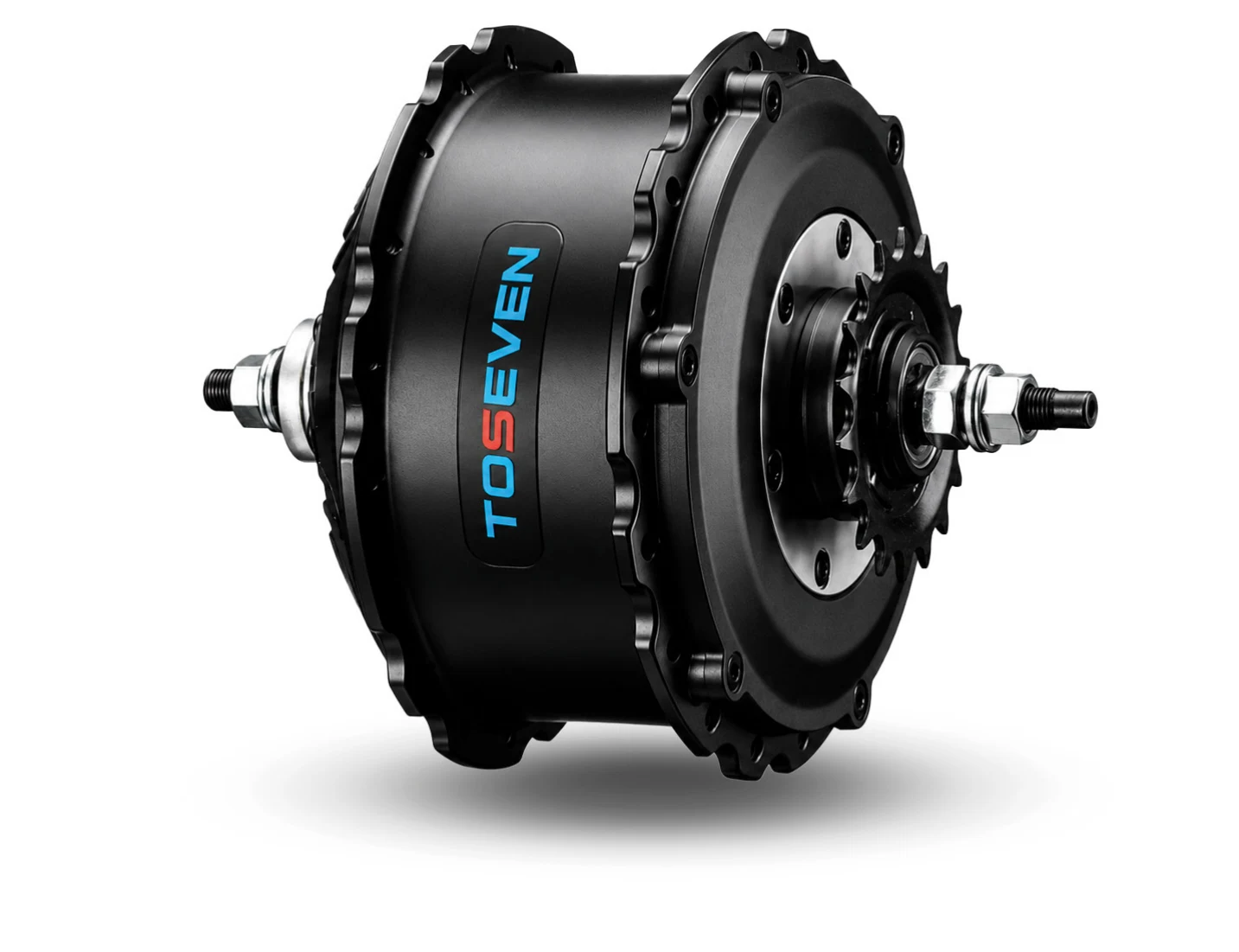

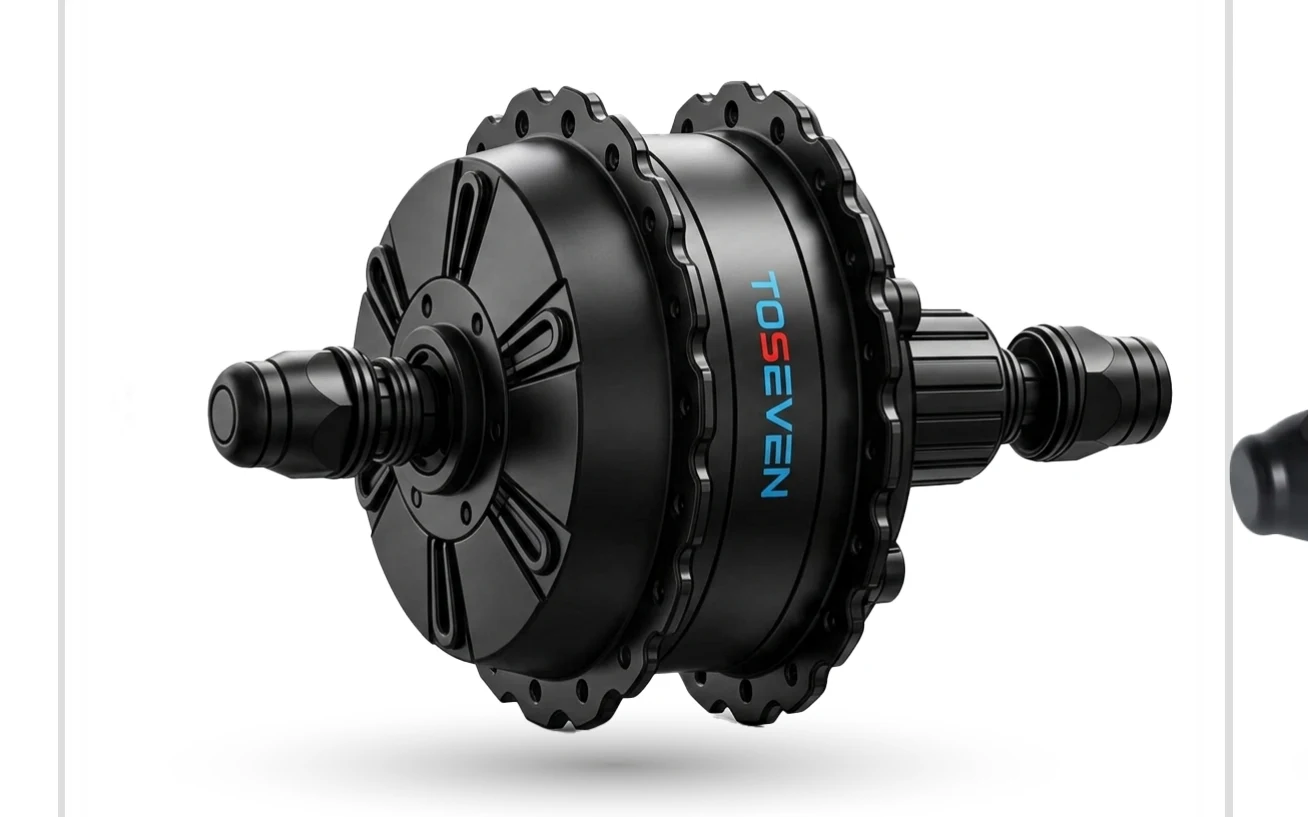

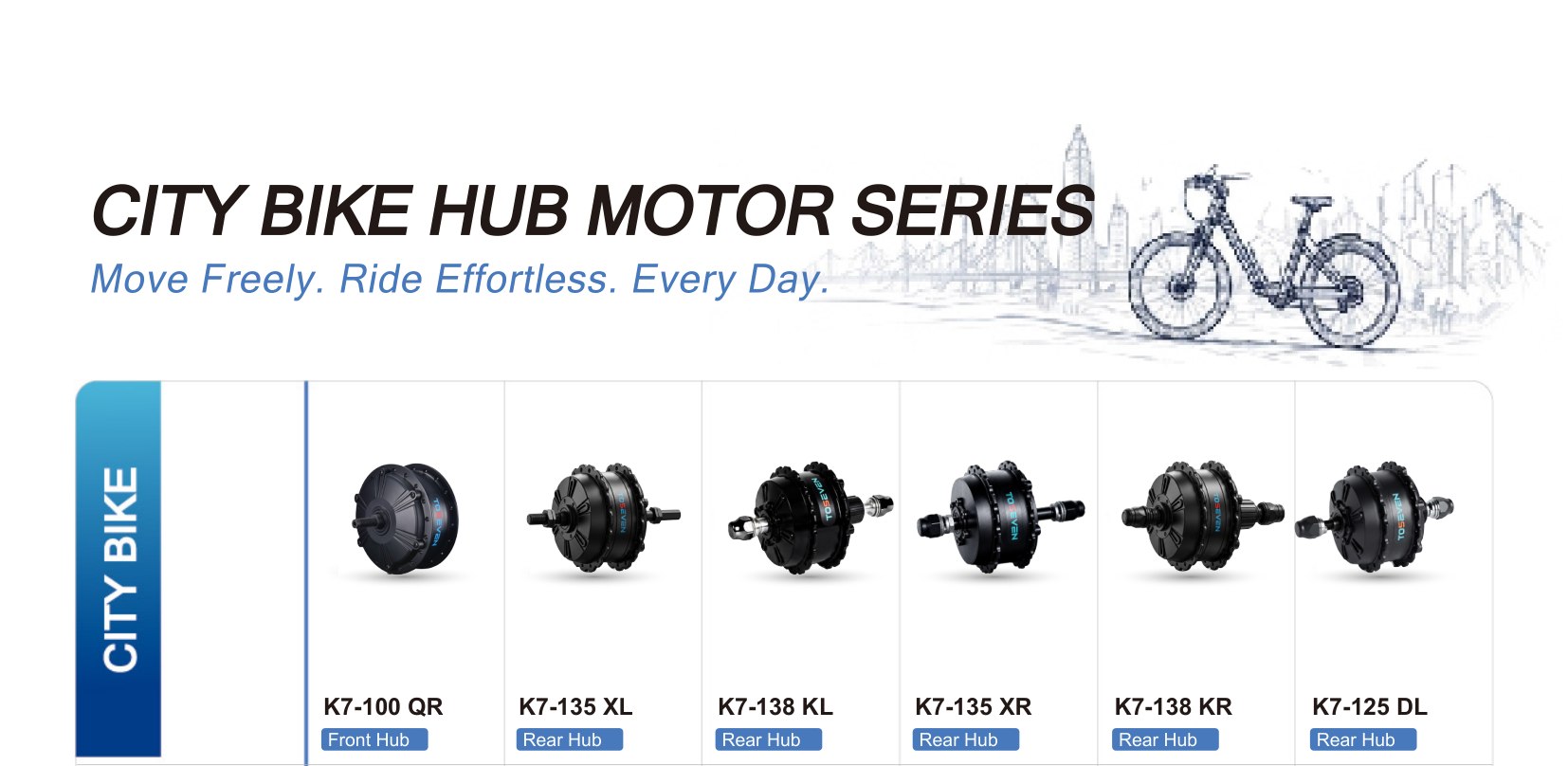

City Bike Hub Motors — K7 & E7 Series (Page 8)

O.L.D (mm)

Rated Power (W)

Peak Torque (N.m)

Rated Voltage (V)

Housing Architecture

Wheel Size

Sprocket Interface

Max Speed (km/h)

Reduction Ratio

Weight (kg)

100

250 - 350

47

24 / 36 / 48

TOSEVEN
Proprietary

16 / 20 / 24 /
26 / 28 / 700C

-

35

7.33:1

2.8

135

250 - 350

47

24 / 36 / 48

TOSEVEN
Proprietary

16 / 20 / 24 /
26 / 28 / 700C

6 - 7 speed

35

7.33:1

2.8

138

250 - 350

47

24 / 36 / 48

TOSEVEN
Proprietary

16 / 20 / 24 /
26 / 28 / 700C

8 - 10 speed

35

7.33:1

2.8

135

250 - 350

47

24 / 36 / 48

TOSEVEN
Proprietary

16 / 20 / 24 /
26 / 28 / 700C

6 - 7 speed

35

7.33:1

2.8

138

250 - 350

47

24 / 36 / 48

TOSEVEN
Proprietary

16 / 20 / 24 /
26 / 28 / 700C

8 - 10 speed

35

7.33:1

2.8

125

250 - 350

47

24 / 36 / 48

TOSEVEN
Proprietary

16 / 20 / 24 /
26 / 28 / 700C

Single

35

7.33:1

2.8

O.L.D (mm)

Rated Power (W)

Peak Torque (N.m)

Rated Voltage (V)

Housing Architecture

Wheel Size

Sprocket Interface

Max Speed (km/h)

Reduction Ratio

Weight (kg)

100

250 - 300

40

24 / 36 / 48

TOSEVEN Proprietary

16 / 20 / 24 /
26 / 28 / 700C

-

35

11:1

2.1

135

250 - 300

40

24 / 36 / 48

TOSEVEN Proprietary

16 / 20 / 24 /
26 / 28 / 700C

6 - 7 speed

35

11:1

2.1

135

250 - 300

40

24 / 36 / 48

TOSEVEN Proprietary

16 / 20 / 24 /
26 / 28 / 700C

8 - 10 speed

35

11:1

2.1

120

250 - 300

40

24 / 36 / 48

TOSEVEN Proprietary

16 / 20 / 24 /
26 / 28 / 700C

Single

35

11:1

2.1

K7-100 QR Front Hub K7-135 XL Rear Hub K7-138 KL Rear Hub K7-135 XR Rear Hub K7-138 KR Rear Hub K7-125 DL Rear Hub E7-100 QL Front Hub E7-135 XL Rear Hub E7-135 KL Rear Hub E7-120 DL Rear Hub 05 City Bike Hub Motor Series Move Freely. Ride Effortless. Every Day. TOSEVEN

City BikeCity Bike

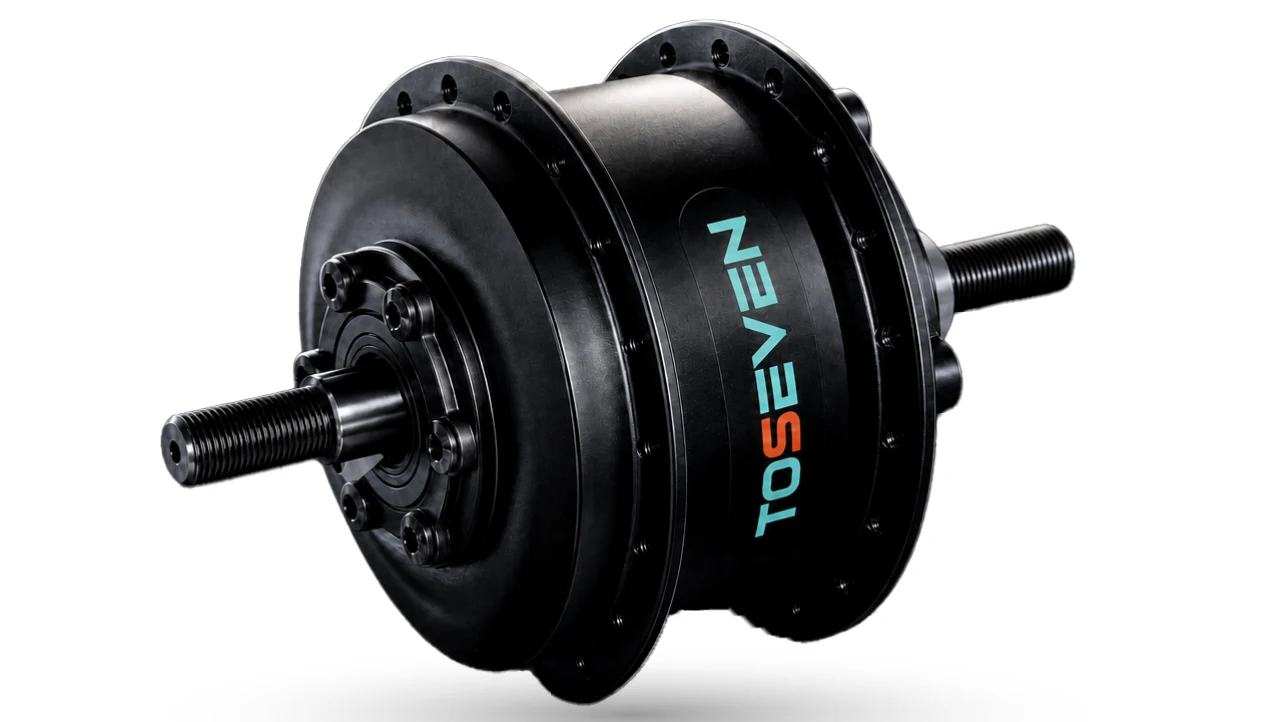

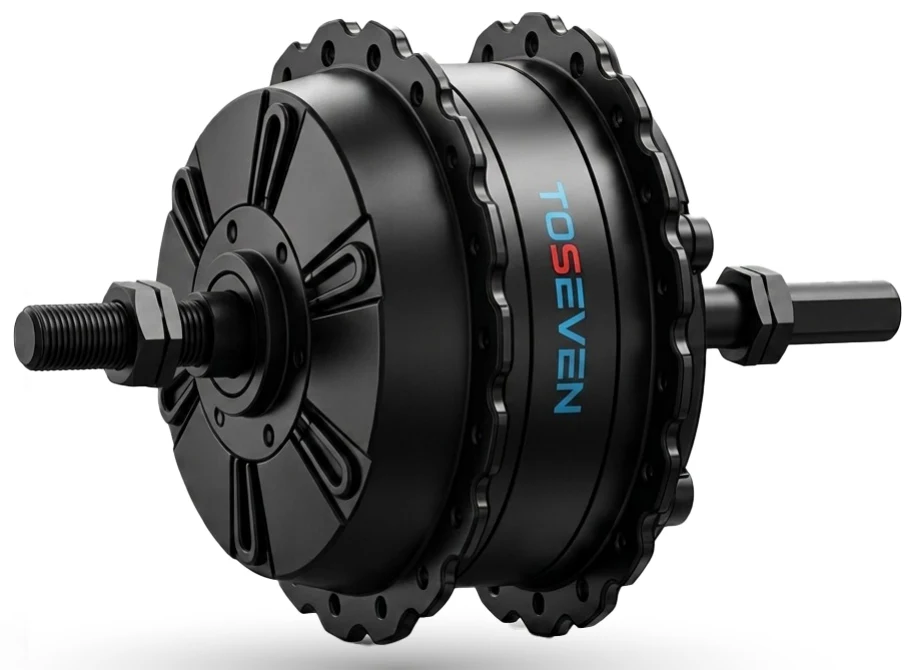

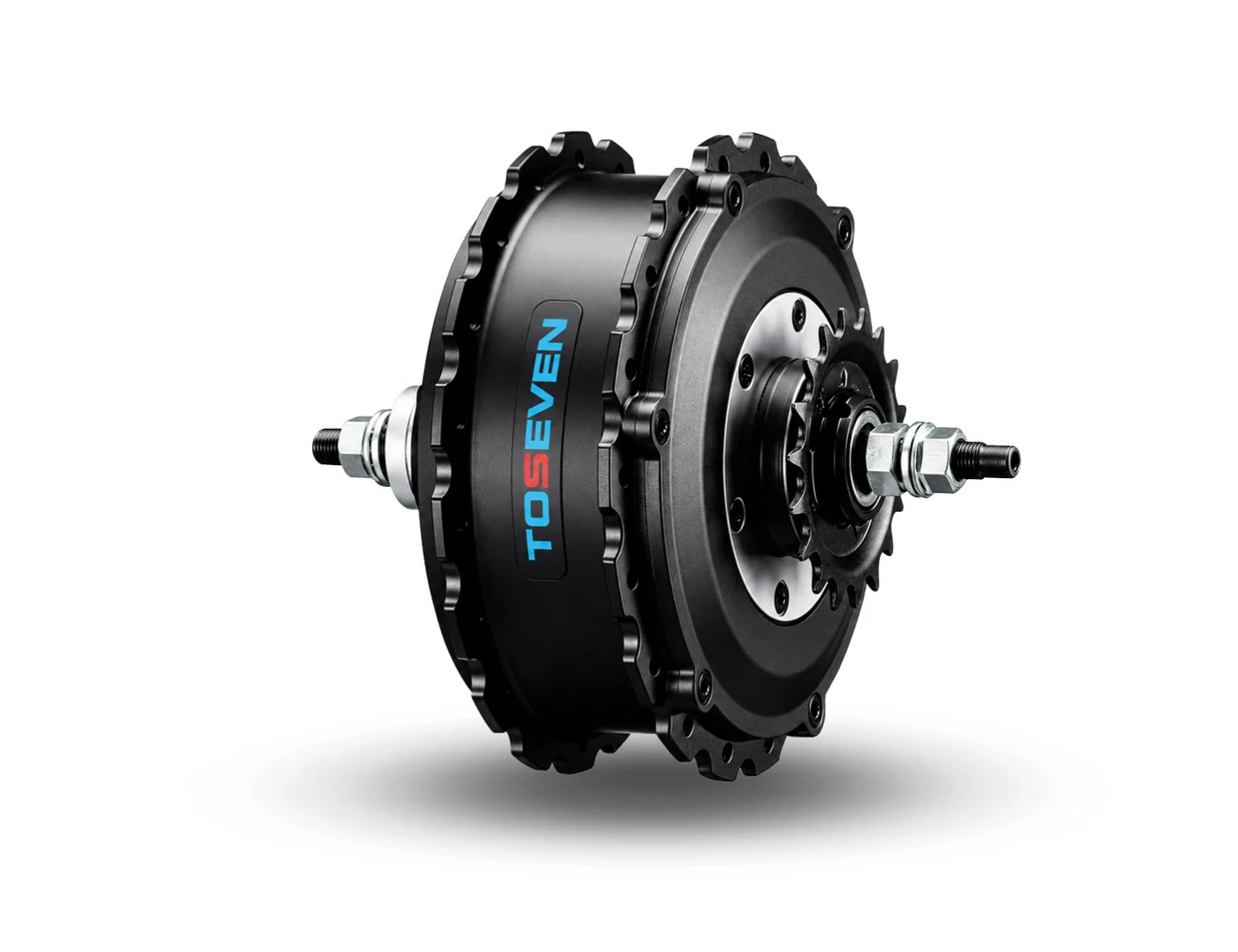

Inner 3-Speed Shift Hub Motors — L7 Series (Page 9)

O.L.D. (mm)

Rated Power (W)

Peak Torque (Nm)

Rated Voltage (V)

Housing Construction

Wheel Size

Sprocket Interface

Max Speed (km/h)

Reduction Ratio

Weight (kg)

135

250 - 350

38

24 / 36 / 48

Universal Compatibility

16 / 20 / 24 / 26 / 28 / 700C

Internal 3-Speed

35

1:1

160

250 - 500

45

24 / 36 / 48

Universal Compatibility

16 / 20 / 24 / 26 / 28 / 700C

Internal 3-Speed

45

1:1

Wide Compatibility for Most Bike Power 500W Hub Motor 3-Speed Internal Gear System High Efficiency and Low Noise Durable & Maintenance-Free L7 - 135N - 01 Rear Hub L7 - 160N - 02 Rear Hub 06 INNER 3 SPEED SHIFT Smooth Shifting, Stronger Riding Max Speed 45 km/h TOSEVEN

-

Inner 3 Speed Shift

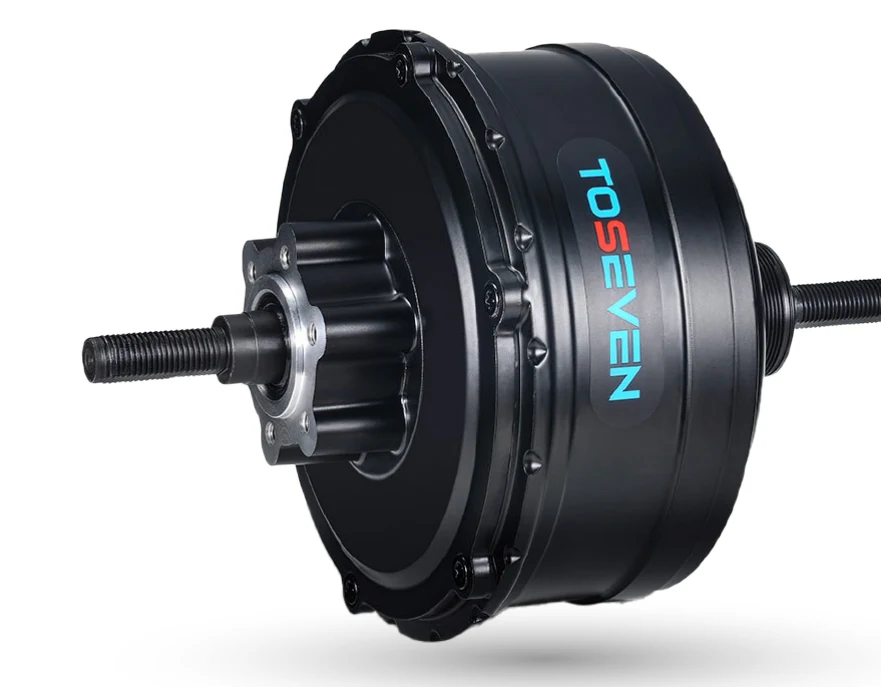

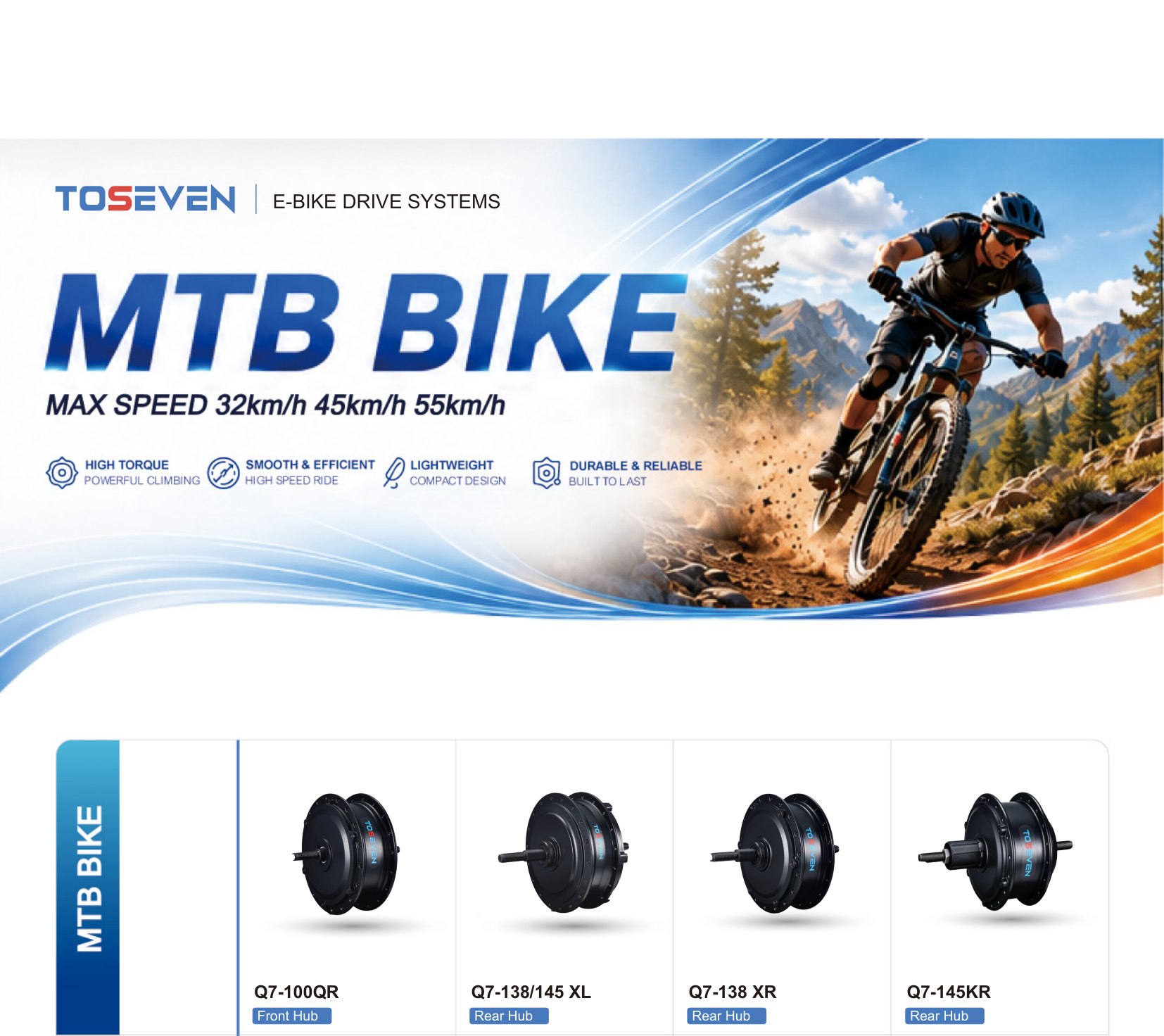

MTB Bike Hub Motors — Q7 Series (Page 10)

O.L.D (mm)

Rated Power (W)

Peak Torque (N.m)

Rated Voltage (V)

Housing Architecture

Wheel Size

Sprocket Interface

Max Speed (km/h)

Reduction Ratio

Weight (kg)

100

350 - 500

65

36 / 48

Universal Compatibility

20 / 26 / 29 (700C)

-

45

5:1

3.4

138 / 145

350 - 500

65

36 / 48

Universal Compatibility

20 / 26 / 29 (700C)

6 - 7 speed

45

5:1

3.6

138

350 - 500

65

36 / 48

Universal Compatibility

20 / 26 / 29 (700C)

6 - 7 speed

45

5:1

3.5

145

350 - 500

65

36 / 48

Universal Compatibility

20 / 26 / 29 (700C)

8 - 10 speed

45

5:1

3.5

Q7-100QR Front Hub Q7-138/145 XL Rear Hub Q7-138 XR Rear Hub Q7-145KR Rear Hub 07 MTB BIKE MAX SPEED 32km/h 45km/h 55km/h High Torque Powerful Climbing Smooth & Efficient High Speed Ride Lightweight Compact Design Durable & Reliable Built To Last

Mtb Bike

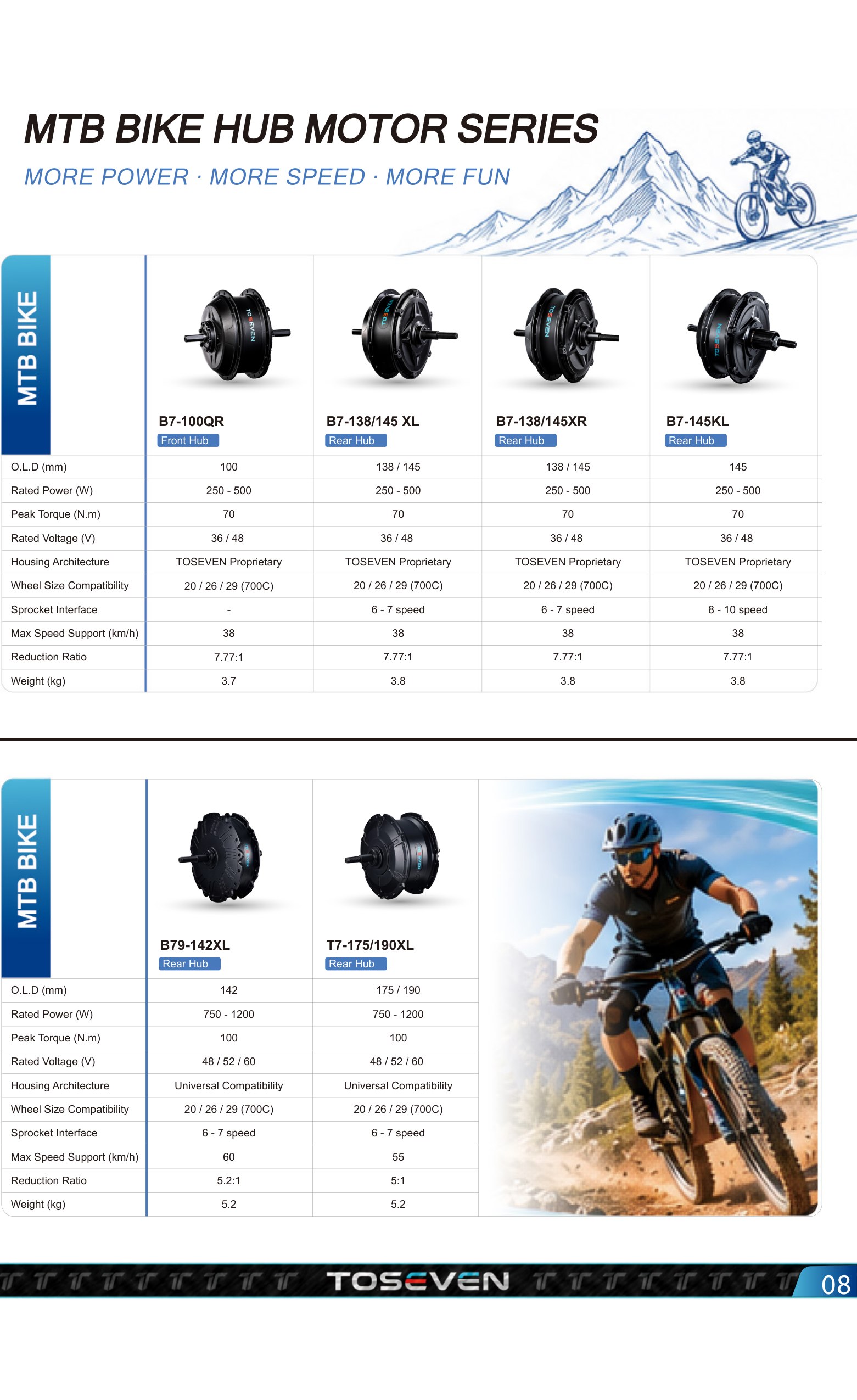

B7-100QR

Front Hub

B7-138/145 XL

Rear Hub

B7-138/145XR

Rear Hub

B7-145KL

Rear Hub

O.L.D (mm)	100	138 / 145	138 / 145	145
Rated Power (W)	250 - 500	250 - 500	250 - 500	250 - 500
Peak Torque (N.m)	70	70	70	70
Rated Voltage (V)	36 / 48	36 / 48	36 / 48	36 / 48
Housing Architecture	TOSEVEN Proprietary	TOSEVEN Proprietary	TOSEVEN Proprietary	TOSEVEN Proprietary
Wheel Size	20 / 26 / 29 (700C)	20 / 26 / 29 (700C)	20 / 26 / 29 (700C)	20 / 26 / 29 (700C)
Sprocket Interface	-	6 - 7 speed	6 - 7 speed	8 - 10 speed
Max Speed (km/h)	38	38	38	38
Reduction Ratio	7.77:1	7.77:1	7.77:1	7.77:1
Weight (kg)	3.7	3.8	3.8	3.8

B79-142XL

Rear Hub

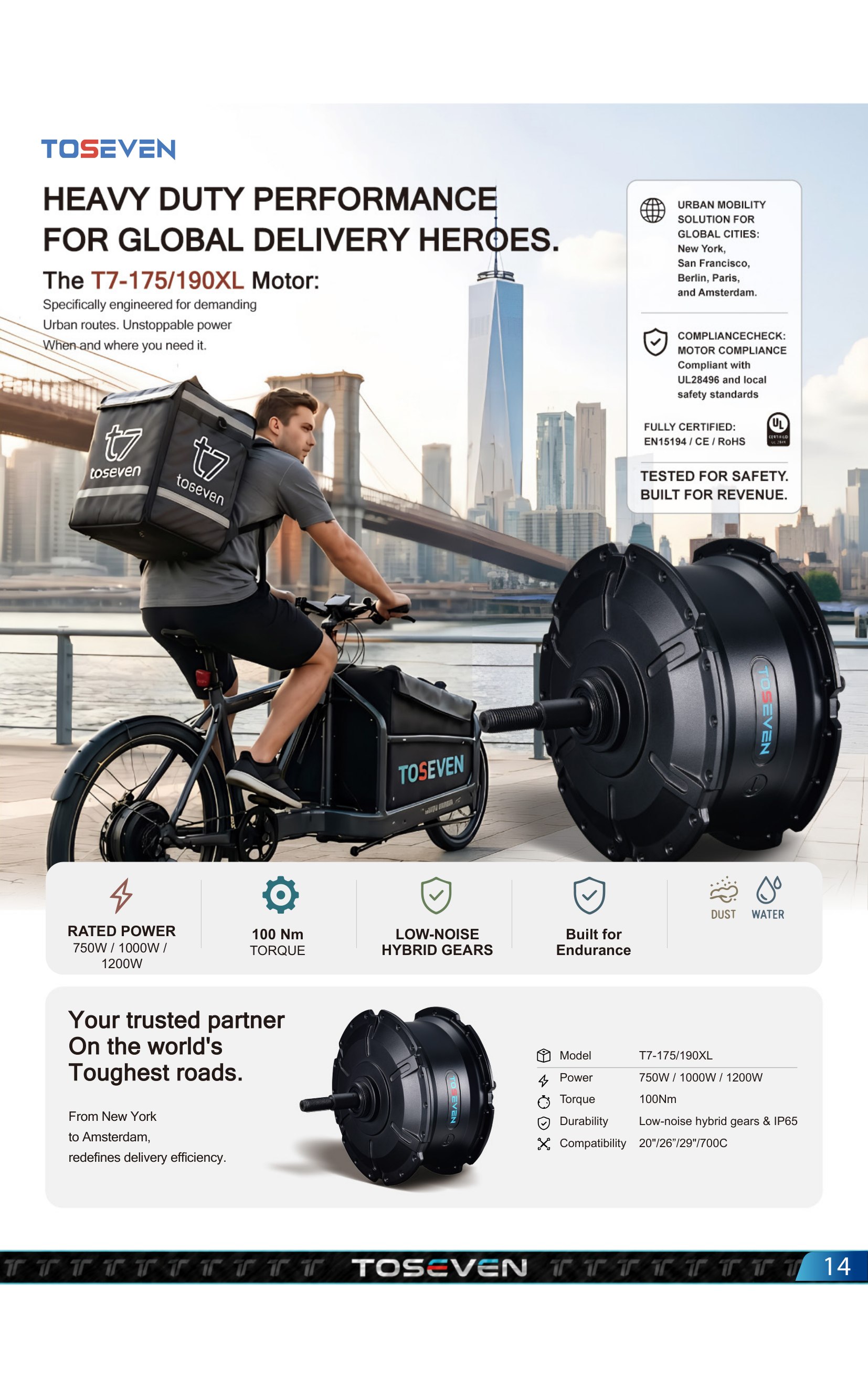

T7-175/190XL

Rear Hub

O.L.D (mm)	142	175 / 190
Rated Power (W)	750 - 1200	750 - 1200
Peak Torque (N.m)	100	100
Rated Voltage (V)	48 / 52 / 60	48 / 52 / 60
Housing Architecture	Universal Compatibility	Universal Compatibility
Wheel Size	20 / 26 / 29 (700C)	20 / 26 / 29 (700C)
Sprocket Interface	6 - 7 speed	6 - 7 speed
Max Speed (km/h)	60	55
Reduction Ratio	5.2:1	5:1
Weight (kg)	5.2	5.2

08 Mtb Bike Hub Motor Series MORE POWER · MORE SPEED · MORE FUN

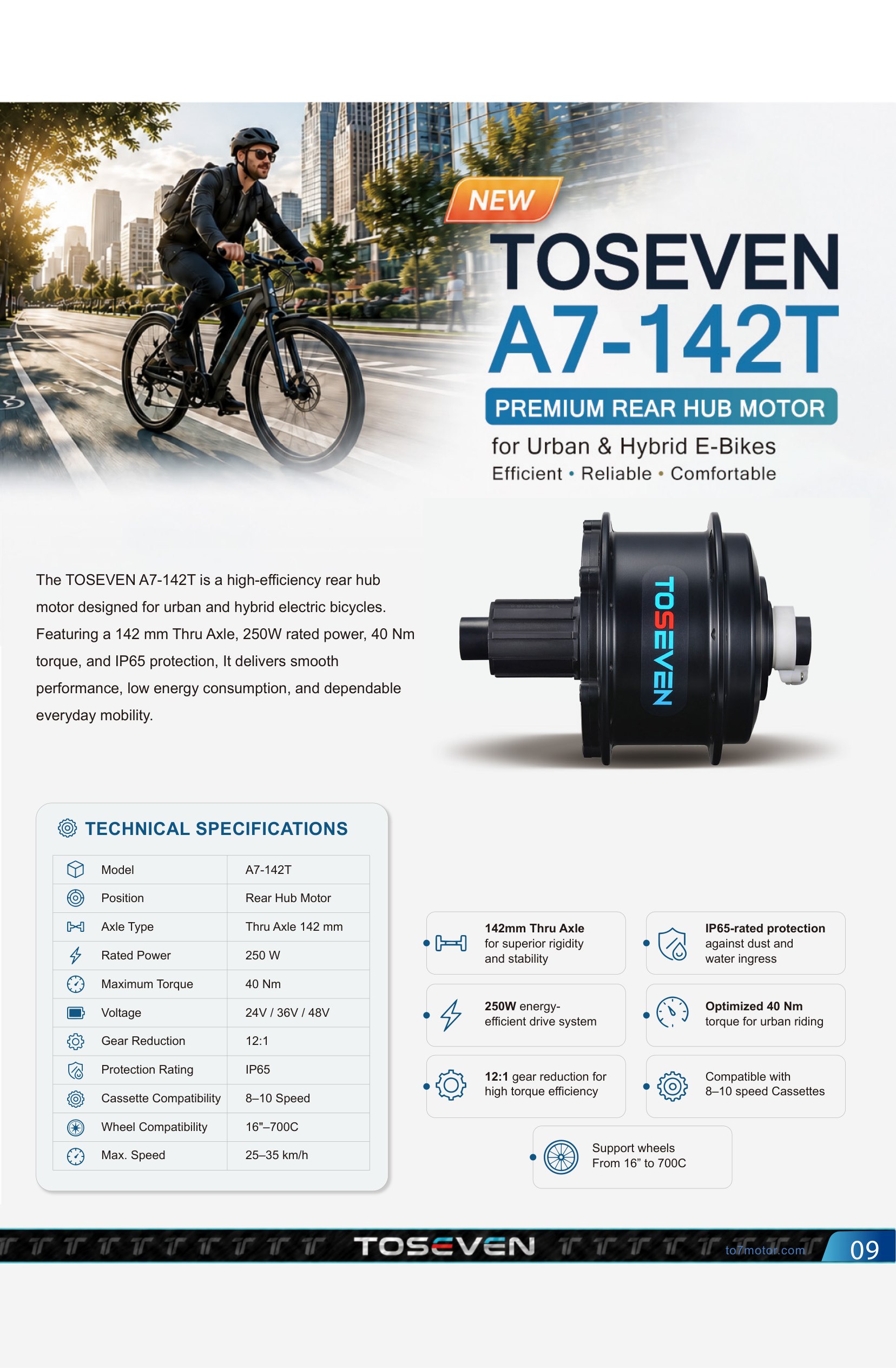

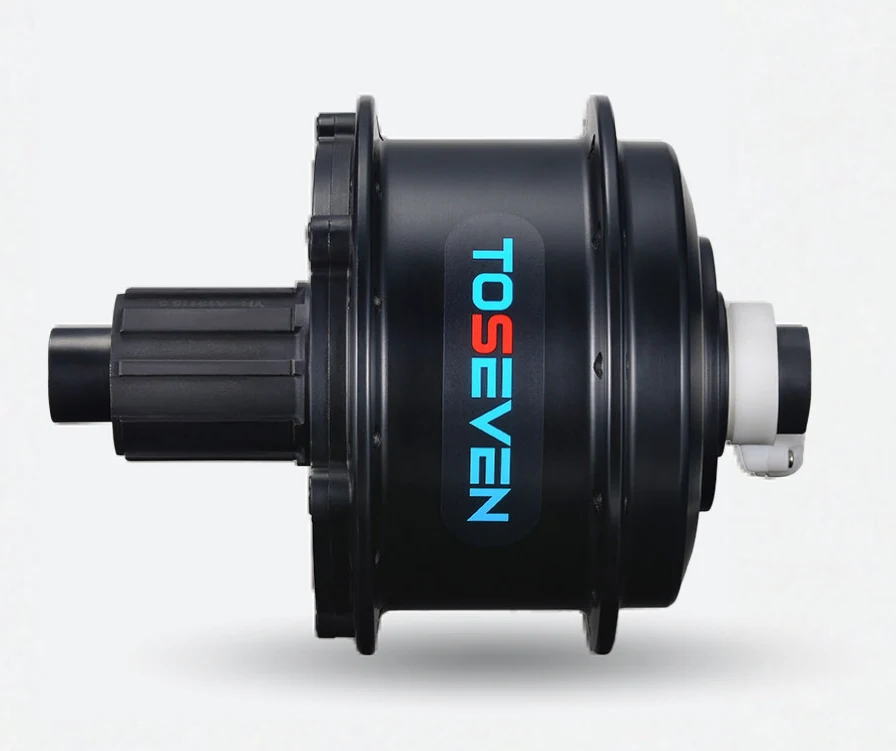

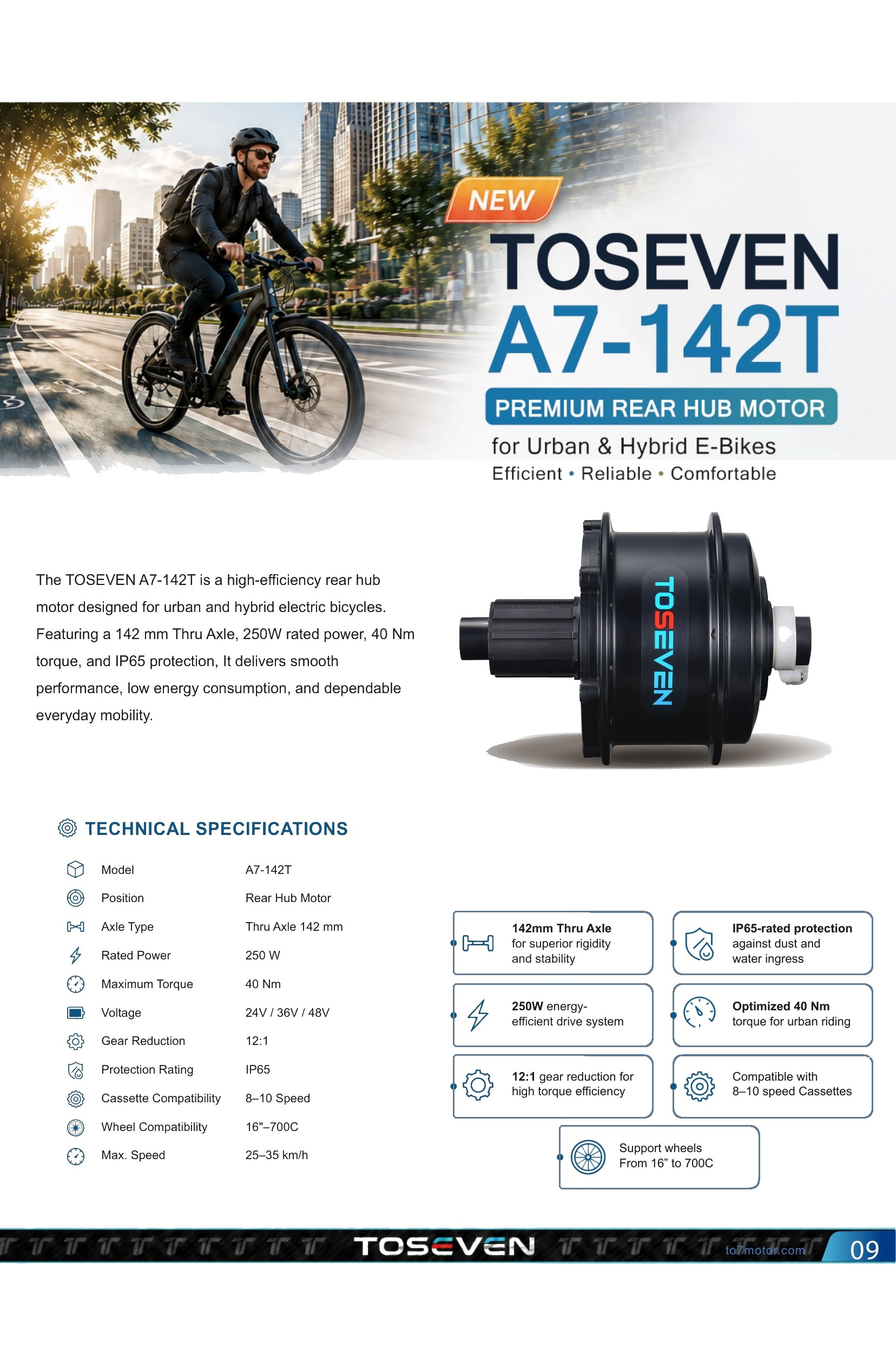

A7-142T Premium Rear Hub Motor (Page 12)

Technical Specifications:

Model	A7-142T
Position	Rear Hub Motor
Axle Type	Thru Axle 142 mm
Rated Power	250 W
Maximum Torque	40 Nm
Voltage	24V / 36V / 48V
Gear Reduction	12:1
Protection Rating	IP65
Cassette Compatibility	8–10 Speed
Wheel Compatibility	16"–700C
Max. Speed	25–35 km/h

alt=""> The TOSEVEN A7-142T is a high-efficiency rear hub motor designed for urban and hybrid electric bicycles. Featuring a 142 mm Thru Axle, 250W rated power, 40 Nm torque, and IP65 protection, It delivers smooth performance, low energy consumption, and dependable everyday mobility. 142mm Thru Axle for superior rigidity and stability IP65-rated protection against dust and water ingress 250W energy- efficient drive system Optimized 40 Nm torque for urban riding 12:1 gear reduction for high torque efficiency Compatible with 8–10 speed Cassettes Support wheels From 16” to 700C Core Advantages 09 NEW TOSEVEN A7-142T Premium Rear Hub Motor for Urban & Hybrid E-Bikes Efficient • Reliable • Comfortable TOSEVEN Page footer badge

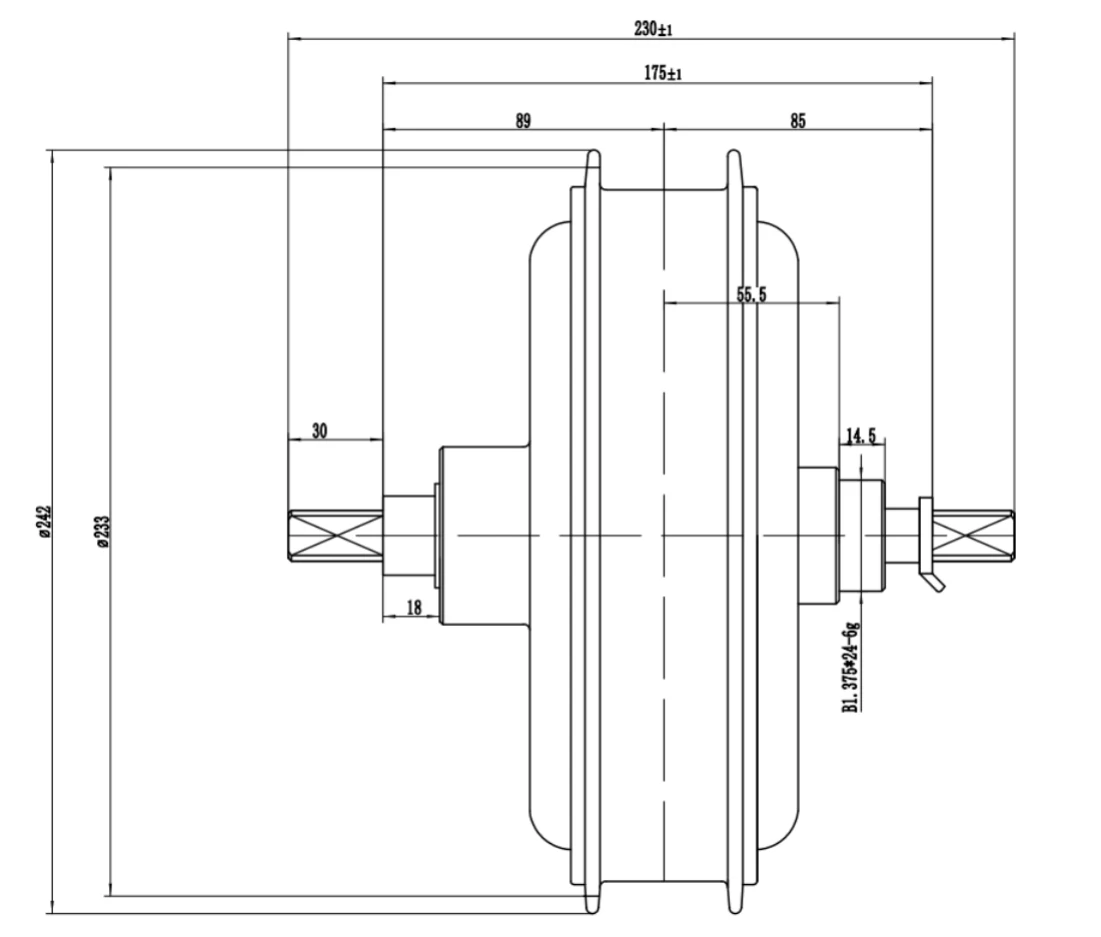

DIMENSIONS (mm)

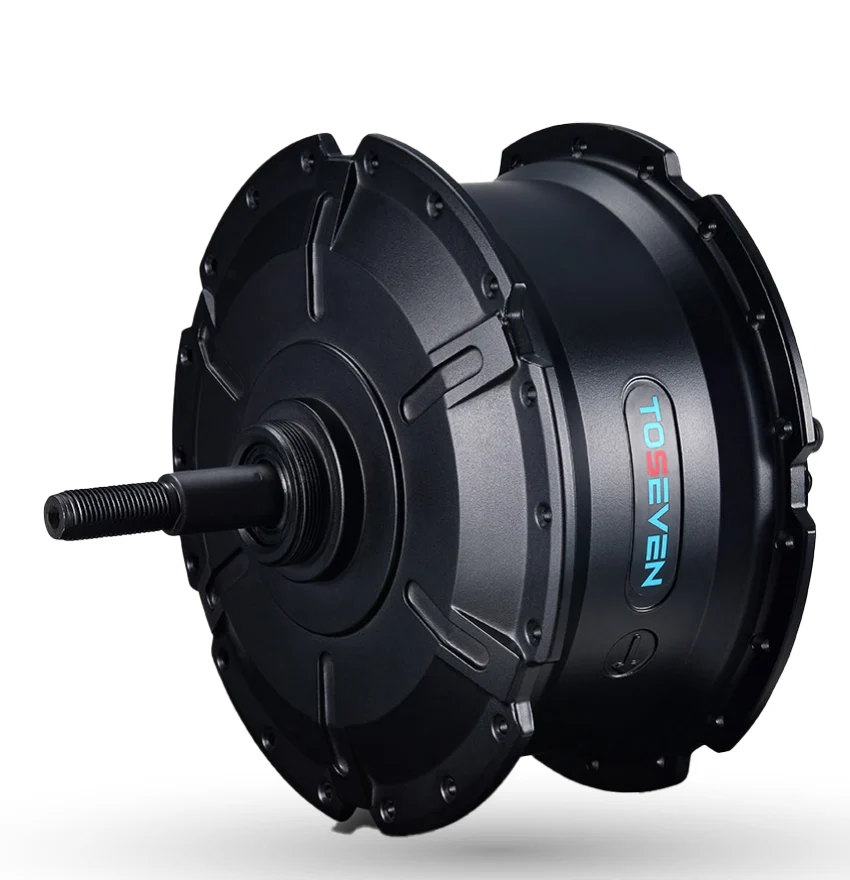

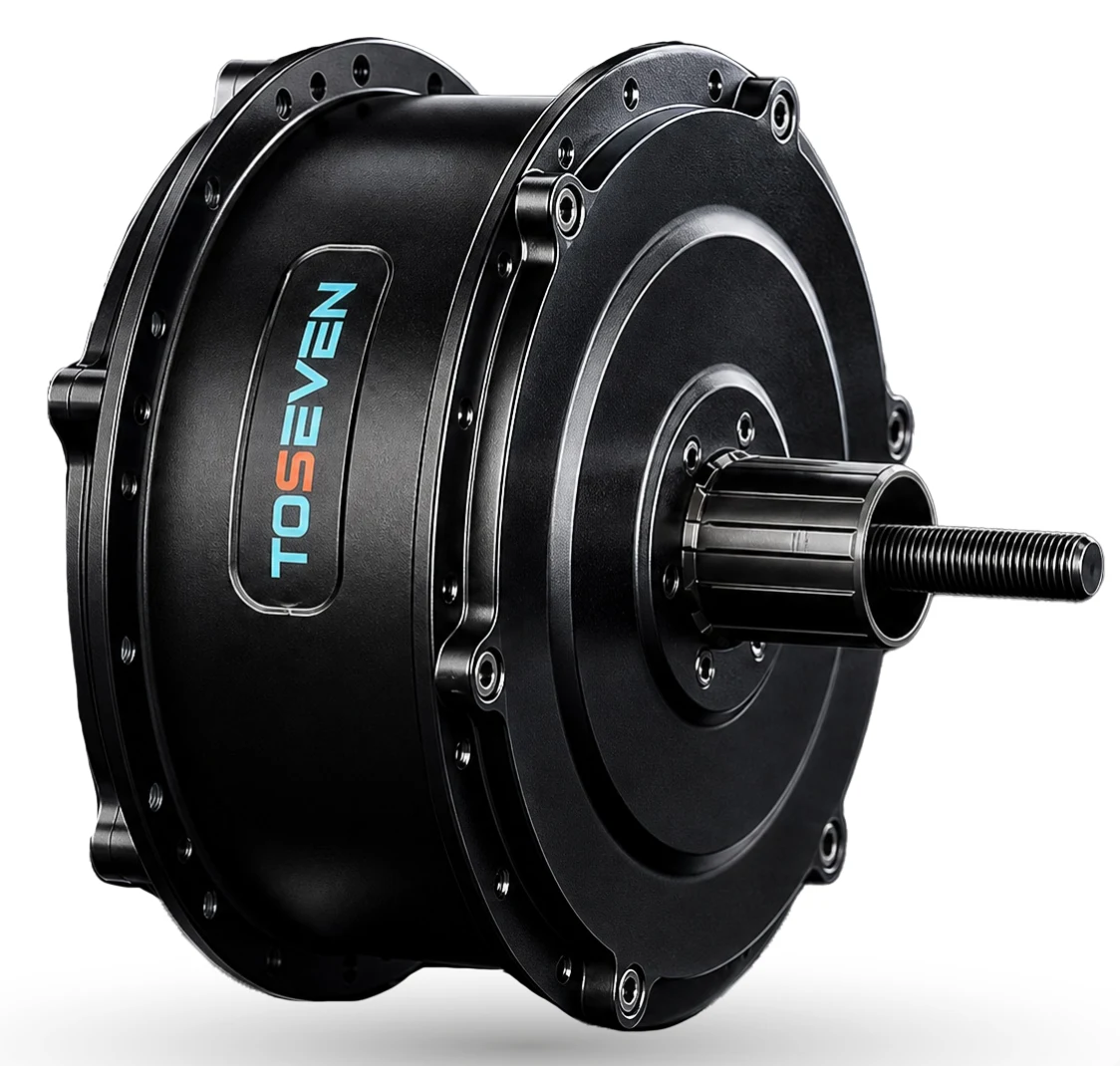

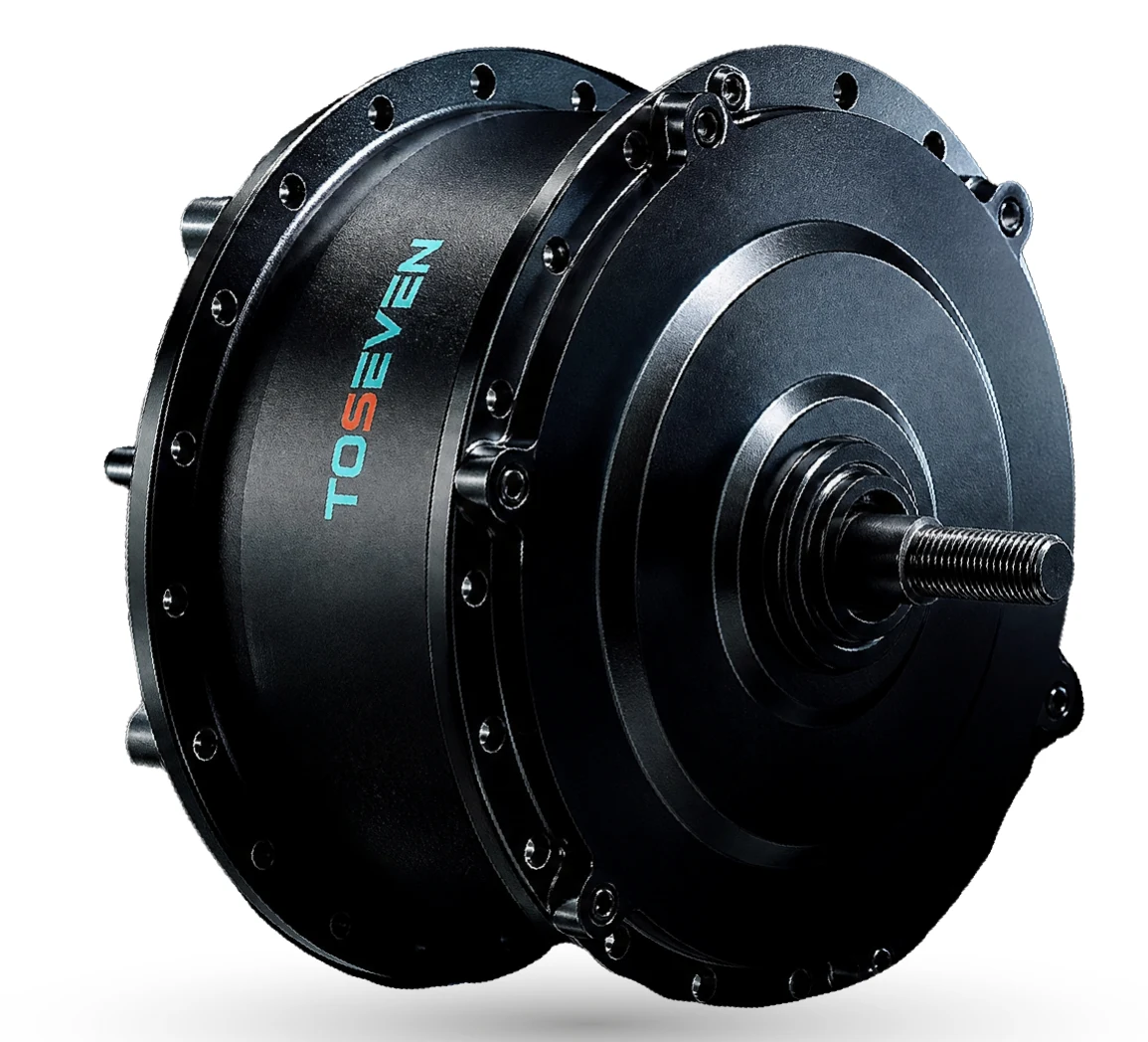

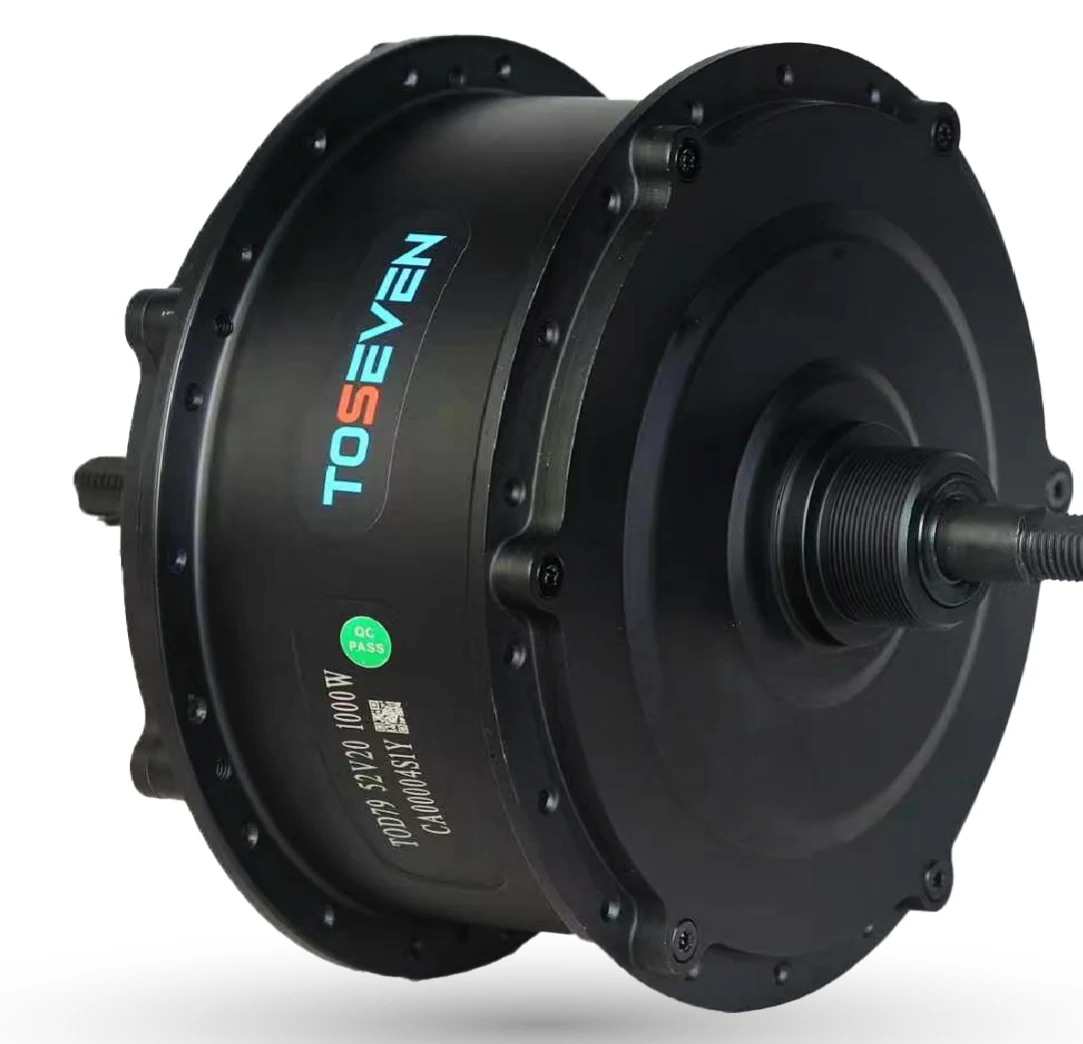

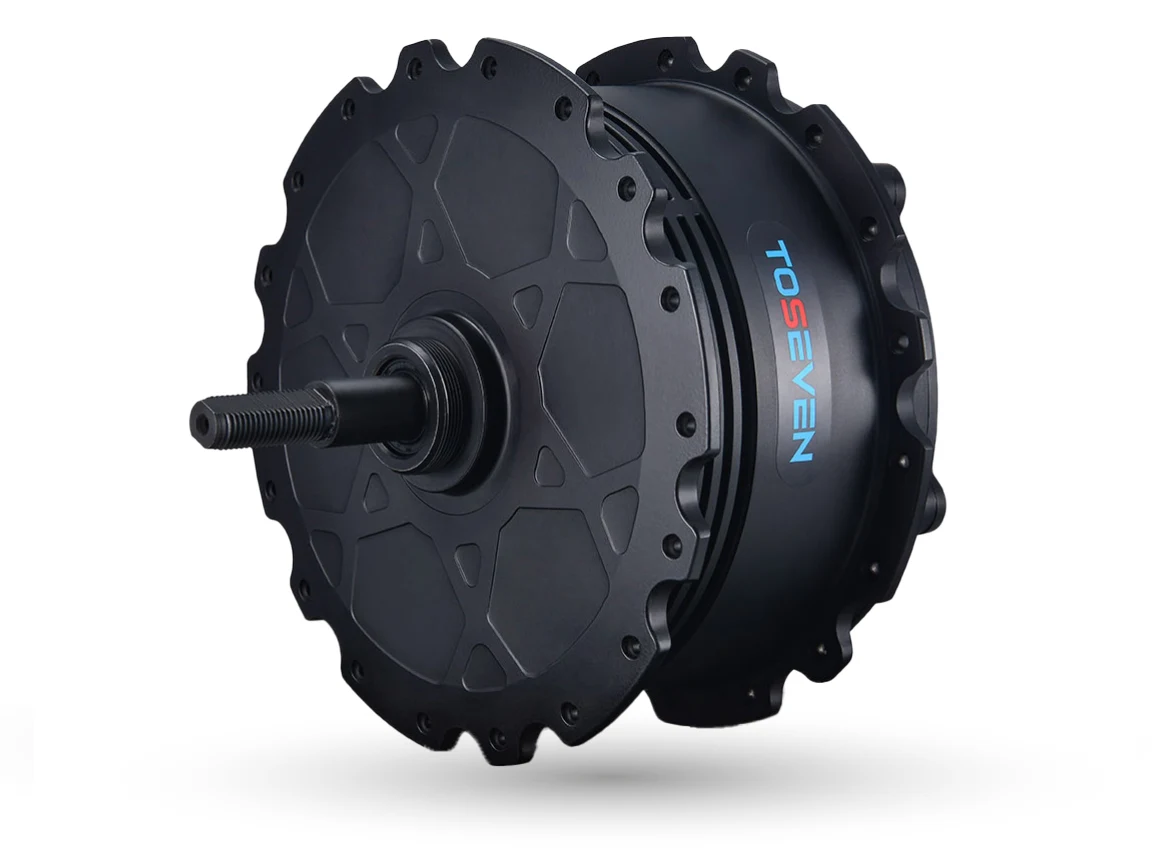

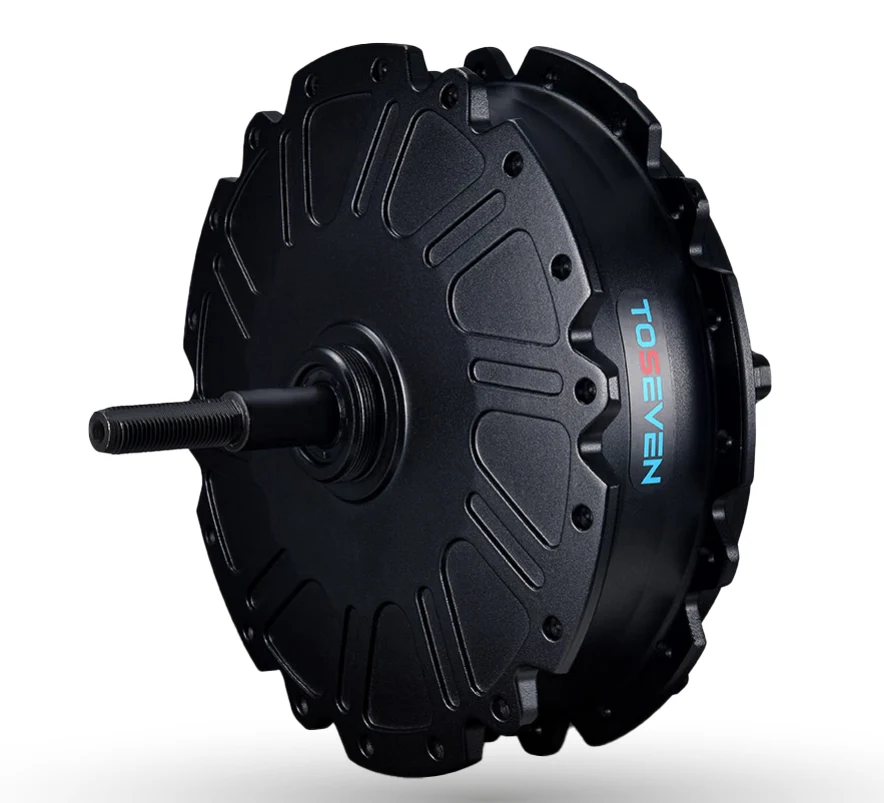

Fat Tire Hub Motors — D79 Series (Page 13)

O.L.D (mm)

Rated Power (W)

Peak Torque (N.m)

Rated Voltage (V)

Housing Architecture

Wheel Size

Sprocket Interface

Max Speed (km/h)

Reduction Ratio

Weight (kg)

140

1000 - 2000

140

48 / 52
/ 60 / 72

TOSEVEN Proprietary

20 / 26

-

60

5.8 : 1

5.9

175 / 190

1000 - 2000

140

48 / 52
/ 60 / 72

TOSEVEN Proprietary

20 / 26

6 - 7 speed

60

5.8 : 1

6 / 6.1

175 / 190

1000 - 2000

140

48 / 52
/ 60 / 72

TOSEVEN Proprietary

20 / 26

8 - 10 speed

60

5.8 : 1

6 / 6.1

175

1000 - 2000

140

48 / 52
/ 60 / 72

TOSEVEN Proprietary

20 / 26

Belt Sprocket

60

5.8 : 1

6.2

175 / 190

1000 - 2000

140

48 / 52
/ 60 / 72

Universal Compatibility

20 / 26

6 - 7 speed

60

5.11 : 1

6

D79-140QL Front Hub D79C-175XL/190XL Rear Hub D79-175XL/190XL Rear Hub D79-175KL/190KL Rear Hub D79-175PL Rear Hub Belt Drive 10 Max 2000W High Speed Hub Motor FAT TIRE Powerful. Durable. Built for Adventure. 2000W Max Power High Speed Performance Fat Tire Ready Rugged & Reliable All-Terrain Adventures

Fat Tire

O.L.D (mm)

Rated Power (W)

Peak Torque (N.m)

Rated Voltage (V)

Housing Architecture

Wheel Size

Sprocket Interface

Max Speed (km/h)

Reduction Ratio

Weight (kg)

135

175 / 190 / 195

175 / 190

350 - 750

90

85

36 / 48 / 52 / 60

TOSEVEN Proprietary

TOSEVEN Compatibility

20/26/28/700C

20 / 26 / 28 / 700C

-

6 - 7 speed

8 - 10 speed

6 - 7 speed

45

7.77:1

5:1/5.2:1

4

4.1

4.2

O.L.D (mm)

Rated Power (W)

Peak Torque (N.m)

Rated Voltage (V)

Housing Architecture

Wheel Size

Sprocket Interface

Max Speed (km/h)

Reduction Ratio

Weight (kg)

135

175 / 190

350 - 750

85

36 / 48
/ 52 / 60

Universal Compatibility

20 / 26 /
700C / 29

-

6 - 7 speed

Single Speed

50

5:1 / 5.2:1

4

4.3

4.2

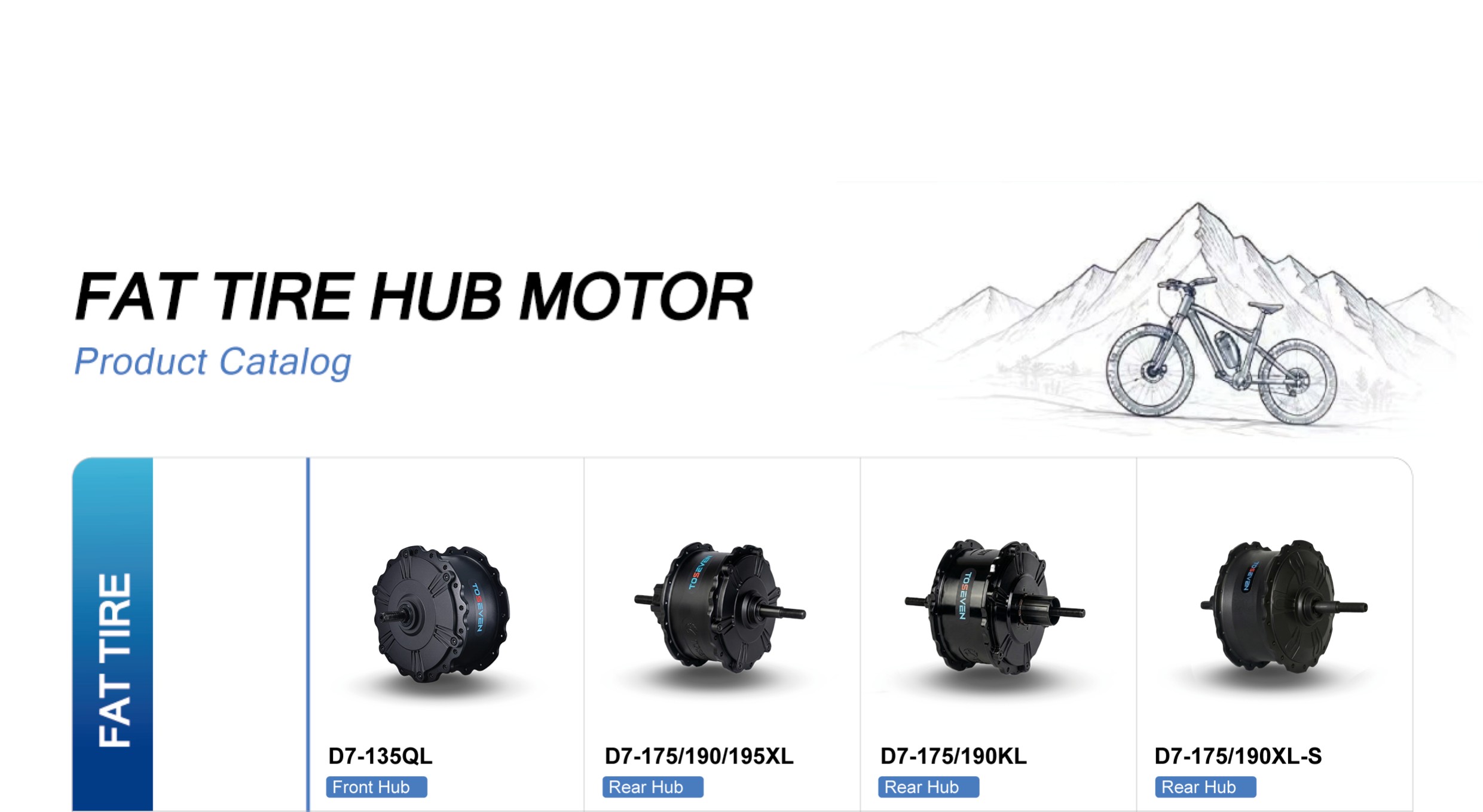

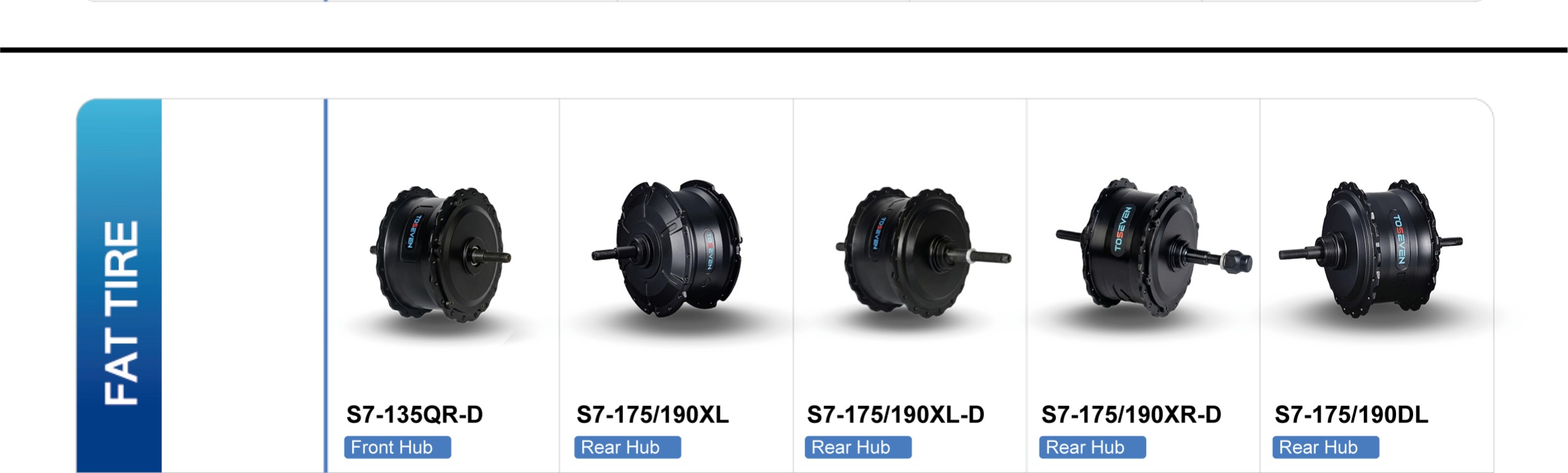

11 Fat Tire Hub Motor Product Catalog D7-135QL D7-175/190/195XL D7-175/190KL D7-175/190XL-S Front Hub Rear Hub Rear Hub Rear Hub S7-135QR-D S7-175/190XL S7-175/190XL-D S7-175/190XR-D S7-175/190DL Front Hub Rear Hub Rear Hub Rear Hub Rear Hub TOSEVEN

Fat TireFat Tire

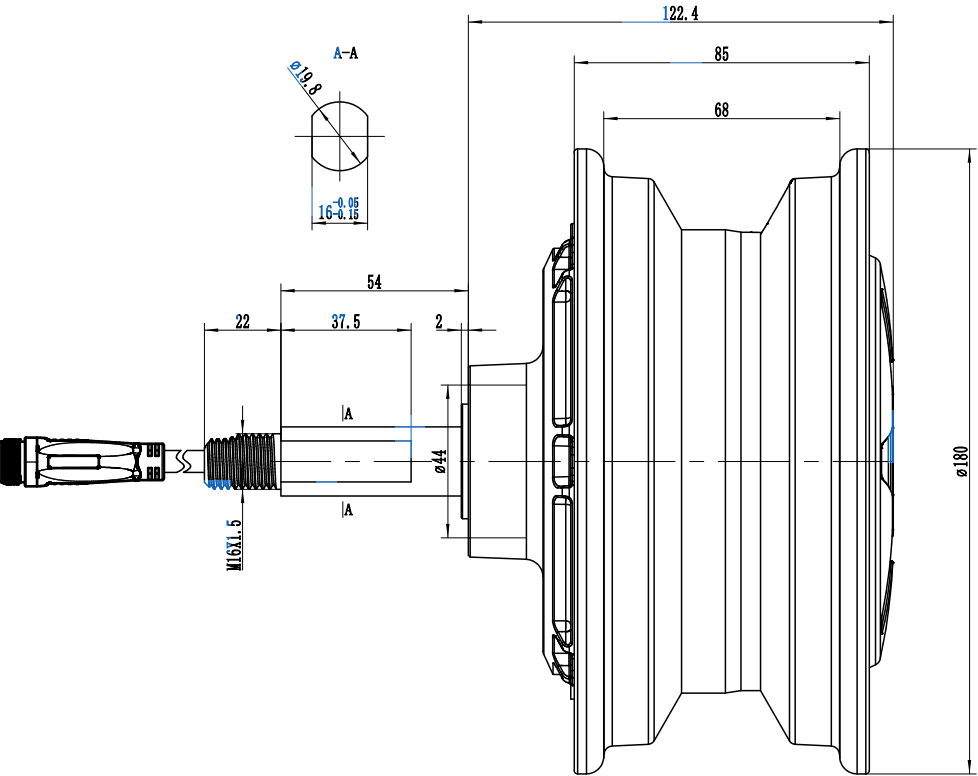

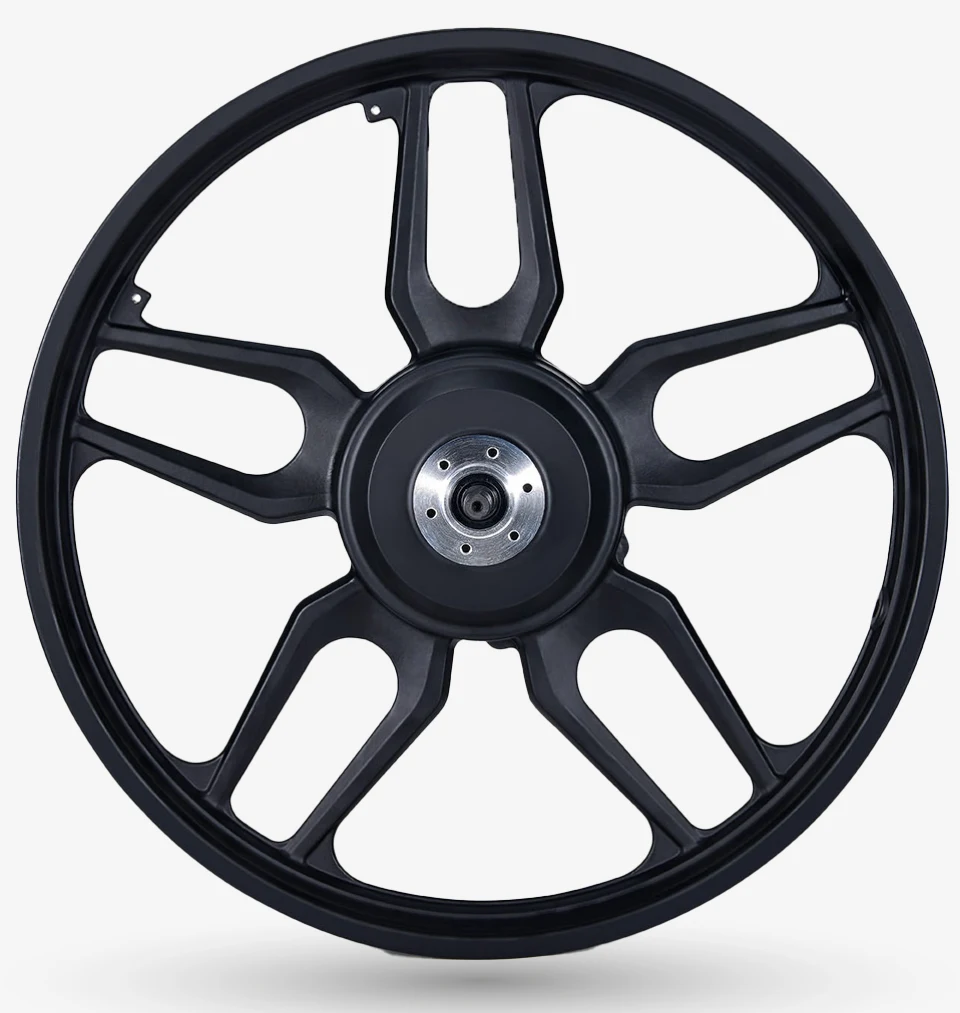

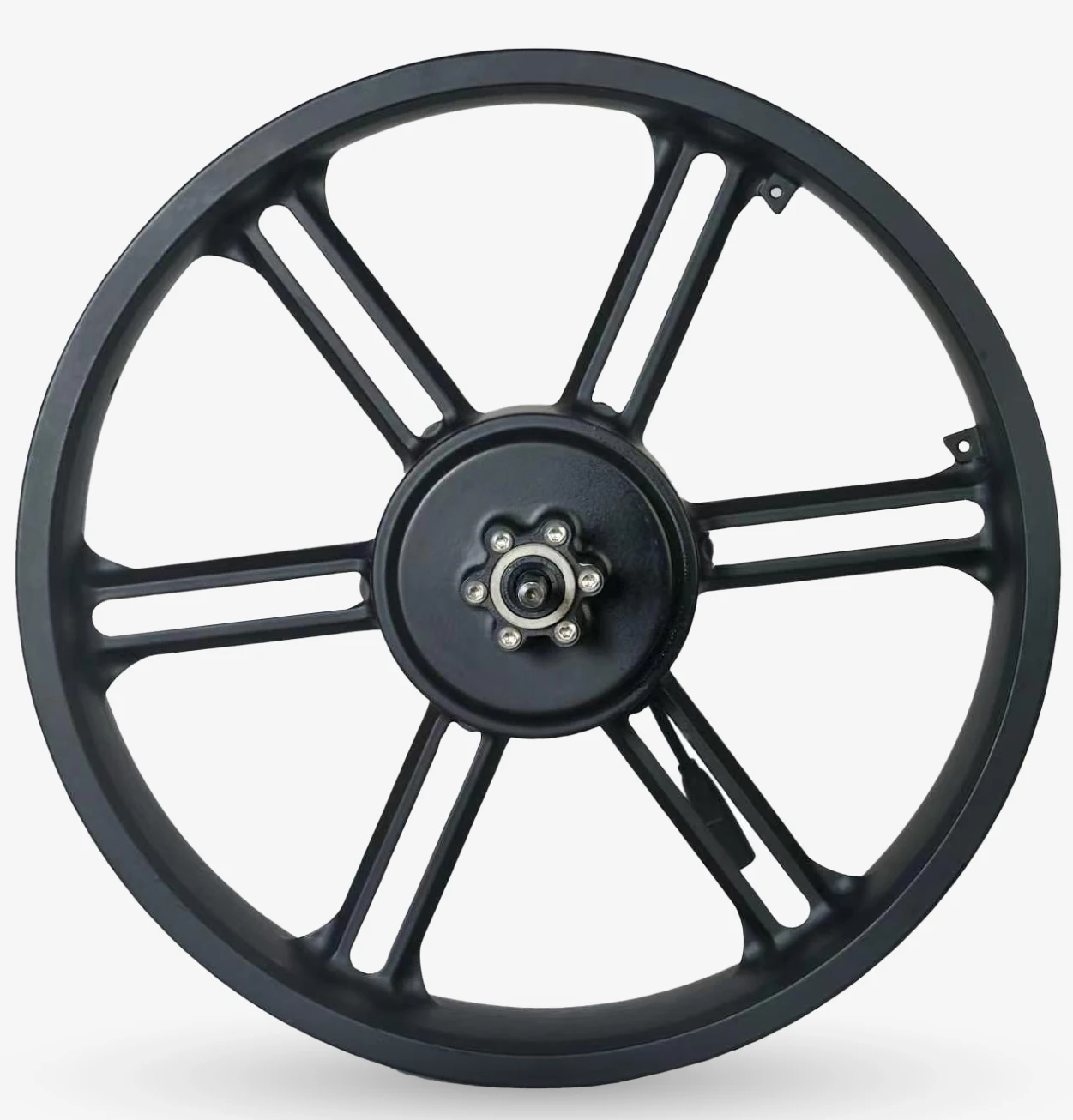

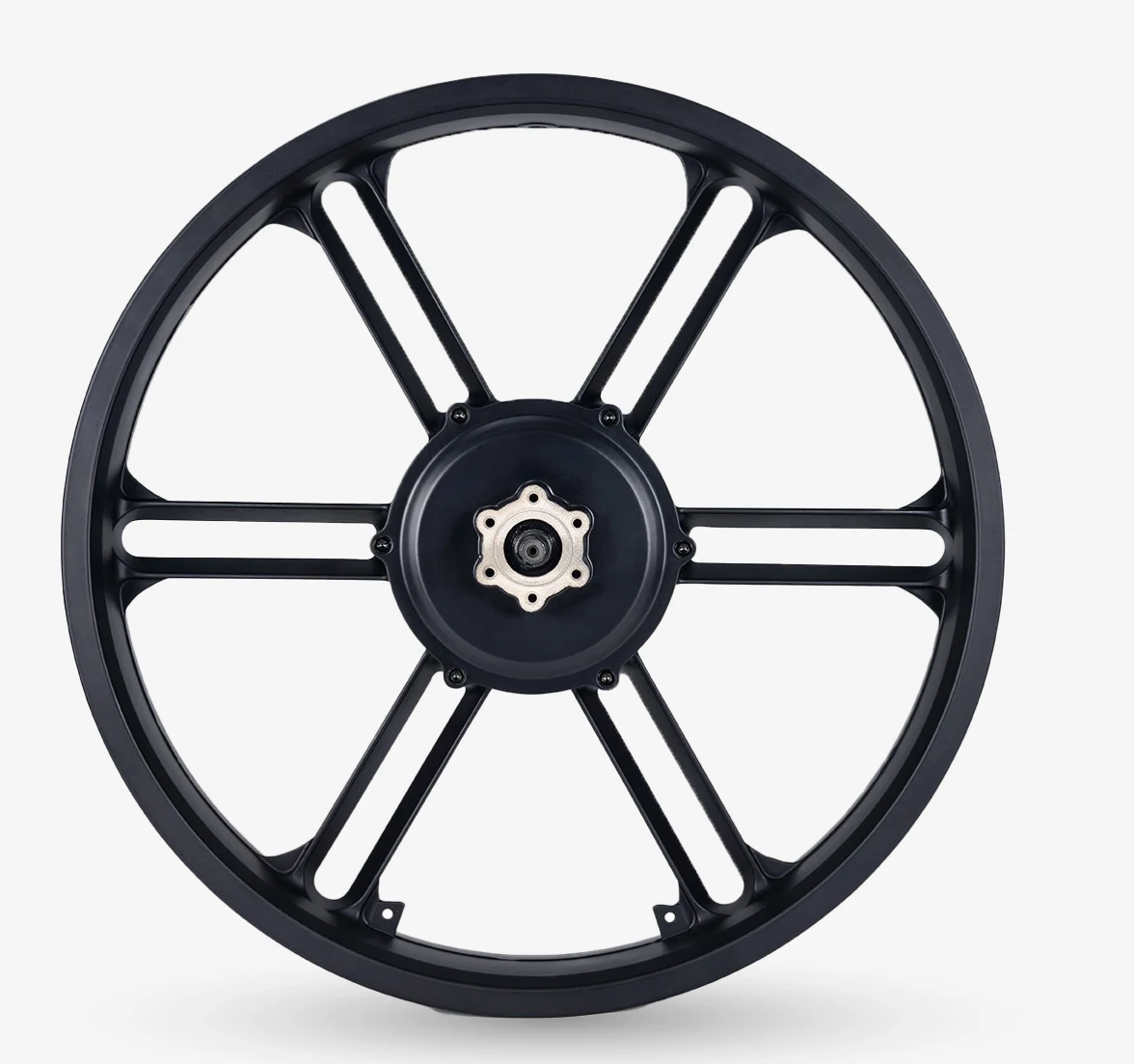

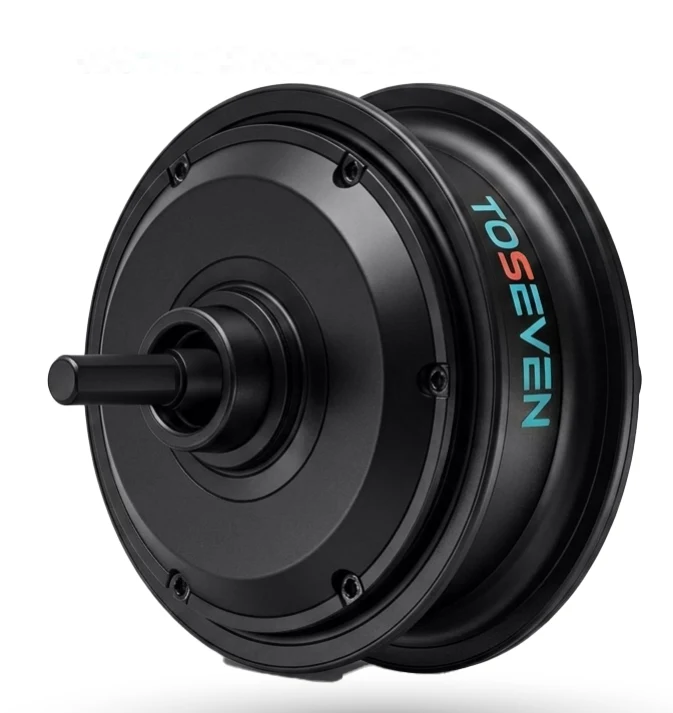

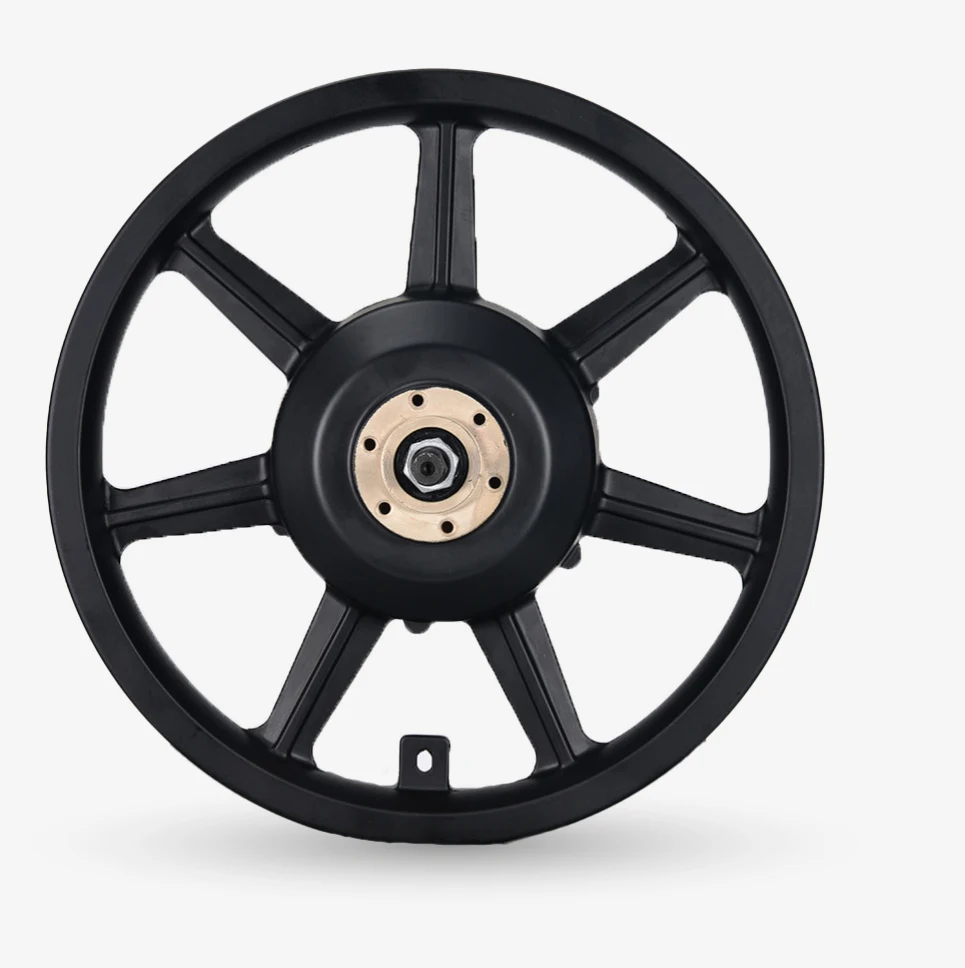

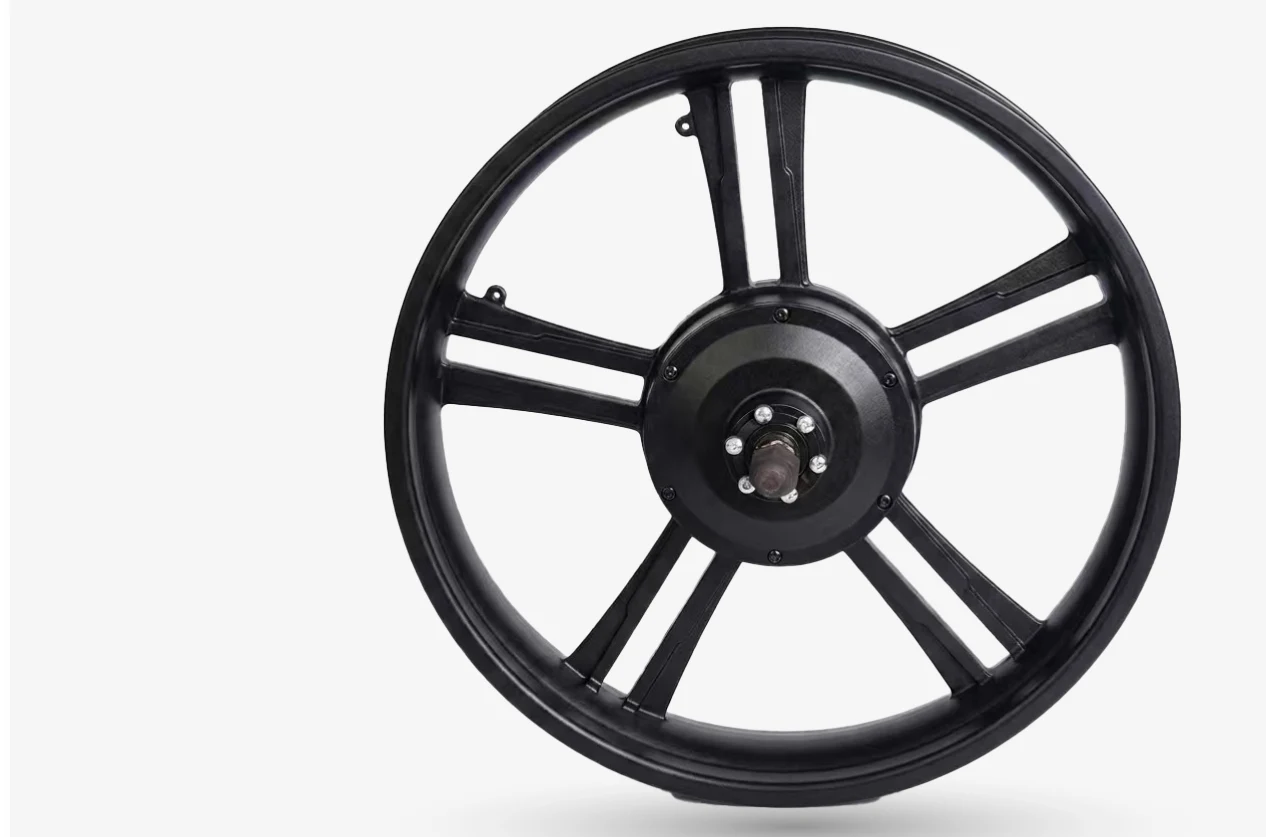

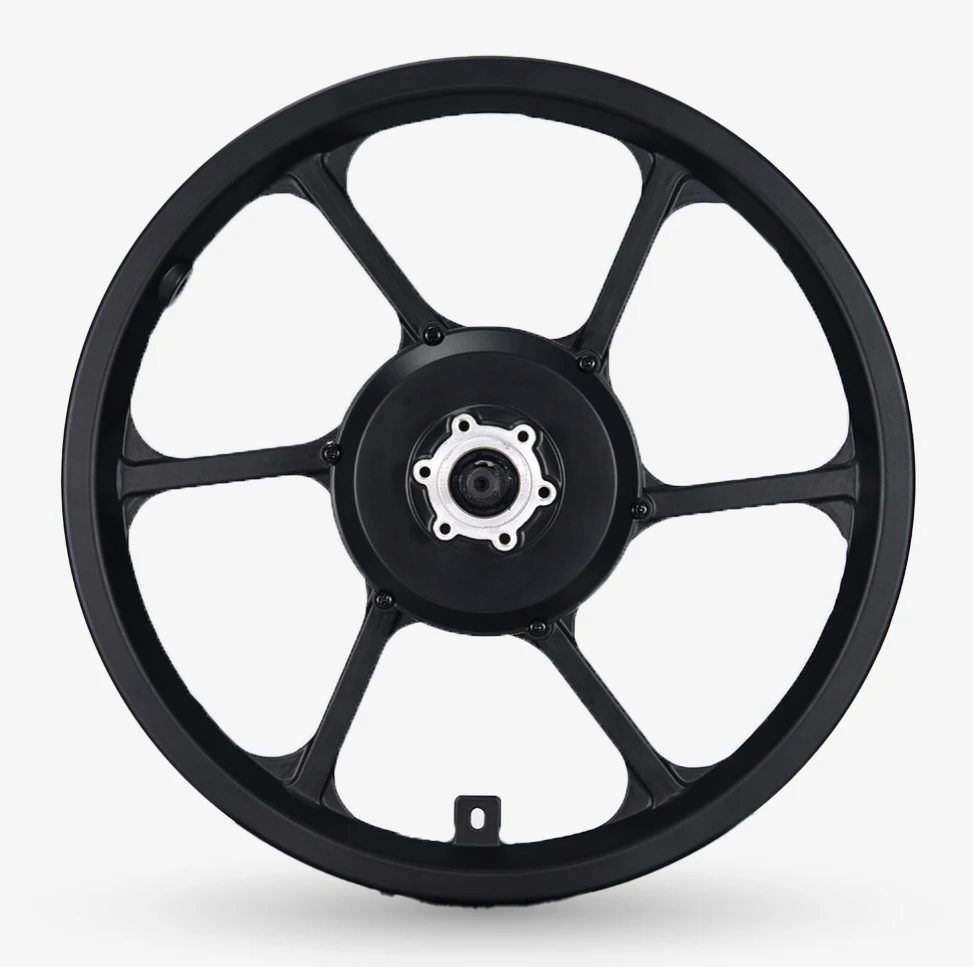

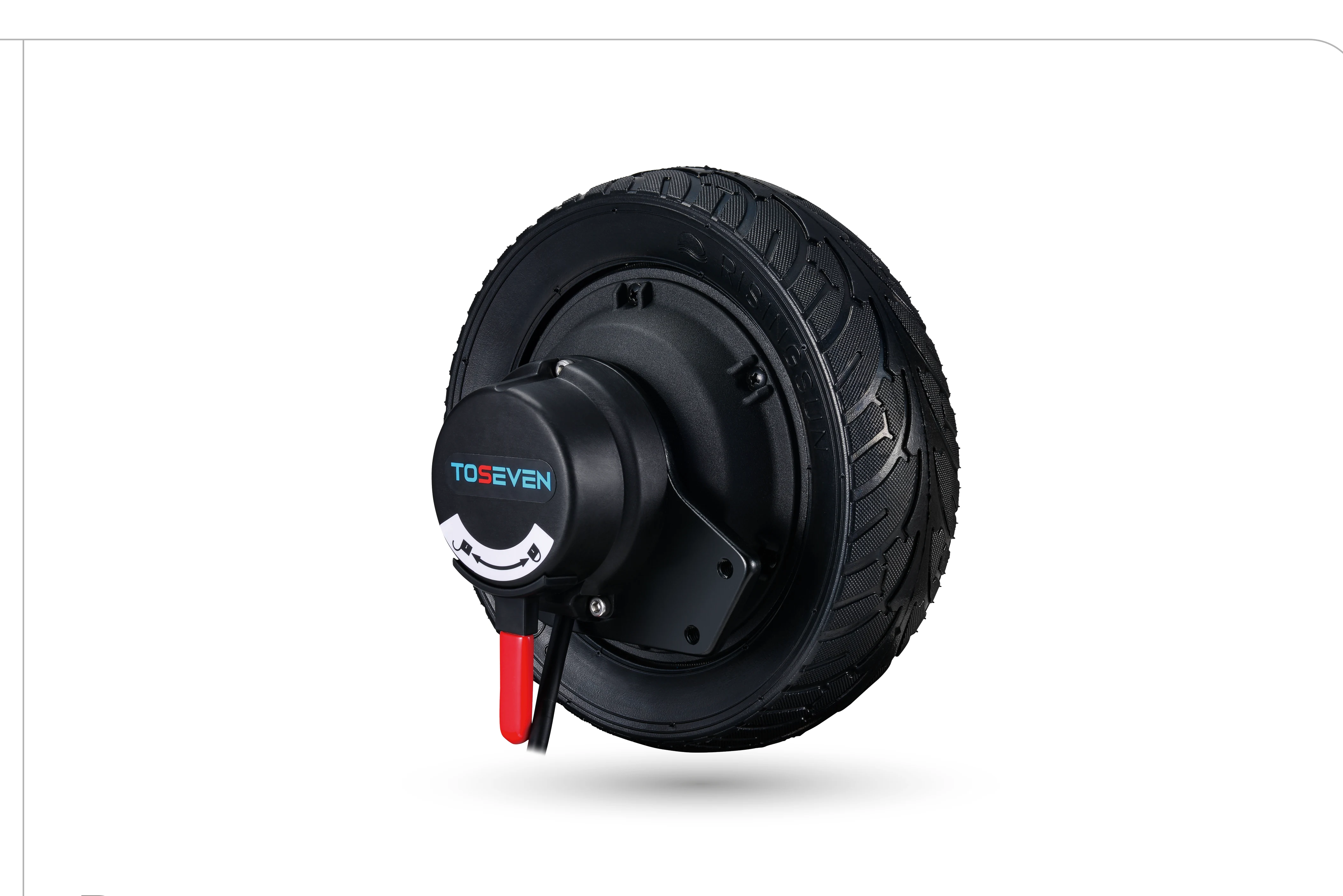

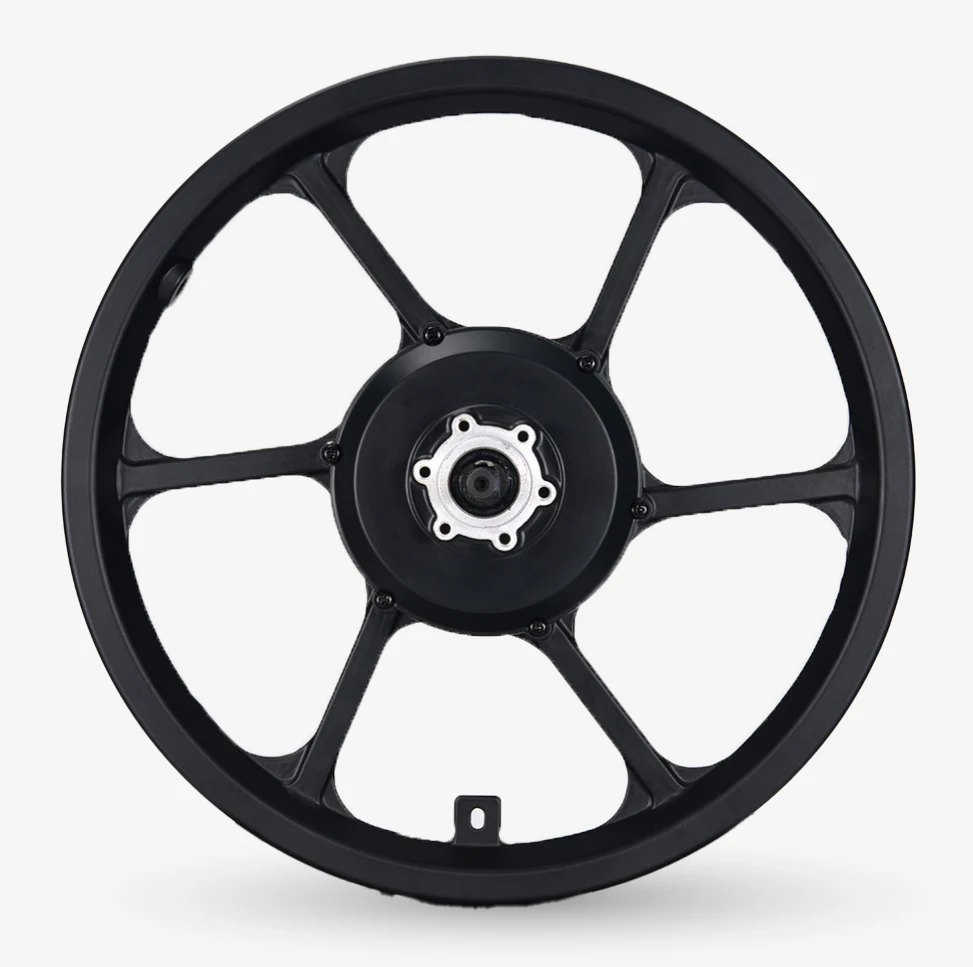

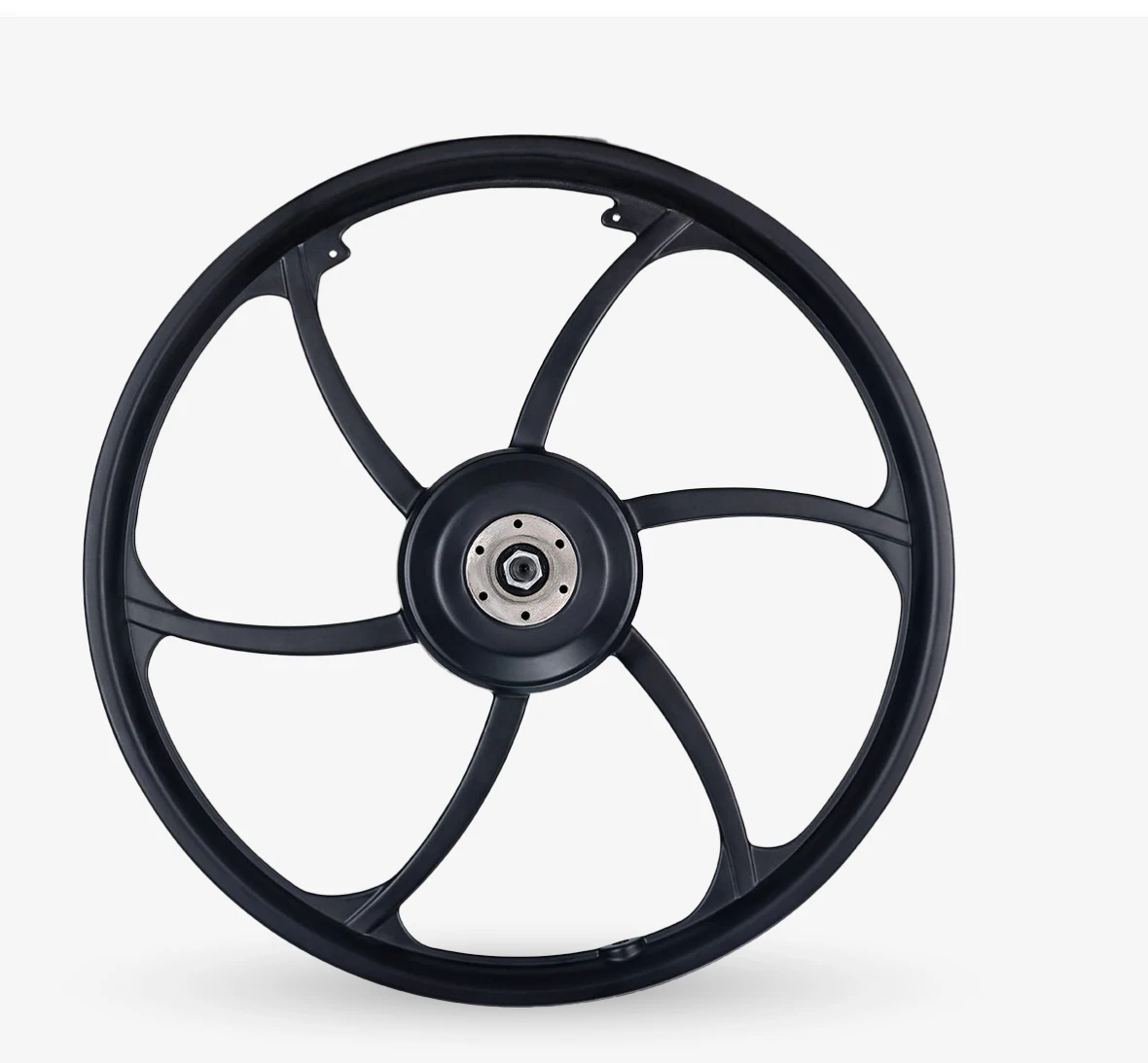

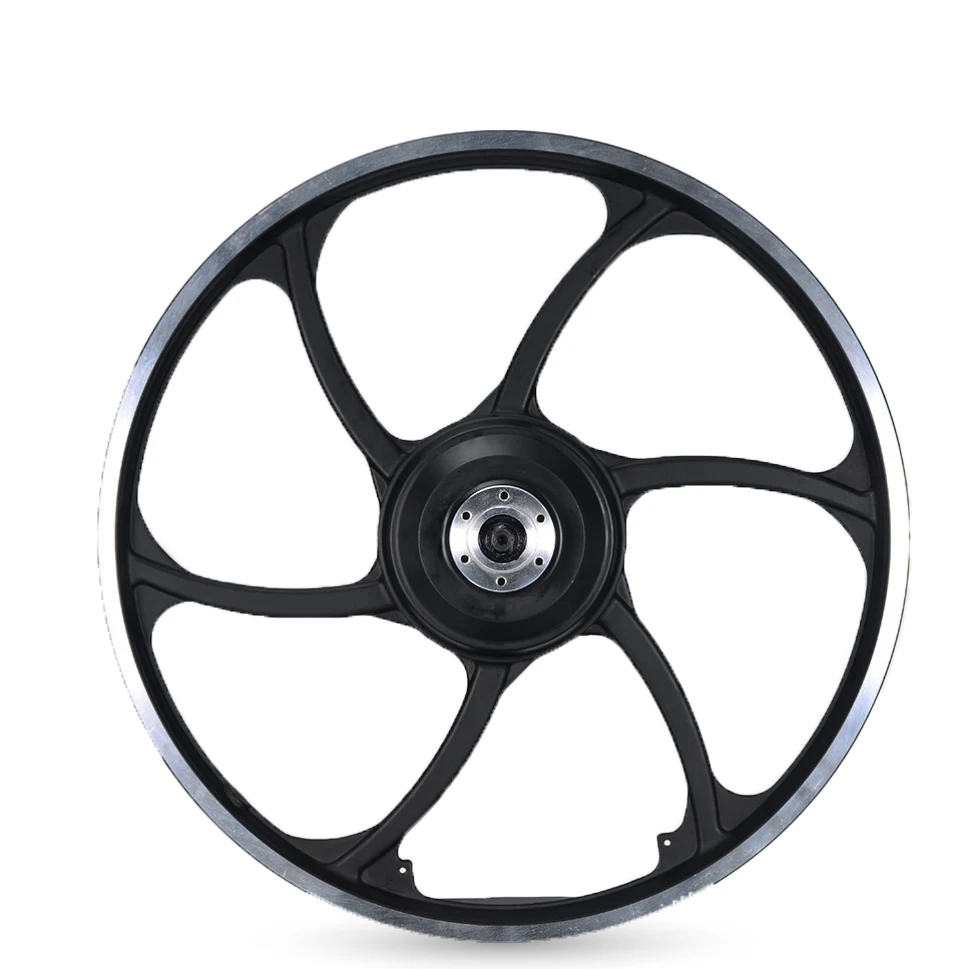

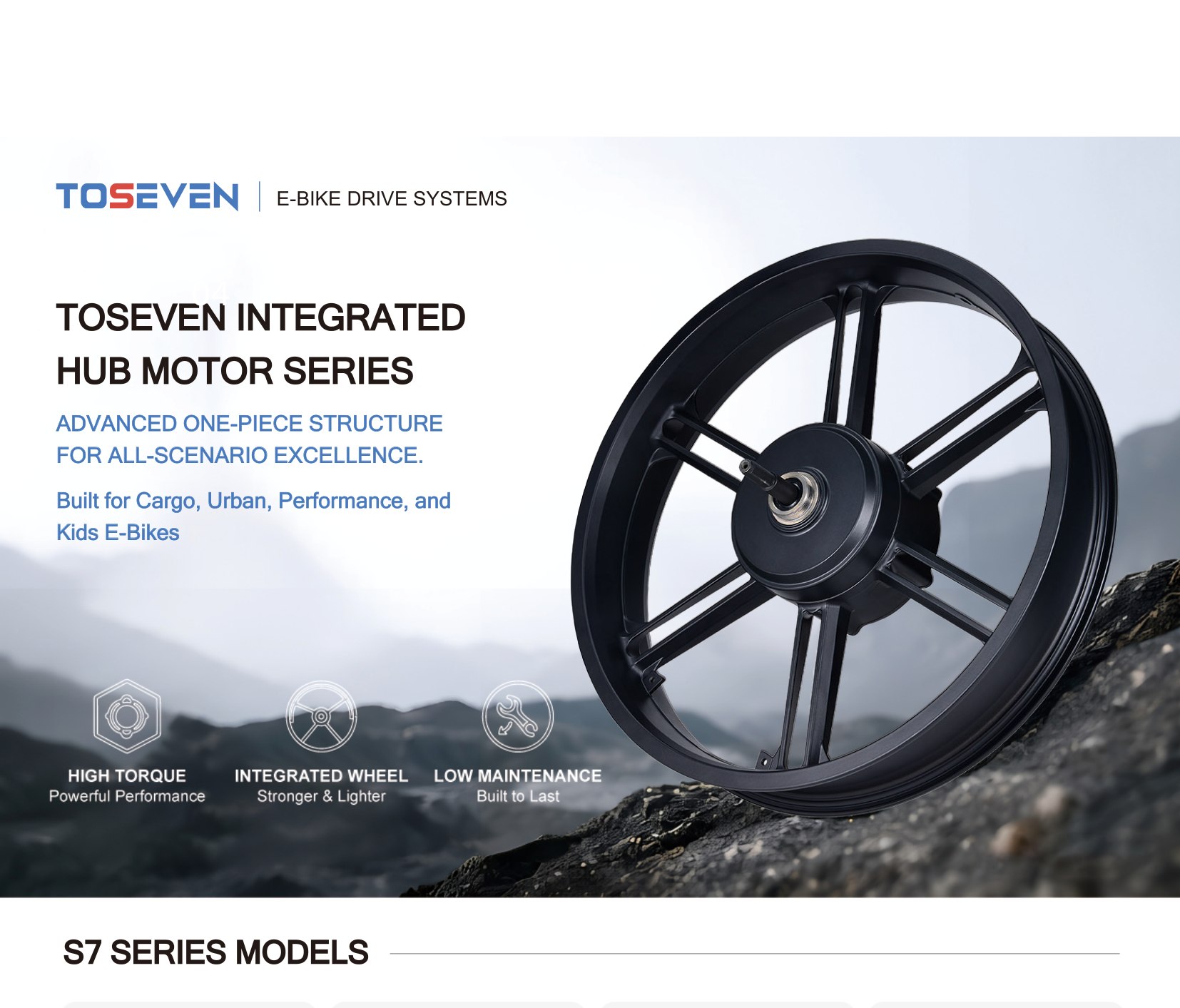

TOSEVEN Integrated Hub Motor Series — S7 (Page 15)

S7 Series

S7-145YR(20)

Rear Hub

S7-175/190YR(20)

Rear Hub

S7-175YL(16)-M

Rear Hub

S7-175YL(20)-M

Rear Hub

O.L.D. (mm)	145	175 / 190	175 / 190	175 / 190
Rated Power (W)	350 - 500	350 - 750	350 - 750	350 - 750
Peak Torque (Nm)	65	85	85	85
Rated Voltage (V)	36 / 48	36 / 48	36 / 48	36 / 48
Housing Architecture	Universal	Universal	Universal	Universal
Wheel Size	20"	20"	16"	20"
Sprocket Interface	6 - 7 speed	6 - 7 speed	6 - 7 speed	6 - 7 speed
Max Speed (km/h)	45	50	40	50
Reduction Ratio	5:1 / 5.2:1	5:1 / 5.2:1	5:1 / 5.2:1	5:1 / 5.2:1
Weight (kg)	4.9	6.6	4.5	5.6

S7 Series Models

Toseven Integrated Hub Motor Series Advanced One-Piece Structure For All-Scenario Excellence. Built for Cargo, Urban, Performance, and Kids E-Bikes 04 12 High Torque Powerful Performance Integrated Wheel Stronger & Lighter Low Maintenance Built to Last Page footer badge

C7 Lightweight Magnesium Rim Series (Page 16)

C7 Series

C7-135Y(14')
DR-M

Rear Hub

C7-135Y(16')
DR-M

Rear Hub

C7-145Y(16')
XR-M

Rear Hub

C7-145Y(20')
XR-M

Rear Hub

C7-175XR(20")
XR-M4.0

Rear Hub

O.L.D. (mm)	135	135	145	145	175
Rated Power (W)	250 - 350	250 - 350	250 - 350	250 - 350	250 - 400
Peak Torque (Nm)	47	47	47	47	47
Rated Voltage (V)	24 / 36 / 48	24 / 36 / 48	24 / 36 / 48	24 / 36 / 48	24 / 36 / 48
Housing Architecture	Universal	Universal	Universal	Universal	Universal
Wheel Size	14"	16"	16"	20"	20"
Sprocket Interface	Single	Single	6 - 7 speed	6 - 7 speed	6 - 7 speed
Max Speed (km/h)	32	35	35	40	40
Reduction Ratio	4.43 / 5.16:1	4.43 / 5.16:1	4.43 / 5.16:1	4.43 / 5.16:1	4.43 / 5.16:1
Weight (kg)	3.3	3.4	3.4	3.4	4

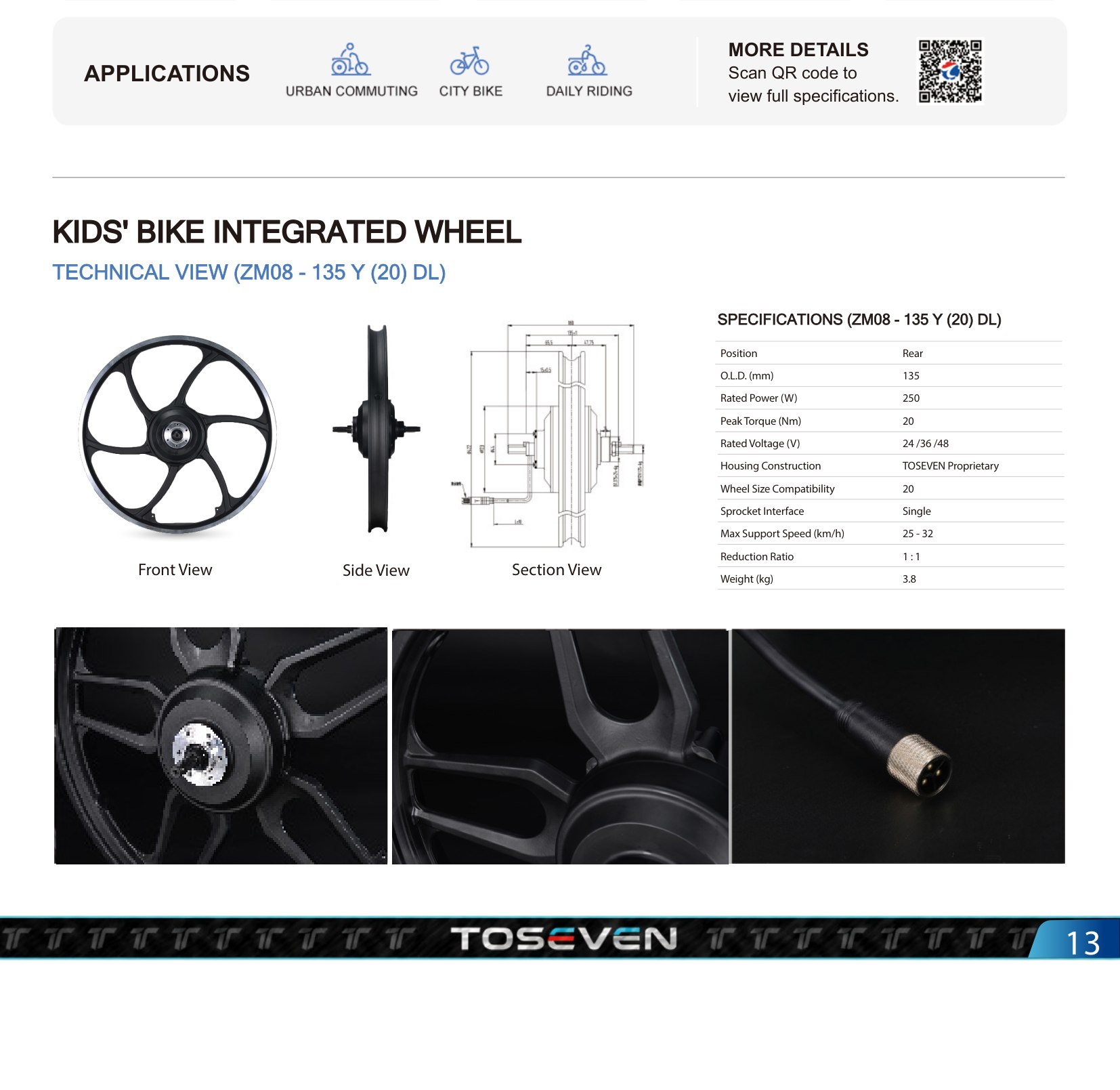

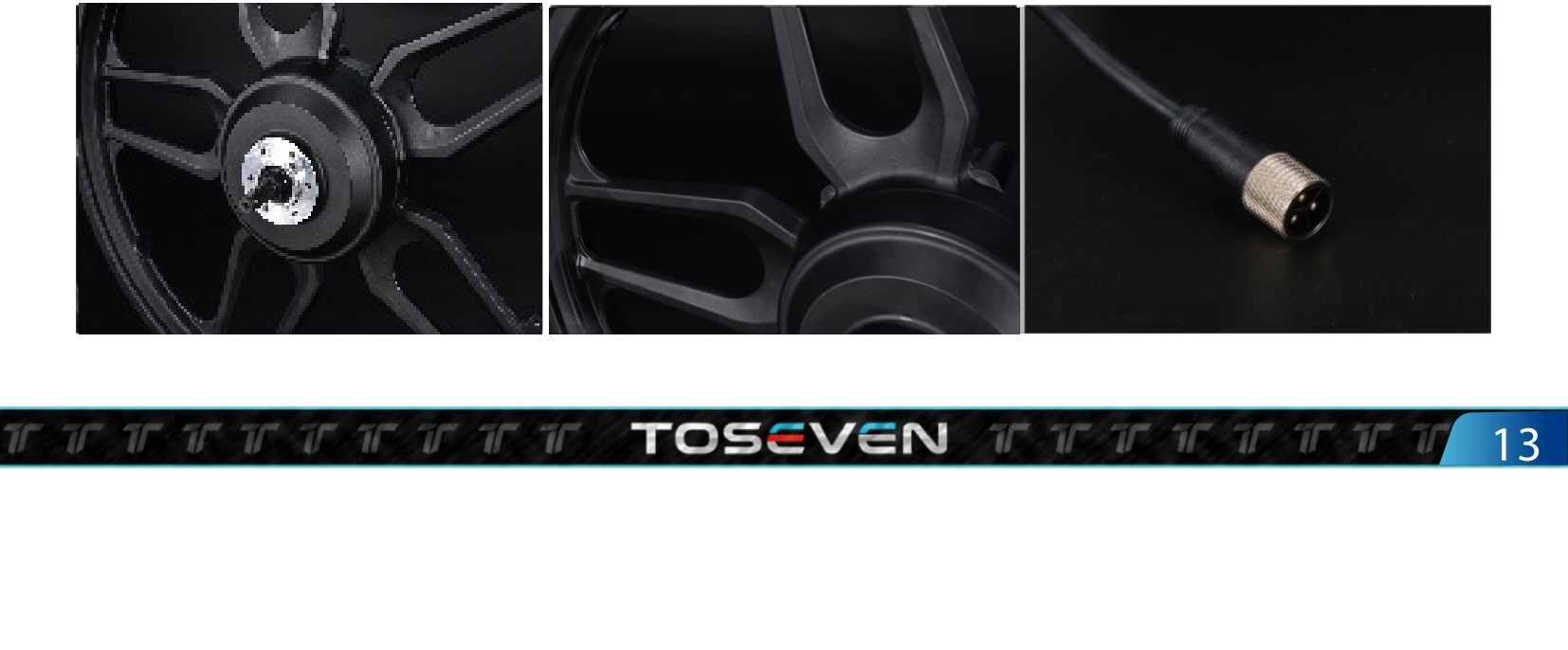

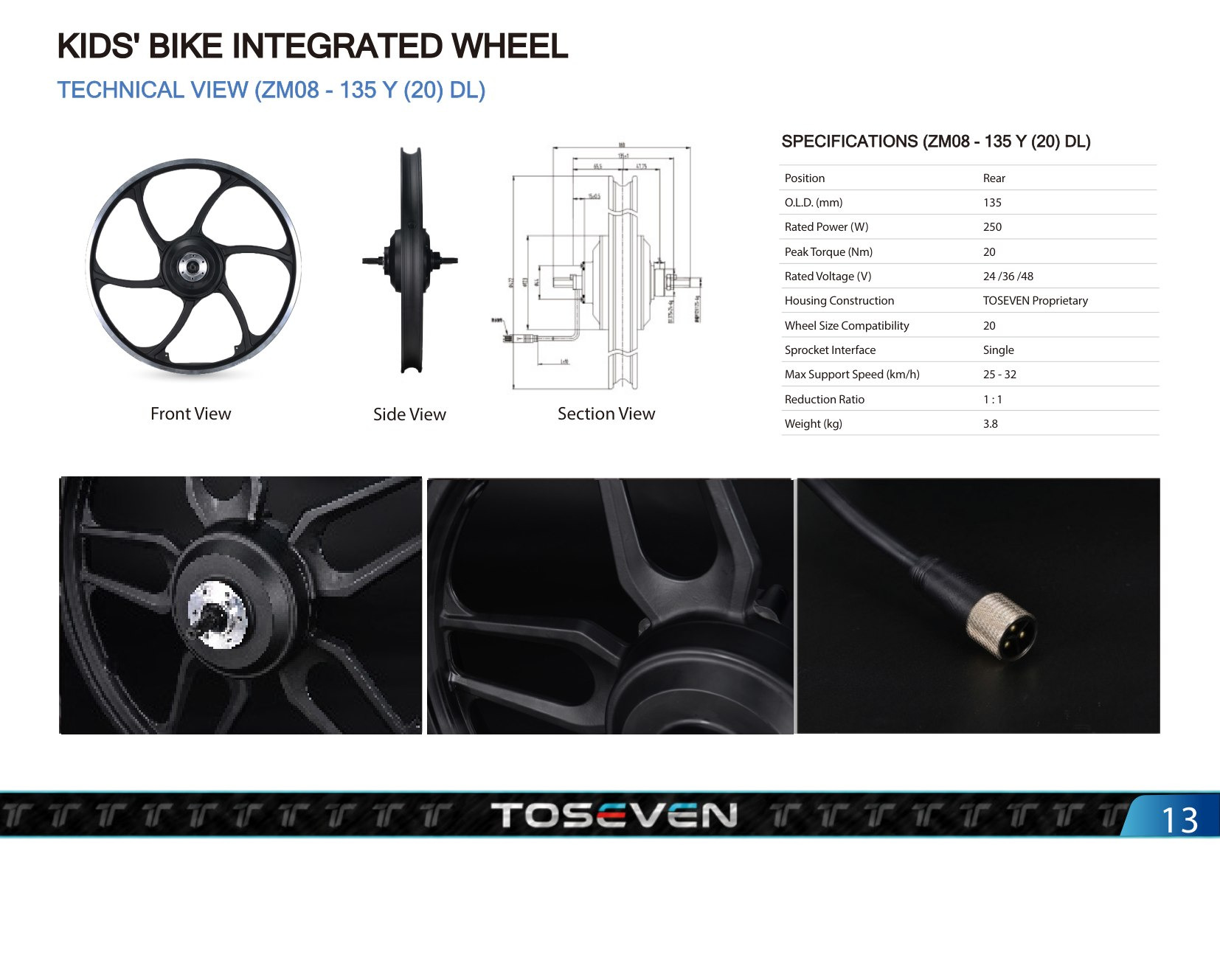

Technical View (ZM08 - 135 Y (20) DL)

Kids' Bike Integrated Wheel Section View Front View Side View 13 TOSEVEN

Specifications (ZM08 - 135 Y (20) DL)

Position Rear

O.L.D. (mm) 135

Rated Power (W) 250

Peak Torque (Nm) 20

Rated Voltage (V) 24 /36 /48

Housing Construction TOSEVEN Proprietary

Wheel Size 20”

Sprocket Interface Single

Max Speed (km/h) 25 - 32

Reduction Ratio 1 : 1

Weight (kg) 3.8

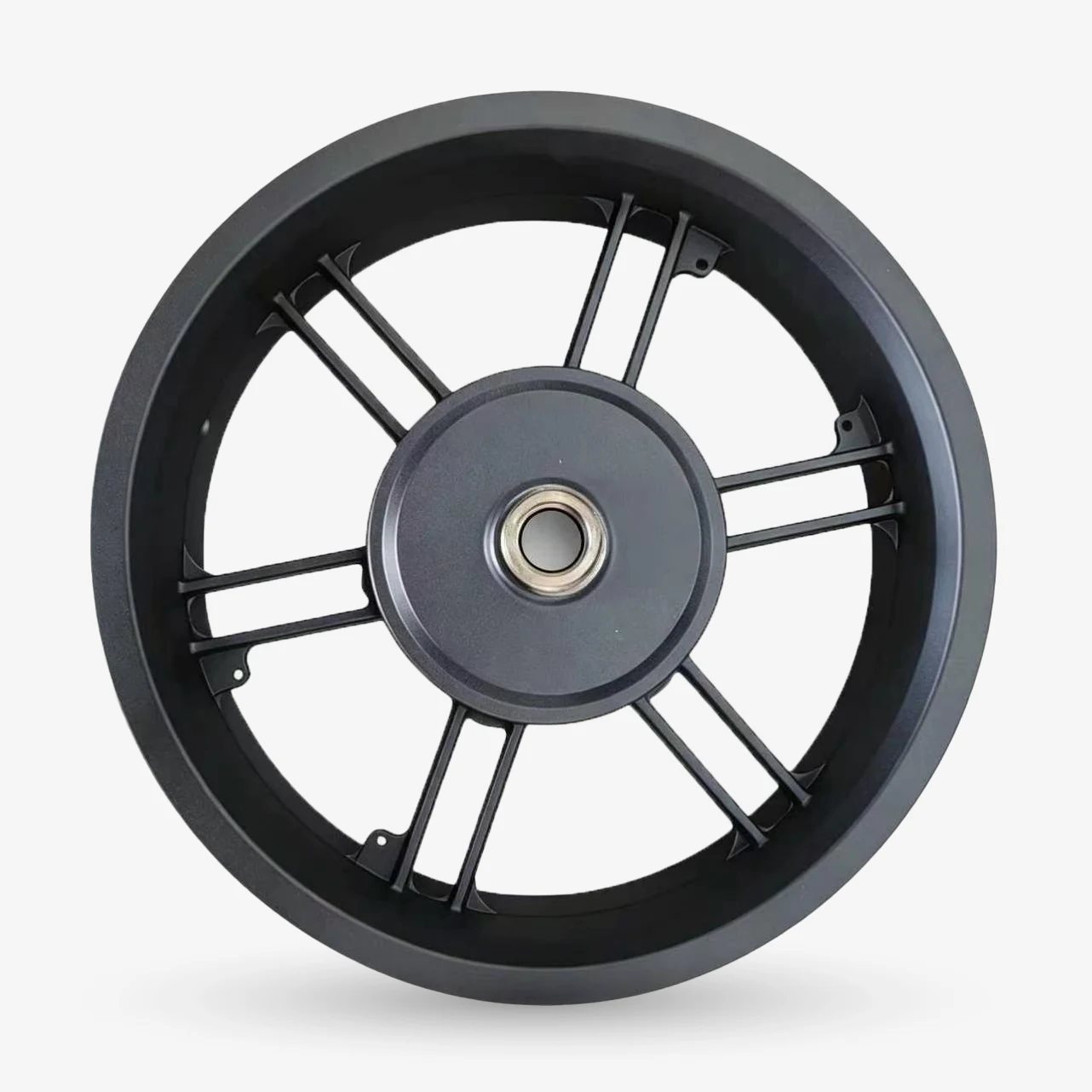

C7 Lightweight Magnesium Rim Series

Lightweight integrated wheel for urban & performance e-bikes

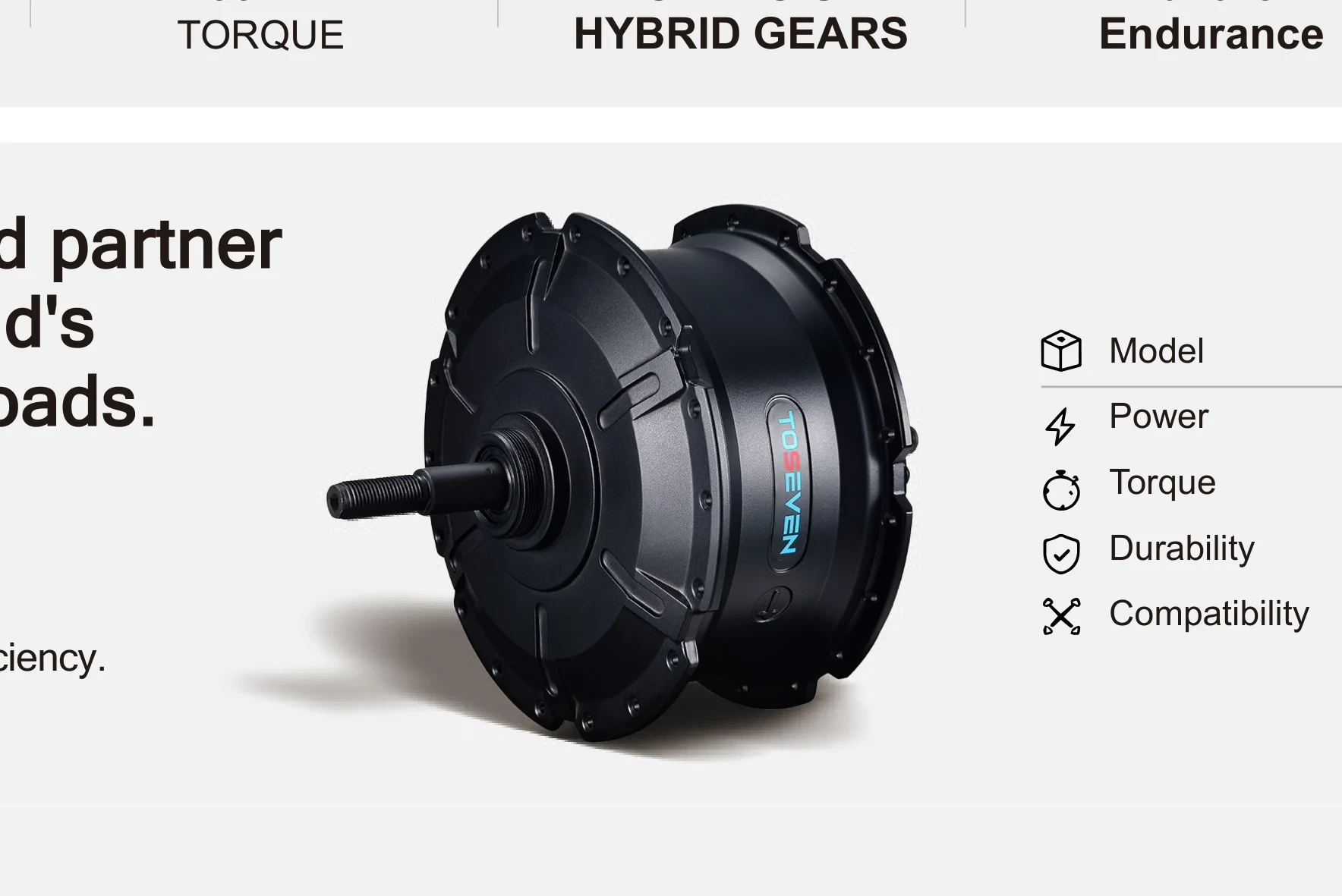

Rated Power 750W / 1000W / 1200W 100 Nm Torque Low-Noise Hybrid Gears Built for Endurance Your trusted partner On the world's Toughest roads. From New York to Amsterdam, redefines delivery efficiency. 16 14 Heavy Duty Performance For Global Delivery Heroes. The T7-175/190XL Motor: Specifically engineered for demanding Urban routes. Unstoppable power When and where you need it. Urban Mobility Solution For Global Cities: New York, San Francisco, Berlin, Paris, and Amsterdam. Compliance Check: Motor Compliance Compliant with UL28496 and local safety standards Fully Certified: EN15194 / CE / RoHS Tested For Safety. Built For Revenue. Dust Water TOSEVEN

ModelPowerTorqueDurabilityCompatibilityT7-175/190XL750W / 1000W /1200W100NmLow-noise hybridgears & IP6520"/26”/29"/700C Page footer badge

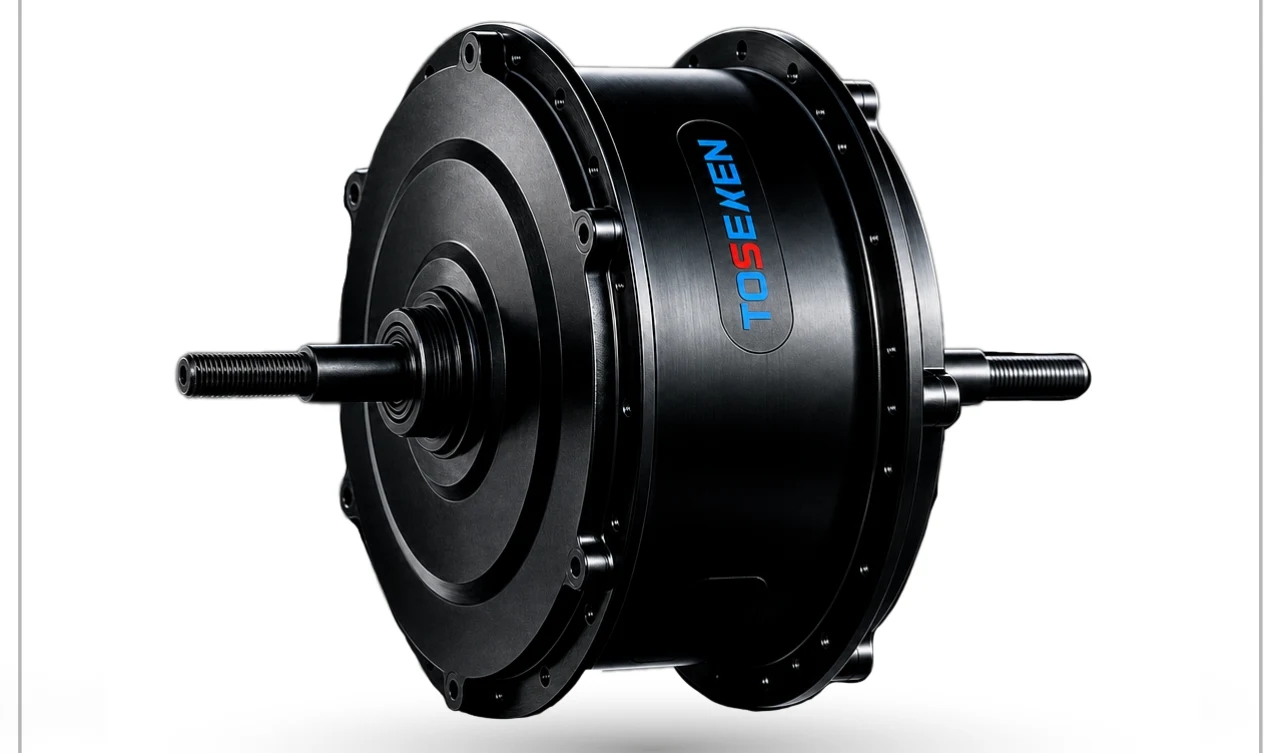

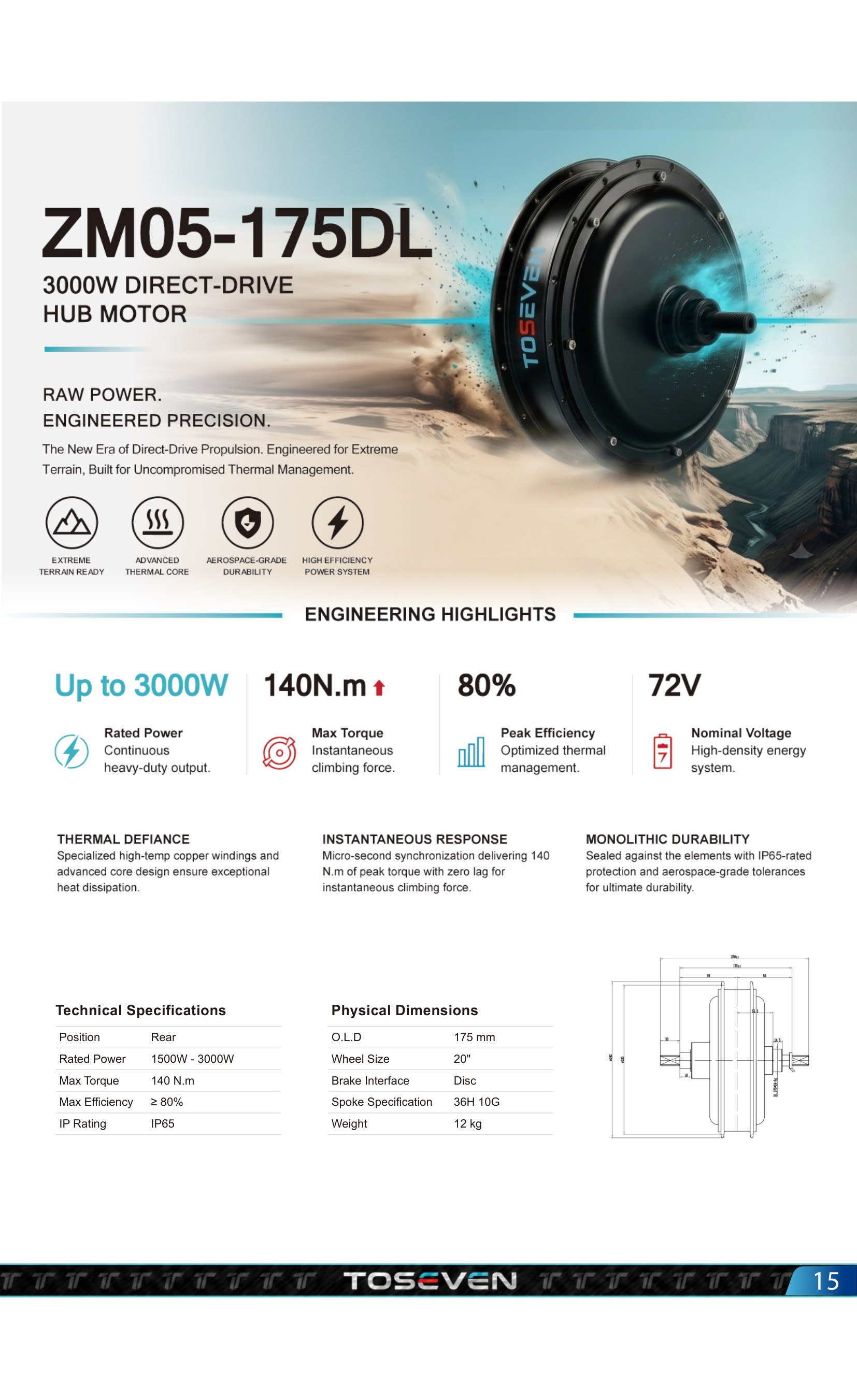

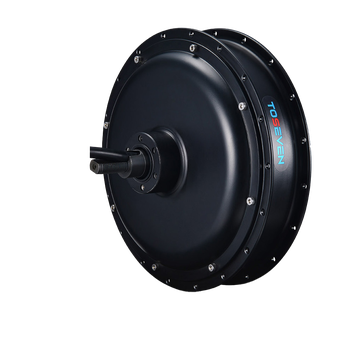

ZM05-175DL 3000W Direct-Drive Hub Motor (Page 18)

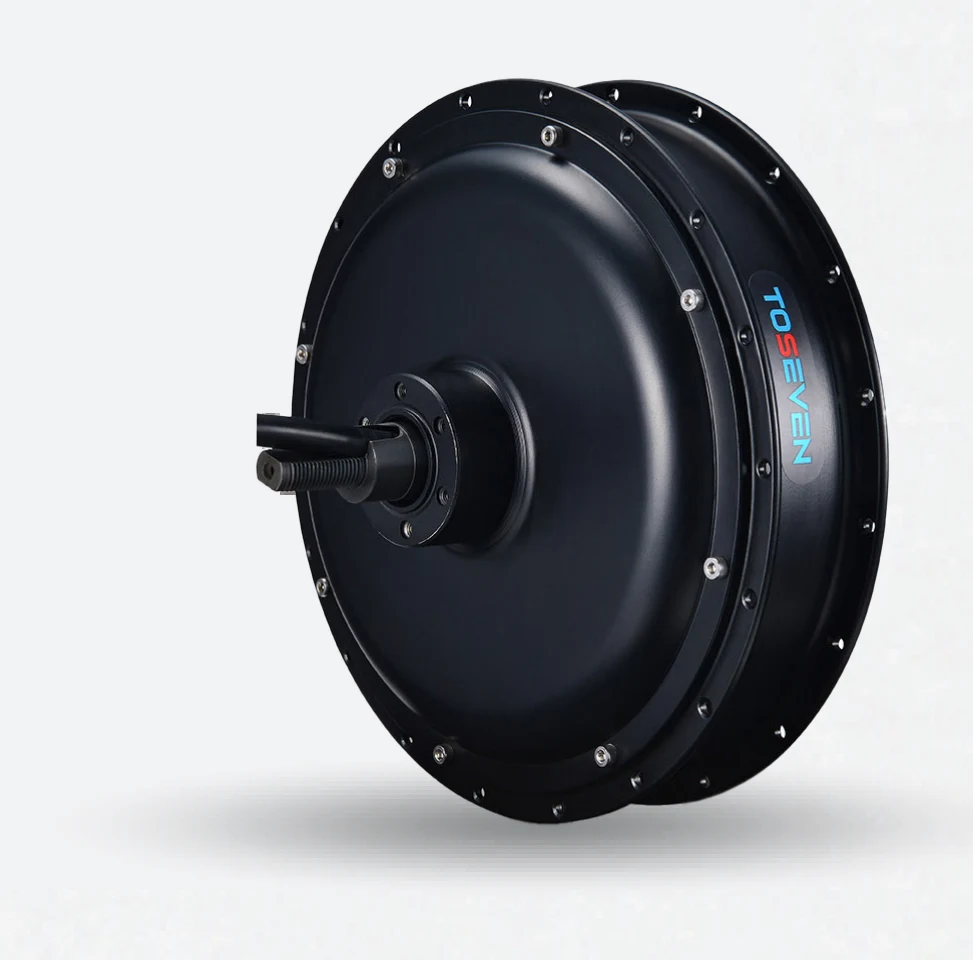

15 ZM05-175DL 3000W Direct-Drive Hub Motor Raw Power. Engineered Precision. The New Era of Direct-Drive Propulsion. Engineered for Extreme Terrain, Built for Uncompromised Thermal Management. Extreme Terrain Ready Advanced Thermal Core Aerospace-Grade Durability High Efficiency Power System Engineering Highlights Up to 3000W 140N.m 80% 72V Rated Power Continuous heavy-duty output. Max Torque Instantaneous climbing force. Peak Efficiency Optimized thermal management. Nominal Voltage High-density energy system. TOSEVEN

Technical Specifications: Physical Dimensions:

Position Rear

Rated Power 1500W - 3000W

Max Torque 140 N.m

Max Efficiency ≥ 80%

IP Rating IP65

O.L.D 175 mm

Wheel Size 20"

Brake Interface Disc

Spoke Specification 36H 10G

Weight 9 kg

Thermal Defiance

Specialized high-temp copper windings and advanced core design ensure exceptional heat dissipation.

Instantaneous Response

Micro-second synchronization delivering 140 N.m of peak torque with zero lag for instantaneous climbing force.

Monolithic Durability

Sealed against the elements with IP65-rated protection and aerospace-grade tolerances for ultimate durability.

Diagram:

Tricycle Bike Hub Motors — Q7 Series (Page 19)

O.L.D. (mm)

Rated Power (W)

Peak Torque (Nm)

Rated Voltage (V)

Housing Construction

Wheel Size

Sprocket Interface

Max Speed (km/h)

Reduction Ratio

Weight (kg)

156

350 - 500

65

36 / 48

Universal Compatibility

16 or 20

6 - 7 speed

32

5:1

3.5

156

350 - 500

65

36 / 48

Universal Compatibility

16 or 20

Single

32

5:1

3.5

135

350 - 500

65

36 / 48

Universal Compatibility

20 / 26 / 700C / 29

Single

45

5:1

3.5

Q7 - 156 XL Rear Hub Q7 - 156 SL Rear Hub Q7 - 135DR Rear Hub 18 16 04 Tricycle Bike Powerful. Stable. Dependable. Max Speed 32 km/h Power 500W Hub Motor TOSEVEN Tricycle Bike Page footer badge

O.L.D. (mm)

Rated Power (W)

Peak Torque (Nm)

Rated Voltage (V)

Housing Construction

Wheel Size

Sprocket Interface

Max Speed (km/h)

Reduction Ratio

Weight (kg)

100

250

20

24 / 36 / 48

TOSEVEN Proprietary

8

-

10 - 25

5.61 : 1

2.4

100

250

35

24 / 36 / 48

TOSEVEN Proprietary

8

-

5 - 20

12.51 : 1

2.8

Wheelchair Motor 19 A7 - 100 YL - 8 Middle Hub R7 Front Hub 17 Wheelchair Motor Engineered for Freedom. Built for Independence. Max Speed 25 km/h Power 250W Hub Motor TOSEVEN Page footer badge

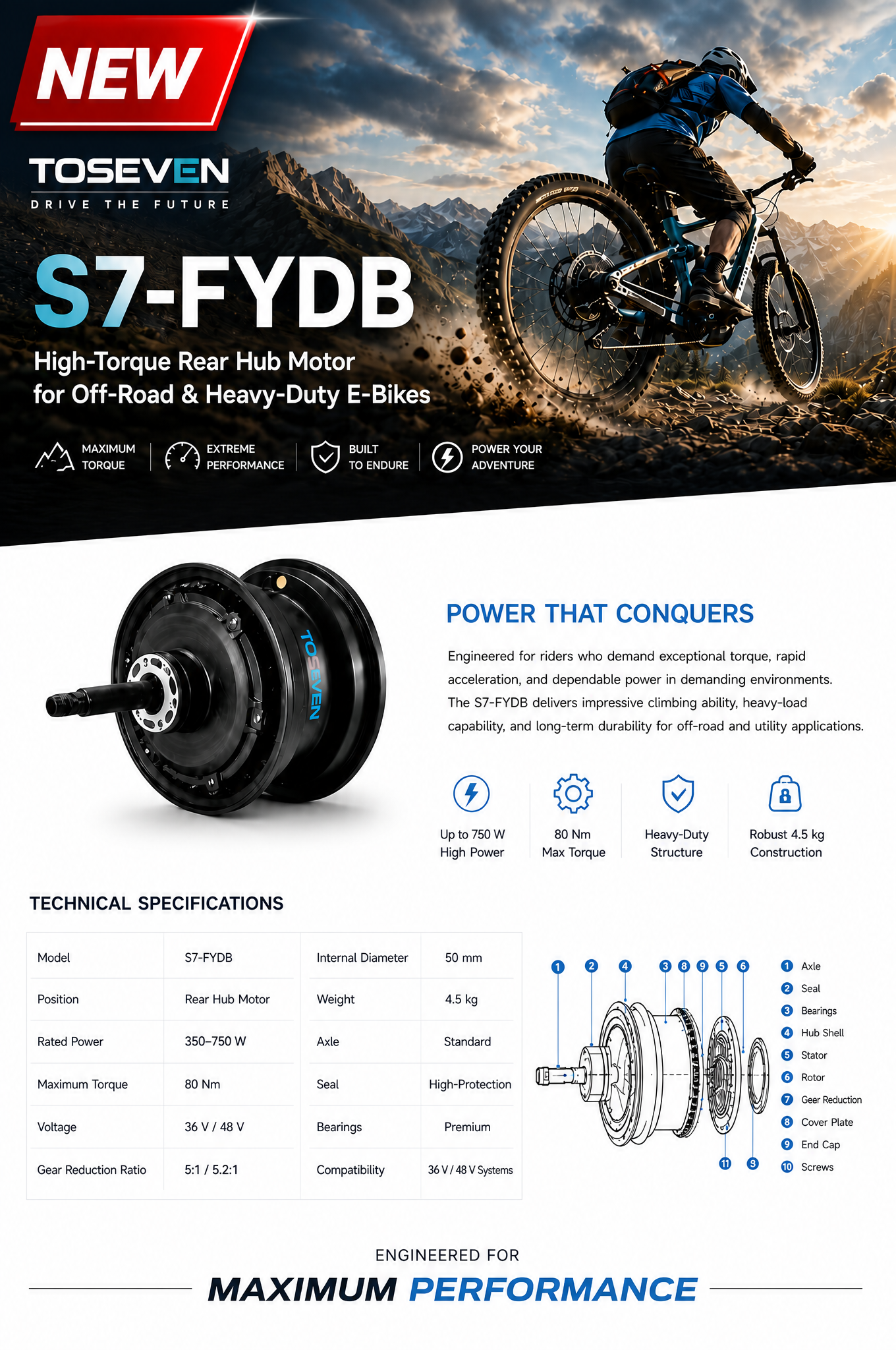

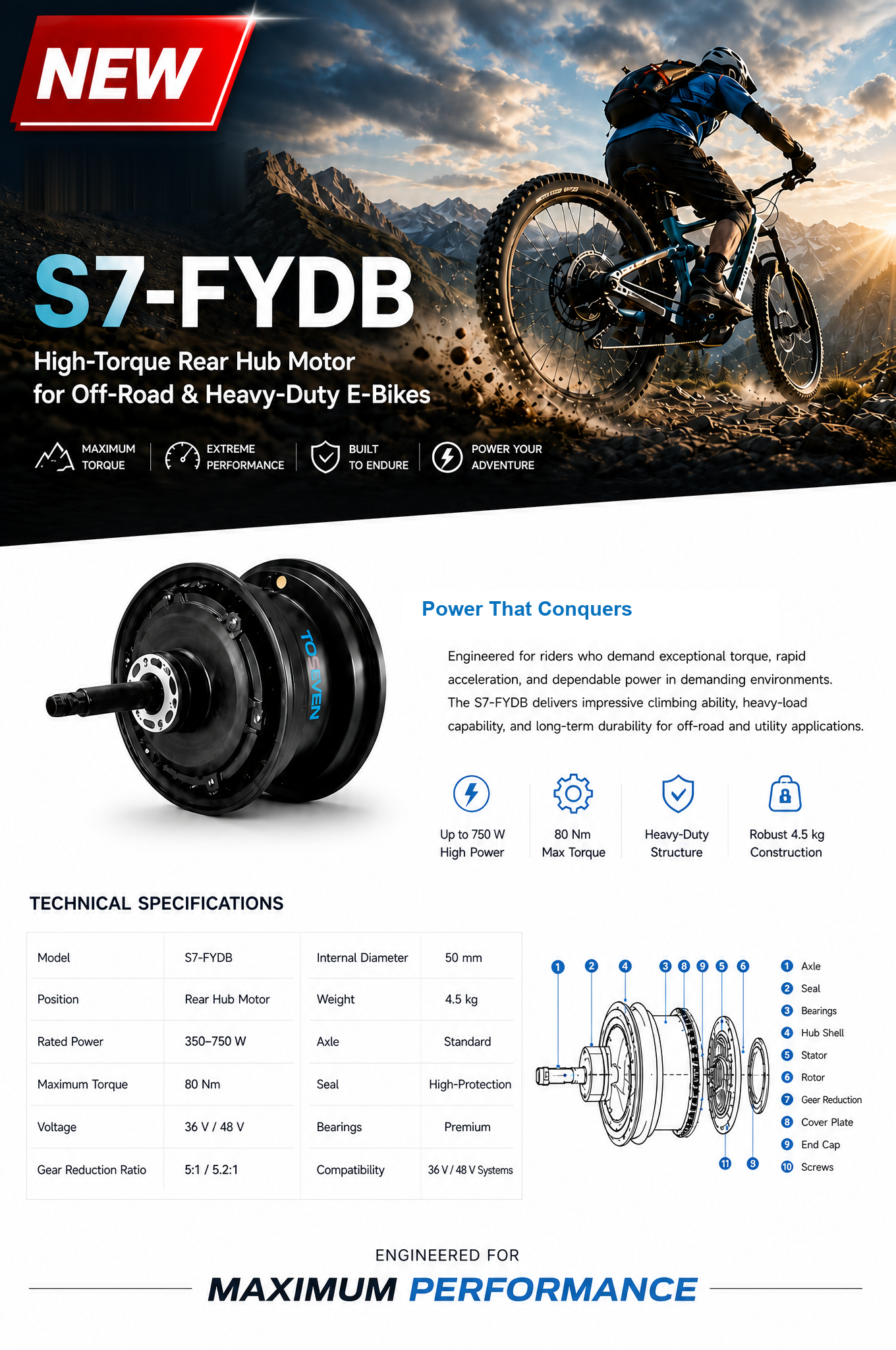

S7-FYDB High-Torque Rear Hub Motor (Page 21)

KEY DIMENSIONS (mm)

122.4 Overall width 85 Shell outer width 68 Shell inner width 54 Axle extension 37.5 Flat axle section 22 Threaded length 2 Flange step ø180 Shell diameter ø44 Spigot diameter ø19.8 Axle diameter (A-A) 16 -0.05/-0.15 Flat width (tol.) M16×1.5 Axle thread NEW Drive The Future S7-FYDB High-Torque Rear Hub Motor for Off-Road & Heavy-Duty E-Bikes Maximum Torque Extreme Performance Built To Endure Power Your Adventure Power That Conquers Engineered for riders who demand exceptional torque, rapid acceleration, and dependable power in demanding environments. The S7-FYDB delivers impressive climbing ability, heavy-load capability, and long-term durability for off-road and utility applications. Up to 750 W High Power 80 Nm Max Torque Heavy-Duty Structure Robust 4.5 kg Construction Technical Specifications:

Model	S7-FYDB
Position	Rear Hub Motor
Rated Power	350–750 W
Maximum Torque	80 Nm
Voltage	36 V / 48 V
Gear Reduction Ratio	5:1 / 5.2:1

Internal Diameter	50 mm
Weight	4.5 kg
Axle	Standard
Seal	High-Protection
Bearings	Premium
Compatibility	36 V / 48 V Systems

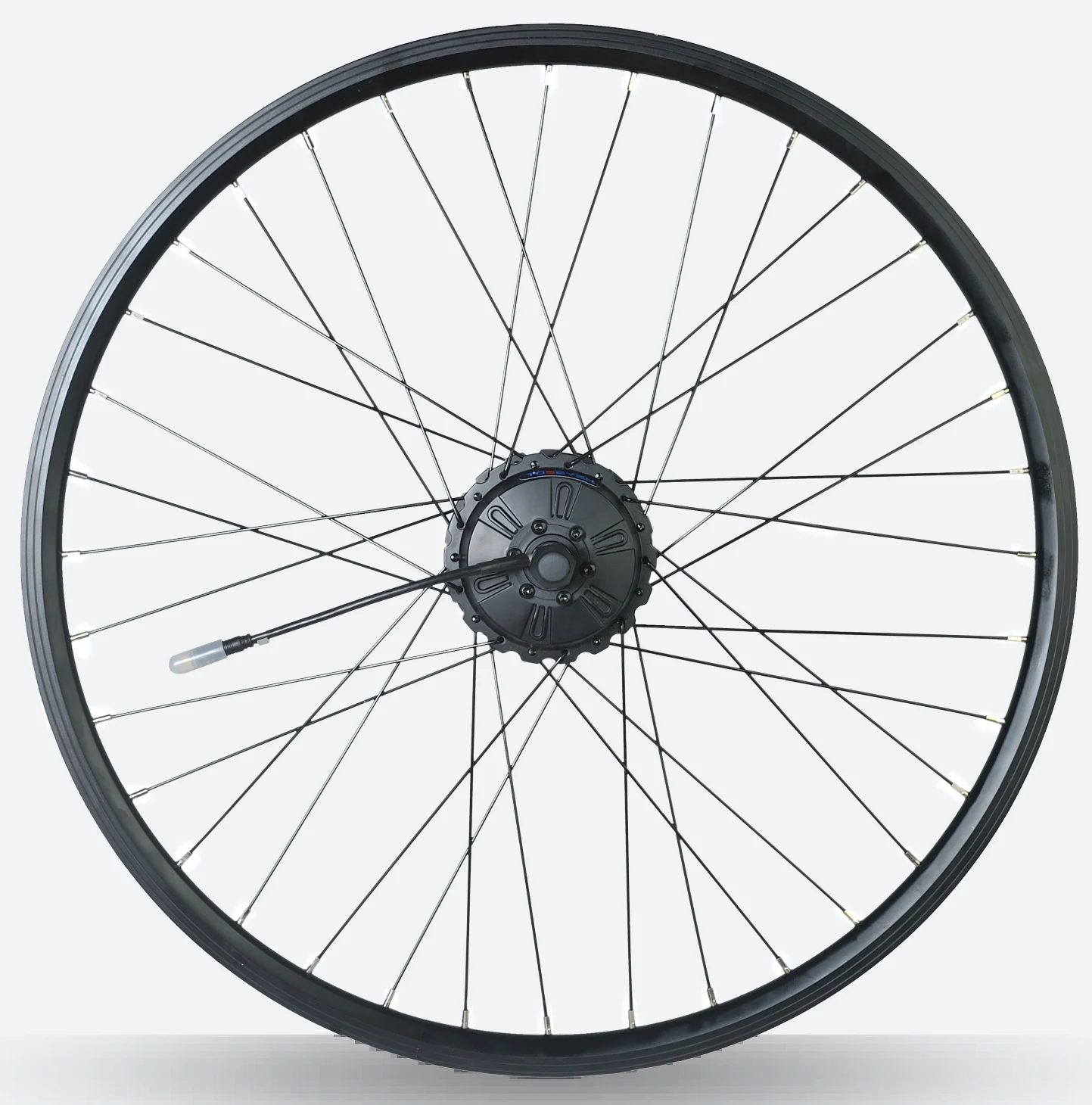

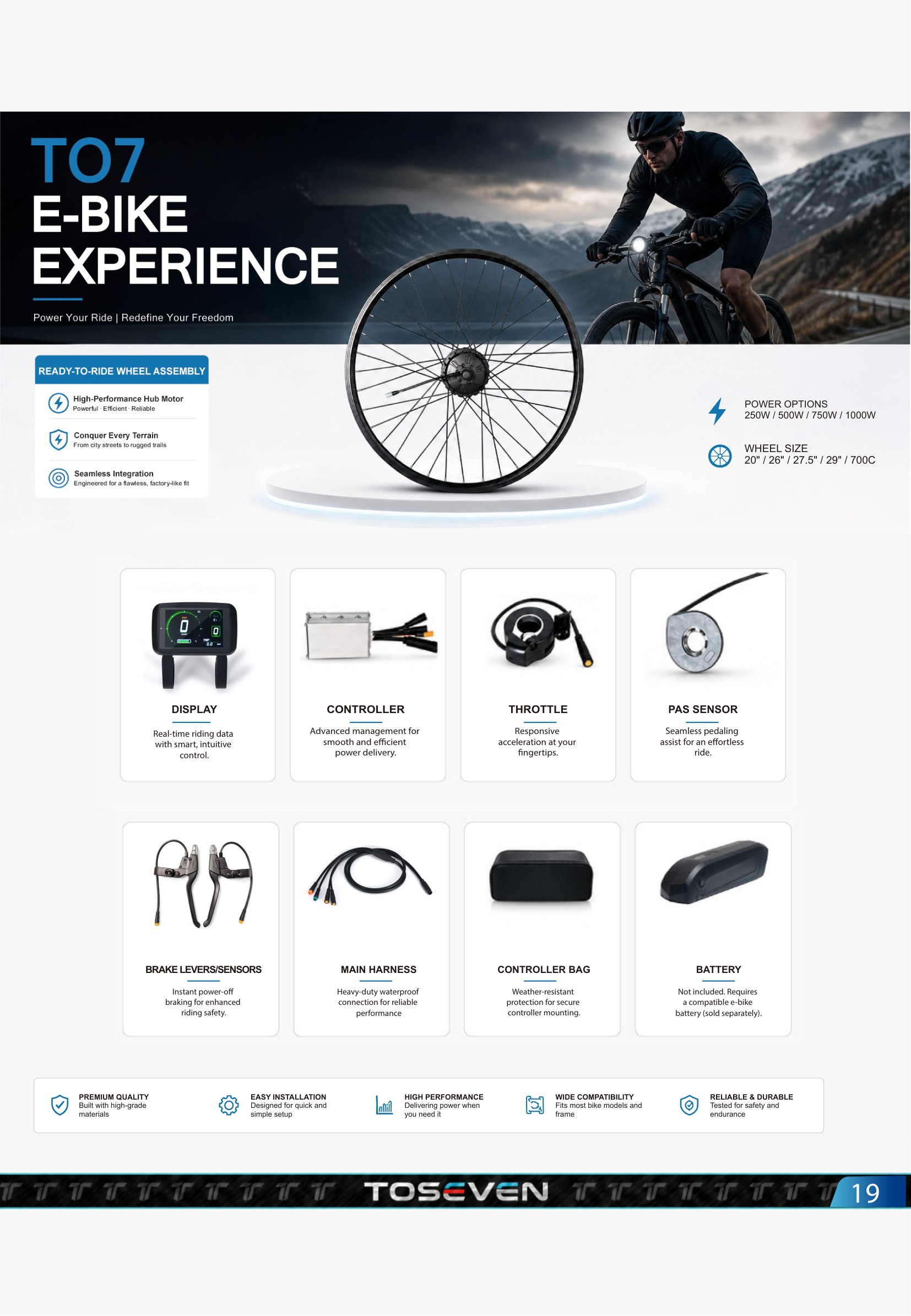

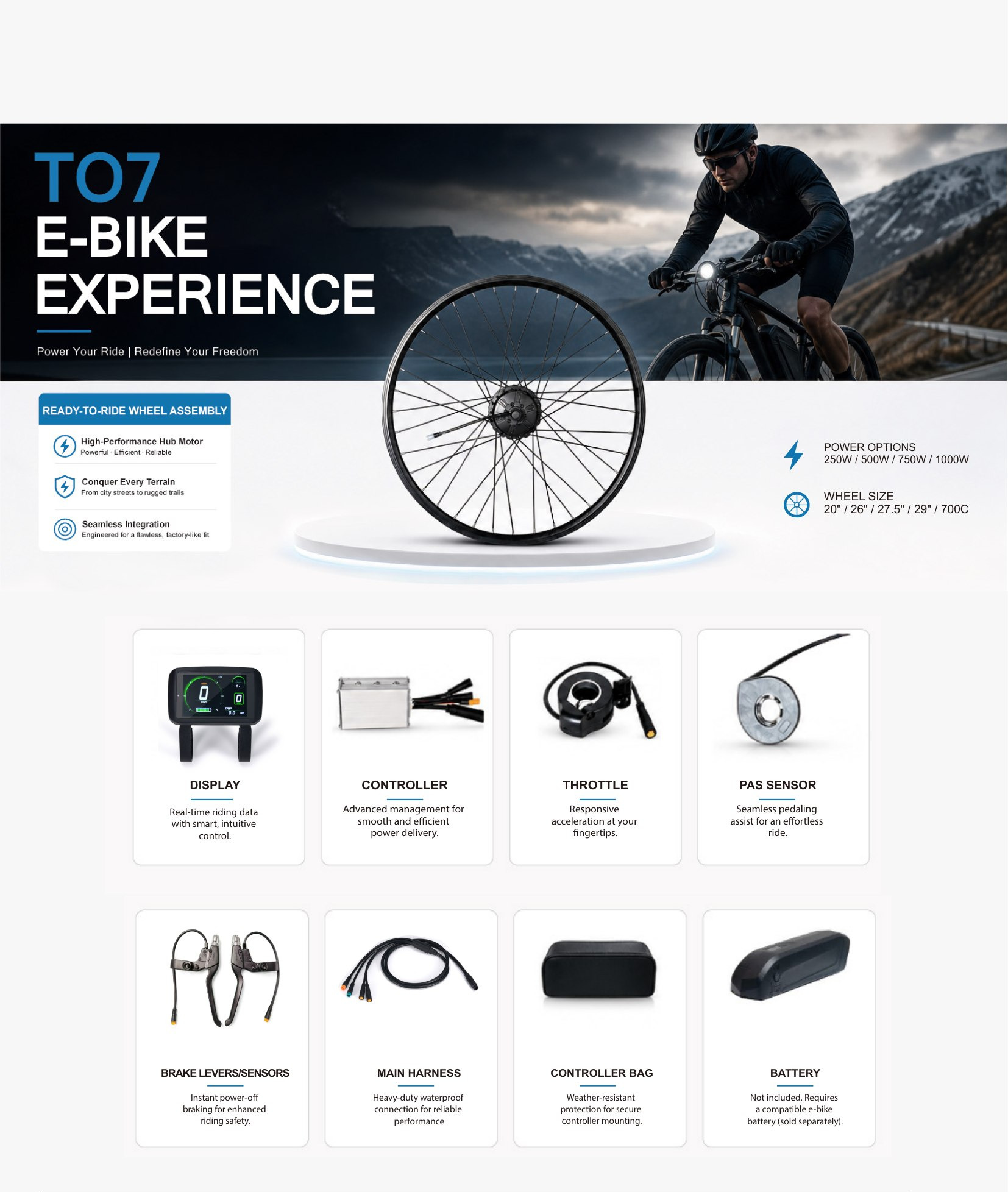

Power Options 250W / 500W / 750W / 1000W Wheel Size 20" / 26" / 27.5" / 29" / 700C Display Real-time riding data with smart, intuitive control. Controller Advanced management for smooth and eﬃcient power delivery. Throttle Responsive acceleration at your ﬁngertips. PAS Sensor Seamless pedaling assist for an eﬀortless ride. Main Harness Heavy-duty waterproof connection for reliable performance Controller Bag Weather-resistant protection for secure controller mounting. Battery Not included. Requires a compatible e-bike battery (sold separately). Brake Levers/Sensors Instant power-oﬀ braking for enhanced riding safety. 19 TO7 E-BIKE EXPERIENCE Power Your Ride | Redefine Your Freedom Ready-To-Ride Wheel Assembly High-Performance Hub Motor Powerful · Efficient · Reliable Conquer Every Terrain From city streets to rugged trails Seamless Integration Engineered for a flawless, factory-like fit TOSEVEN Page 18 footer badge

Smart Displays — T24 / LCD135C / T154 / M15 (Page 23)

20 Smart. Sleek. Synced. One Screen, Infinite Possibilities. Battery Level Speed (MAX|AVG) PAS Level Walk Assist Mode Time TOSEVEN TOSEVEN

Model

T24

LCD135C

Display

2.4-inch TFT color

3.5-inch TFT color

Button Type

Silicone Buttons

Mounting Bracket

Detachable Dual-Mount

Operating Voltage (VDC)

15-60

Waterproof Rating

IP65

Operating Temperature (°C)

-20 ~ 45° C

Model

T154

M15

Display

1.54-inch TFT color

Button Type

Silicone Buttons

Mounting Bracket

--

Operating Voltage (VDC)

15-52

Waterproof Rating

IP65

Operating Temperature (°C)

-20 ~ 45° C

to7motor.com info@to7motor.com +86 512 6638 5874 Scan for full technical database All specifications subject to change. For detailed technical datasheets, scan QR code or visit to7motor.com @2026-2027 Toseven. All Rights Reserved. Suzhou Toseven New Energy Technology Co., Ltd @ to7_official to7motor.com info@to7motor.com +86 512 6638 5874 Your Power. Your Journey. Our Passion.
